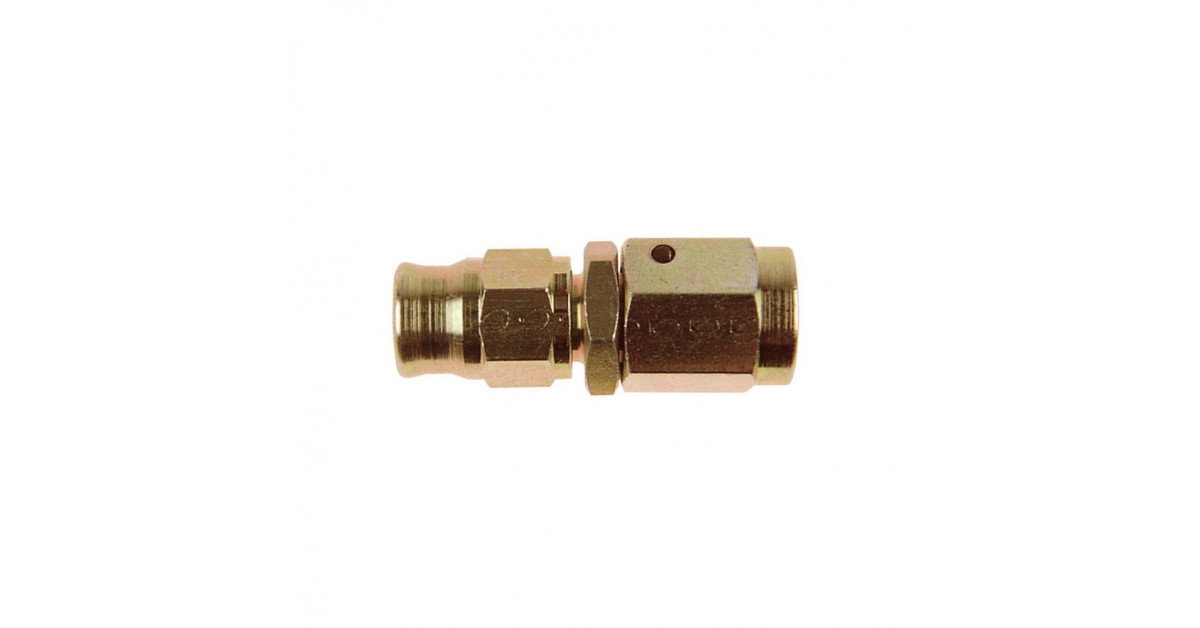

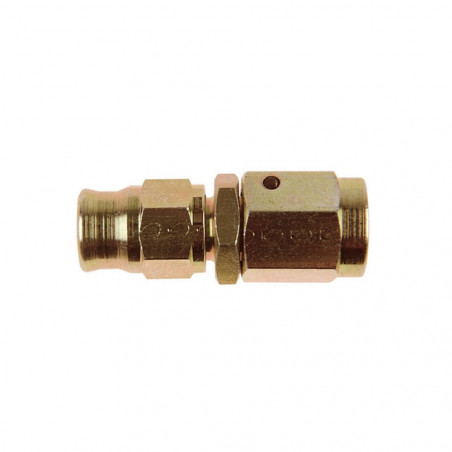

Goodridge 3/8X24 straight female fitting 600 serie

Type S Tubing Teflon tube Series 600 DASH 3

The 1 mm thick Teflon tube with stainless steel braid can withstand temperatures ranging from -56°C to 232°C. Teflon can withstand high stresses and is compatible with all types of fluids used: gasoline, diesel, brake fluids and antifreeze. The rubber of the type S hoses resists high pressures without any alteration.

High speed, constant rapid gear changes and heavy braking put great strainson competition hydraulic systems, where failure can be disastrous. 600 series hose strongly resists expansion under high pressure and temperature, provides consistent brake and clutch pedal pressure giving firmer and more efficient operation without that spongy feeling.

Excellent for all 4 and 2 wheel braking applications whether for the circuit or road.

Inside diameter: 3.5 mm

Outside diameter: 6.45 mm

Working pressure (bar) : 290

Minimum burst pressure (bar) : 870

Weight (kg/m) : about 0.06

Less detail

With a -03 Dash hose, it offers optimum compatibility with a variety of piping systems.

Its 10mm eye diameter guarantees a precise, secure fit.

Made from zinc-plated carbon steel, this banjo ensures exceptional strength and durability, even under the most demanding conditions.

Less detail

With a length under head of 20mm, this screw offers additional stability in your hydraulic systems.

Precision-engineered for optimum performance, this screw guarantees safe, reliable connections.

Less detail

Ø Int 10.3mm / Ø Ext 14.8mm

Less detail

Made from high-quality steel, this fitting is designed to withstand the rigors of racing and performance environments.

With a 3/8x24 thread and Dash 03 hose, it is specifically adapted to the requirements of 600 series hoses.

Less detail

This Goodridge 90° steel swept tube female concave seat is compatible with 600 Series hose.

Thread: 3/8x24

Hose: Dash 03

Material: Zinc plated carbon steel

Less detail

Compatible with Series 600 hoses, it ensures a perfect fit for your installation needs.

Featuring a 3/8x24 thread and Dash 3 hose, this fitting offers optimum compatibility for easy, safe installation.

Less detail

Male 3/8x24 JIC convexe / Male 7/16x20 Concave

Less detail

Adaptateur en acier GOODRIDGE

De Mâle 3/8X24 / Mâle 10x100

Less detail

This fitting is compatible with Series 600 hoses and offers a secure, leak-proof connection.*

Featuring a 3/8x24 thread and Dash 3 hose, it ensures easy, reliable installation. Made from zigzagged carbon steel, this fitting guarantees exceptional corrosion resistance and durability, even in harsh environments.

Less detail
