Goodridge Eco Blue Hose Oil Dash 6

Aeroquip FD90 connectors are ideal for connecting and disconnecting non-permanent pressure sensors. They can withstand pressures of up to 7000 psi (482 bar).

These couplings are also used in the assembly required for fuel sampling as required by the FIA.



Technical data:



Type: about

Material: steel

Thread: NPTF 1/8x27 male

Seal: Buna

Use: Fuel/lubricant



Sold by unit

Less detail

Aeroquip FD90 connectors are ideal for connecting and disconnecting non-permanent pressure sensors. They can withstand pressures of up to 7000 psi (482 bar).

These couplings are also used in the assembly required for fuel sampling as required by the FIA.



Technical data:



Type: connector

Material: steel

Thread: NPTF 1/8x27 female

Seal: Buna

Use: Fuel/lubricant



Sold by unit

Less detail

This black rubber cap is compatible with Aeroquip FD90 fittings.

Less detail

Dash 6 adapter for Mano
Dash 6 fittings for connection
to a crimp circuit with 1 outlet
1/8 x 27 NPTF to screw on pressure gauge

Less detail

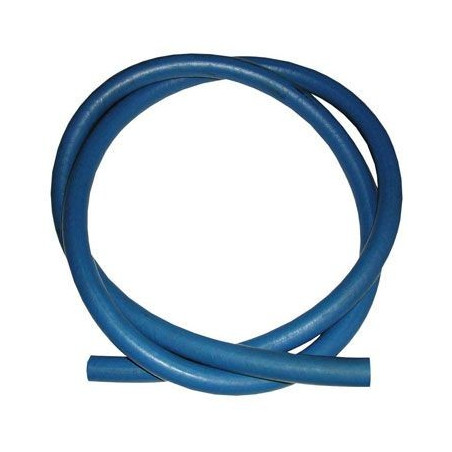

This Goodridge Dash 6 rubber hose is perfect for a fuel or oil use.

Inner diameter: 9.52mm

Outer diameter: 15.87mm

Operating pressure: 17bars

Mini burst pressure: 69bars

Bend radius: 76.2mm

Weight: 0.16kg/m

Temperature : -40°C to 100°C

Length: 1 linear meter

Less detail

This Goodridge aluminum straight JIC swivel female fitting is compatible with Series 536 pipes.

Thread: 9/16x18

Hose: Dash 06

Less detail

GOODRIDGE hydraulic adapter

From Male 9/16X18 / Male 1/8X27C

Less detail
