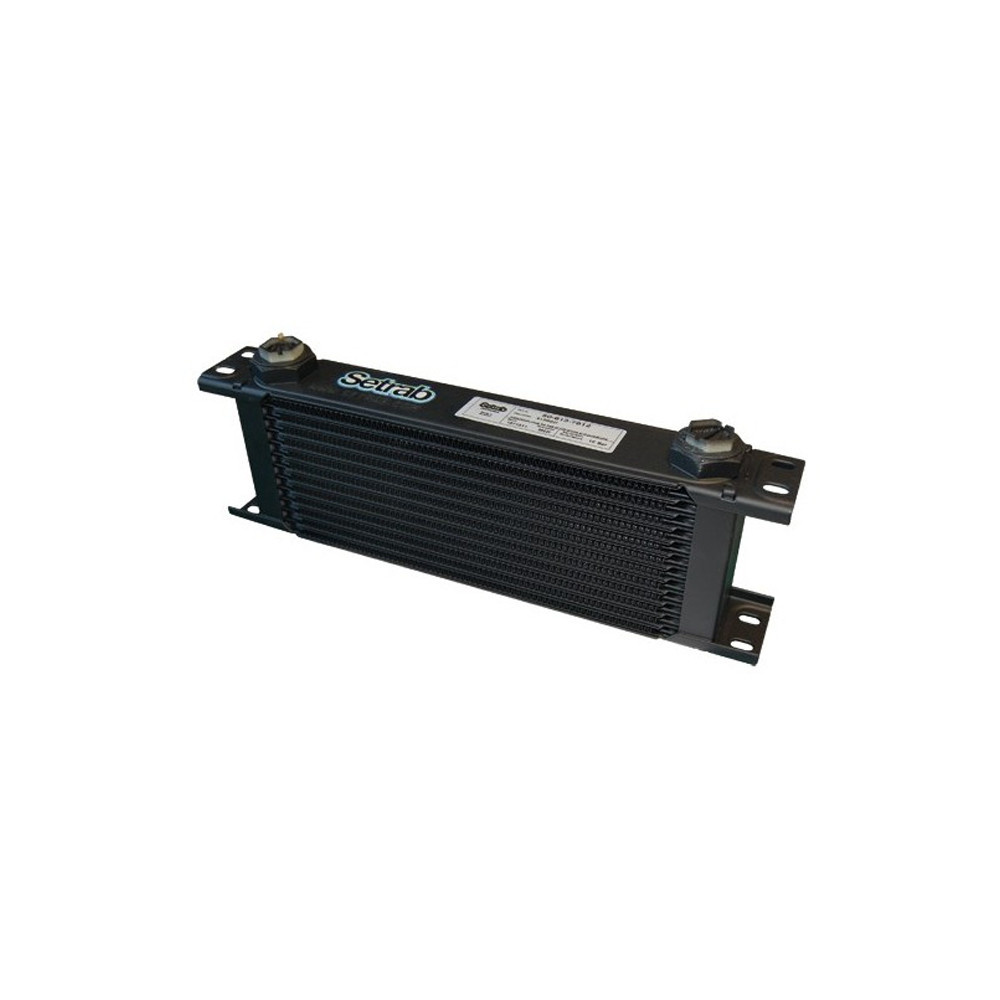

A vital part of any competition vehicle, the Setrab 6 Series aluminum oil cooler provides effective engine oil temperature control.

The best position for the oil cooler is in front of the water cooler in order to have sufficient air flow. In order not to impede the cooling of the water, it is essential to place the oil cooler against the water cooler (in front of or behind the water cooler depending on the position of the fan). This will not affect the cooling of the water.

Number of rows: 10
Height: 75mm
Capacity in liter: 0.19
Weight: 0.71kg
Female outlets: M22x150
Core width: 235mm
Operating pressure: 0-10bar
Max pressure: 12bar
Operating temperature: -40 to 150°C

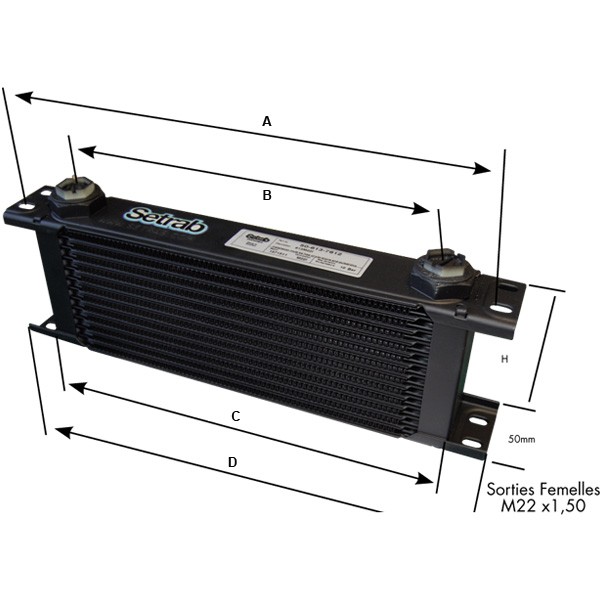

A: 310mm
B: 250mm
C: 283mm
D: 330mm
Width: 50mm

This Goodridge JIC Concave 90° swept tube is part of the most complete line of lightweight, reusable alloy hose fittings that are specifically designed to fit 200 and 210 series hose.
Its aerospace-grade, triple-seal, double O-ring nitrile design ensures a secure, leak-free connection every time.
All 236 and 336 series nipples are available in bright red and blue anodized and provide permanent alignment with 360 degree swivel ends.

Applications: fuel, oil, coolants, methanol, water.

Thread: JIC 7/8x14

Hose: Dash 10

Material: aluminum

DASH 10 nitrile hose (per m)

The N type hose has many advantages. Indeed, because of a double stainless steel protection, it resists better to pressure, vaccum and external shocks.

The internal nitrile composition allows the use of all types of fuels: gasoline, diesel, ethanol, nitromethane, oil, refrigerants...

Operating temperature : -49°C to +150°C

Inside diameter : 14.27 mm

Outside diameter : 20.24 mm

Working pressure (bar) : 69

Minimum burst pressure (bar) : 350

Radius of curvature (mm) : 101.6

Weight (kg/m) : about 0.348

This Goodridge Straight JIC Concave Swivel is part of the most complete line of lightweight, reusable alloy hose fittings that are specifically designed to fit 200 and 210 series hose.
Its aerospace-grade, triple-seal, double O-ring nitrile design ensures a secure, leak-free connection every time.
All 236 and 336 series nipples are available in bright red and blue anodized and provide permanent alignment with 360 degree swivel ends.

Applications: fuel, oil, coolants, methanol, water.

Thread: 7/8x14

Hose: Dash 10

Material: aluminum

Male to male JIC/metric Goodridge convex thread adapter.

Thread: M22x150 / JIC 7/8x14

Hose type: Dash 10

This sandwich plate or filter flange can be placed between the engine bloc and the oil filter.

Female outlets: M18x150

(2 adapters: Dash 10 JIC 7/8x14 - M18x150 included)

Probe outputs: Female 1/8 NPTF

Attaches with an expansion screw (2 screws included : 20x150 (Peugeot, Renault, Citroën...) and 3/4UNF

Oil filter port: internal Ø 52mm - external Ø 74mm
