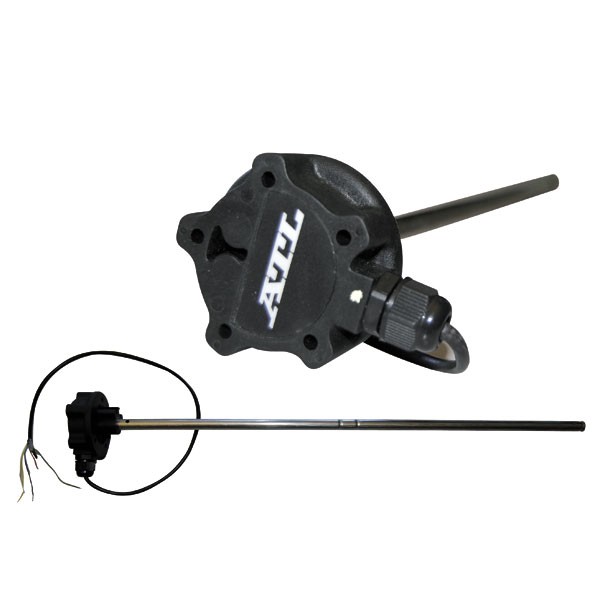

ATL 540mm 0-5 volt fuel tubular level sender
Reference:
ATL-AD-152
Supplier Ref.:
EL-AD-535
The ATL tubular gauge provides accurate measurement of the fuel level in your tank, allowing you to easily monitor your fuel consumption.
Adjustable and cutable to a length between 540mm and 200mm, this gauge can be adapted to the depth of your tank for optimal accuracy.
With a total length of 540mm and a measurement range of 0.25 to 4.75 volts, this gauge provides accurate and consistent readings.
Technical data:
Length: 540mm
Output: 0.25V to 4.75V
Cannot be used with the ATL-AD-068 pressure gauge
Suitable for standard fuels only (diesel and gasoline)
Not suitable for fuels with high dielectric constants (alcohols, E85, etc.)
Supplied with a kit of bolts, washers, and gasket for installation
Products intended for vehicle modification for competition purposes may render their use prohibited on public roads, insofar as they significantly alter the vehicle's characteristics as specified in the type-approval certificate issued by the relevant authorities (noise level, pollutant emissions, maximum speed, tire dimensions, etc.).
