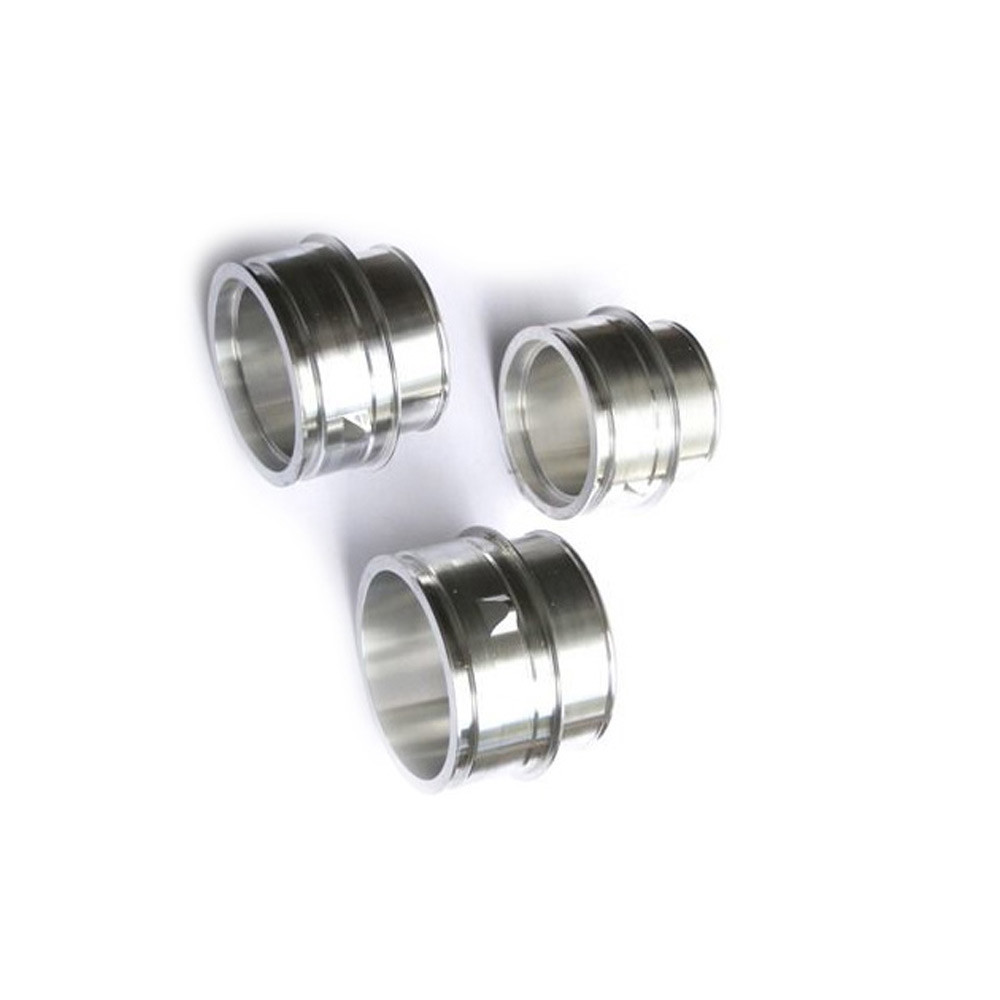

Forge bayonet style hose coupler

This Forge Motorsport alloy bayonet-style hose coupler converts your specifications / specs hoses into push-fit hoses.
These couplers are perfectly compatible with VAG vehicles, but can also be fitted to many other applications.

To find out if they are compatible with your hoses, simply measure the coupler you currently have.

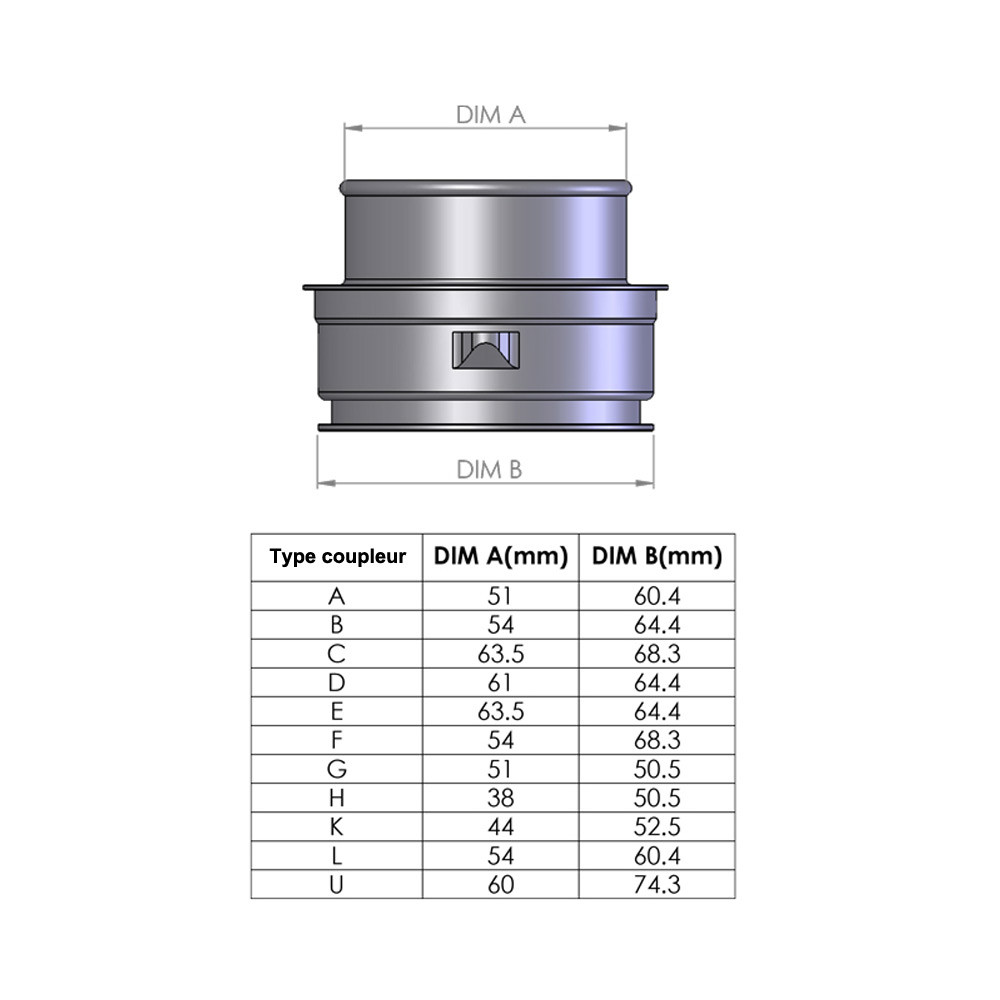

Several diameters are available:

Type A: 60mm (outside diameter) - 51mm (inside diameter hose)
Type B: 64mm (outer diameter) - 54mm (inner diameter)
Type C: 68mm (outside diameter) - 63mm (inside diameter)
Type D: 64mm (outside diameter) - 60mm (inside diameter hose)
Type E: 64mm (outside diameter ) - 63.5mm (inside diameter hose)
Type F: 68mm (outside diameter) - 54mm (inside diameter)
Type G: 52mm (outer diameter ) - 51mm (inner diameter )
Type H: 52mm (outer diameter ) - 38mm (inner diameter )
Type K: 52.5mm (outer diameter) - 44mm (inner diameter)
Type L: 60mm (outer diameter ) - 54mm (inner diameter )
Type U: 74mm (outer diameter ) - 60mm (inner diameter )

Please note: original seals and O-rings must be retained for use with Forge hoses.

Compatibility :

- Audi: A3 / S3

-Seat: Altea

-Skoda: Octavia

- Volkswagen : Eos / Golf MK5 / Passat / Scirocco
