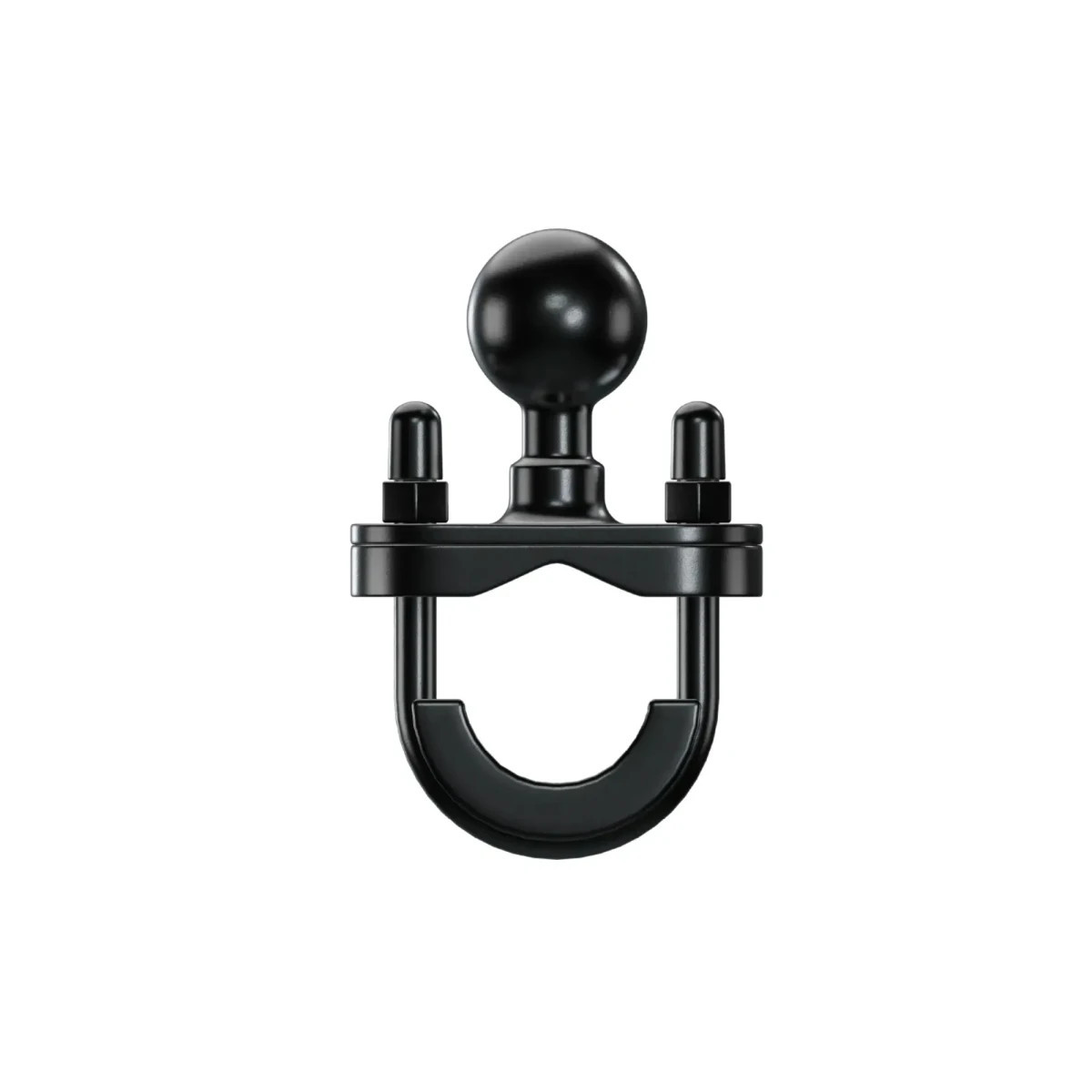

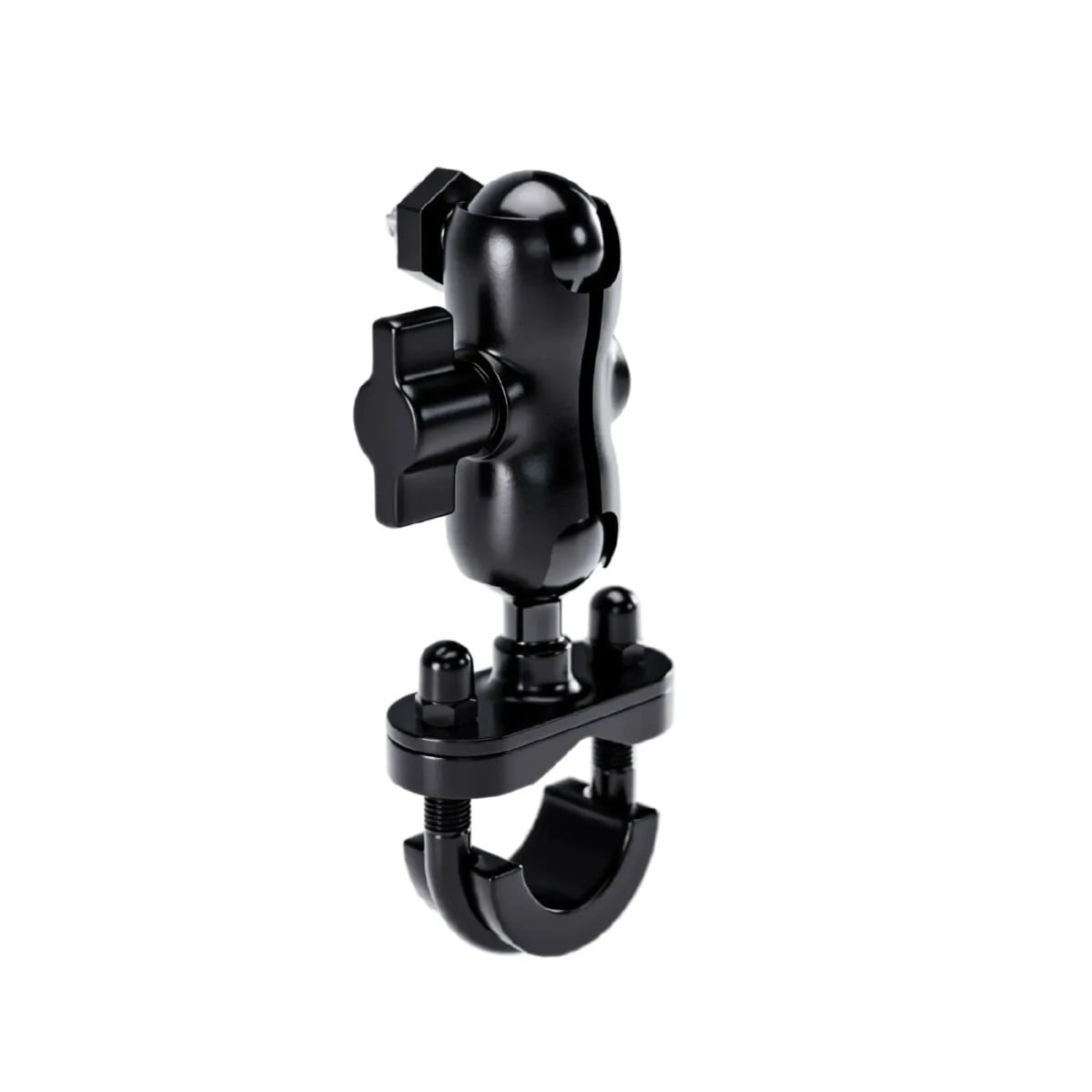

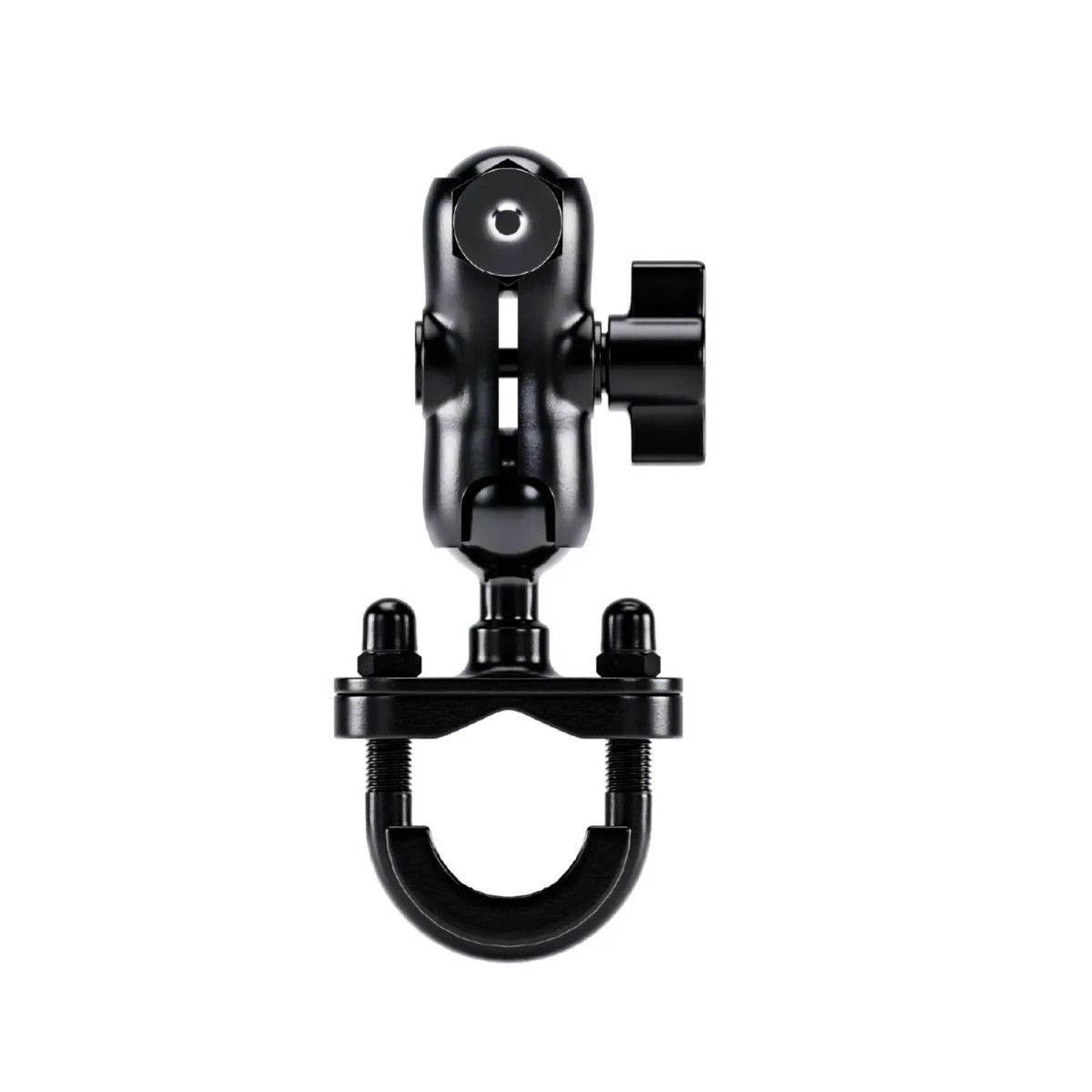

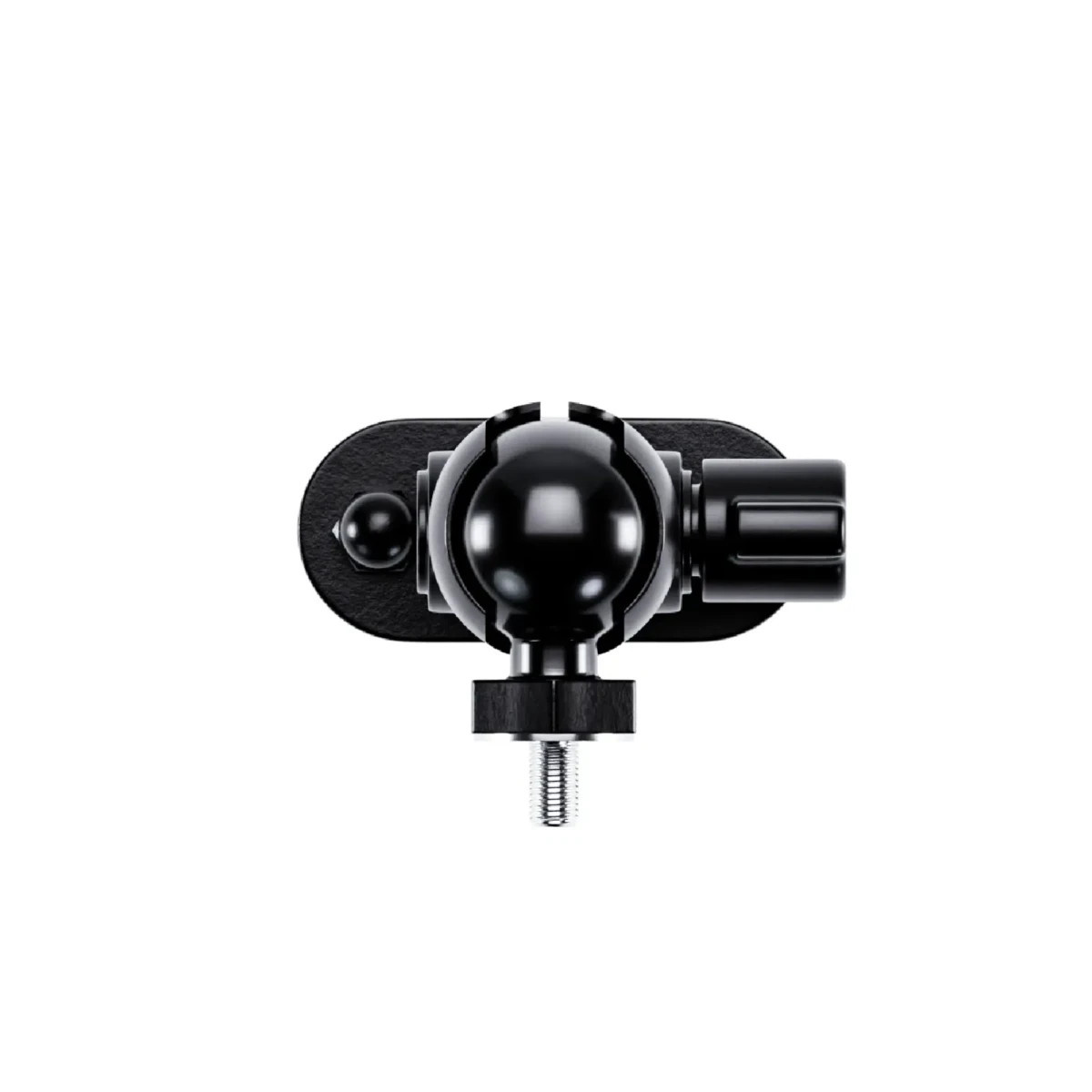

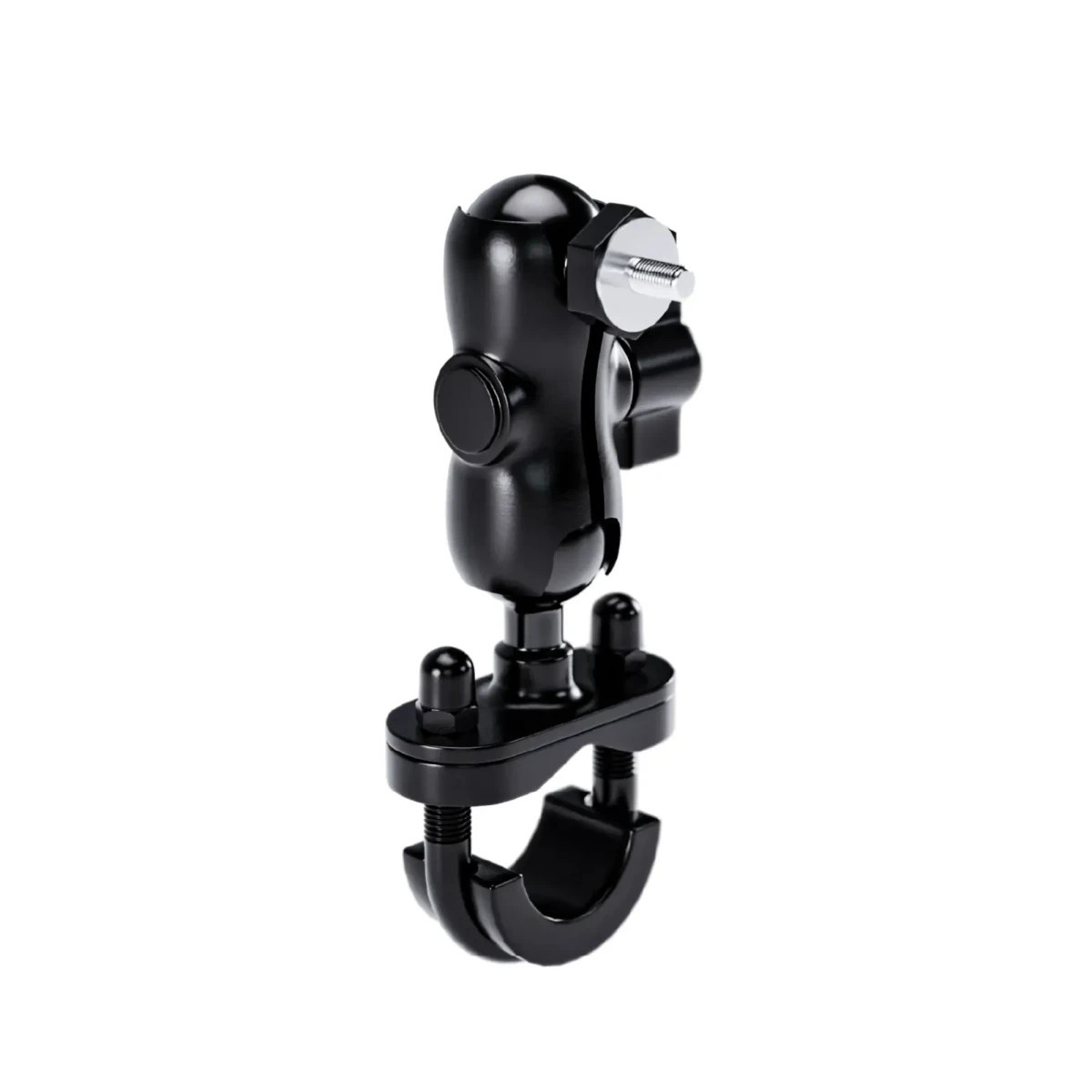

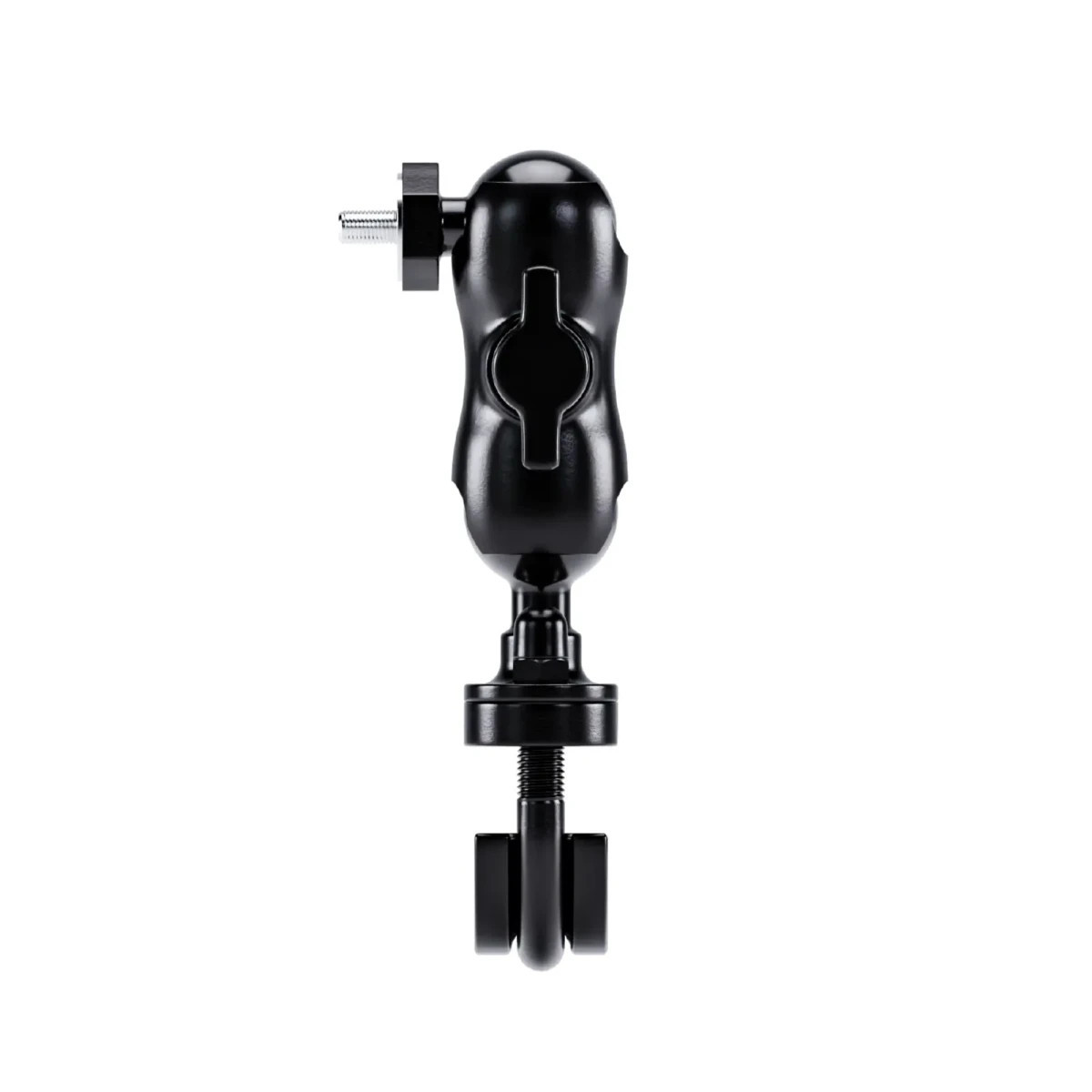

AIM SmartyCam camera bracket for 12.7 to 30.5 mm roof rails with U-bolt

The AIM SmartyCam camera mount with U-bolt allows you to attach a SmartyCam on-board camera directly to a roll cage or a tube with a diameter ranging from 12.7 to 30.5 mm. This mounting solution is suitable for race cars and allows you to install the camera in the cockpit while precisely adjusting its orientation.

The bracket is compatible with AIM SmartyCam HD, Sport, and Corsa cameras from generations 2.1, 2.2, 3, and 4. Its U-bolt fastening system allows for mounting on tubes of various diameters without requiring a specific clamp for each size.

The rod end adjustment system makes it easy to position the SmartyCam to achieve the desired frame. A rubber insert helps minimize the transmission of vibrations between the tube and the bracket—a particularly important consideration for video recording during rally and track events.

The mounting includes a 160 mm single-rod end arm that offers a wide range of motion. Once the orientation is set, the system can be locked to hold the camera in its position.

Technical Specifications

• Brand: AIM
• Manufacturer Part Number: SM-UB
• Type: Rollbar camera support
• Mounting system: U-bolt
• Compatible tube diameter: 12.7 to 30.5 mm
• Adjustment: rod end system
• Arm length: 160 mm
• Compatibility: AIM SmartyCam HD, Sport, and Corsa 2.1, 2.2, 3, and 4
• Anti-vibration insert: rubber
• Applications: motorsports, rally, track

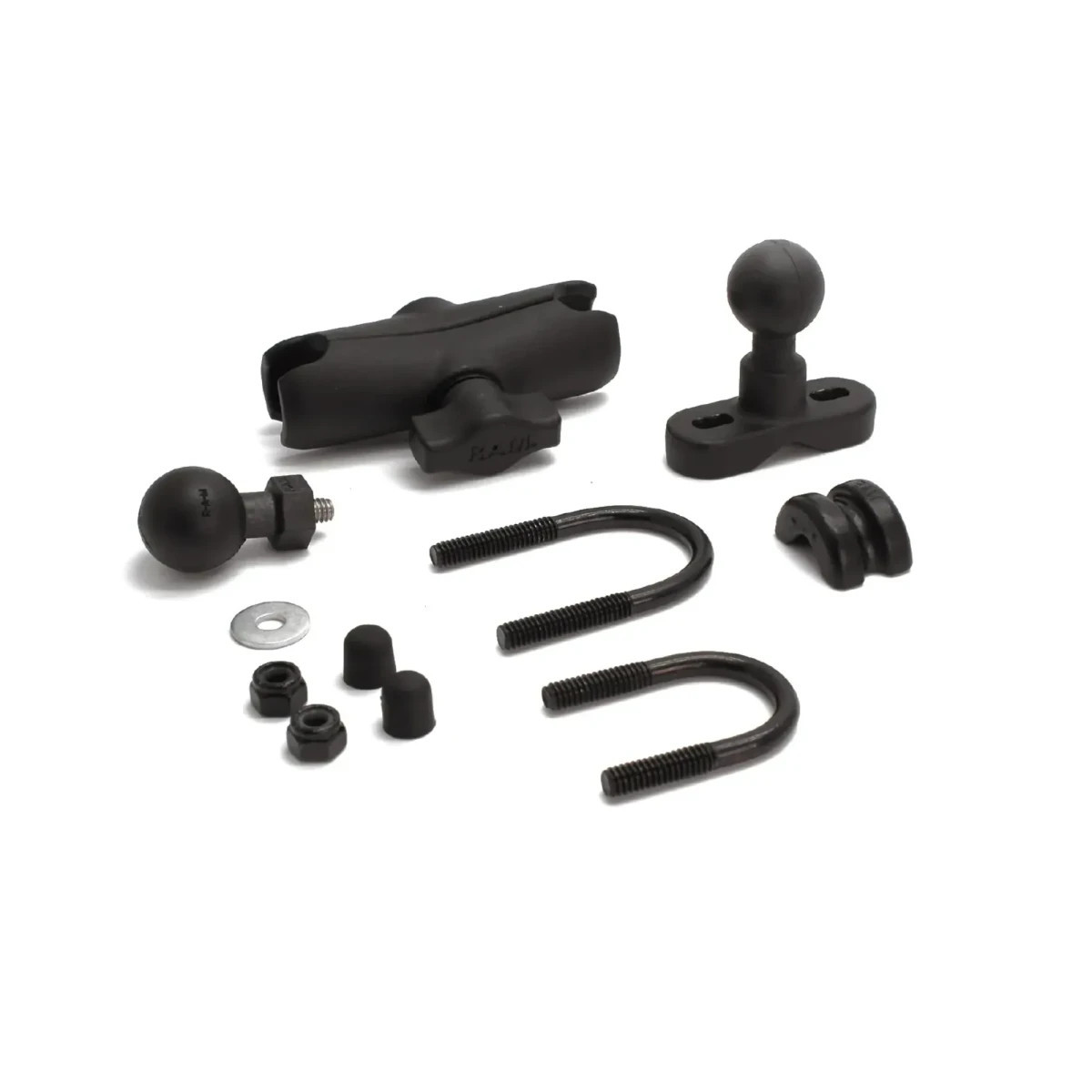

Contents

• 1 U-bolt
• Mounting straps
• 1 single 160 mm rod end arm
• 1 rod end head
• 1 washer, 17.7 mm in diameter, 1.5 mm thick, with a 6 mm hole
