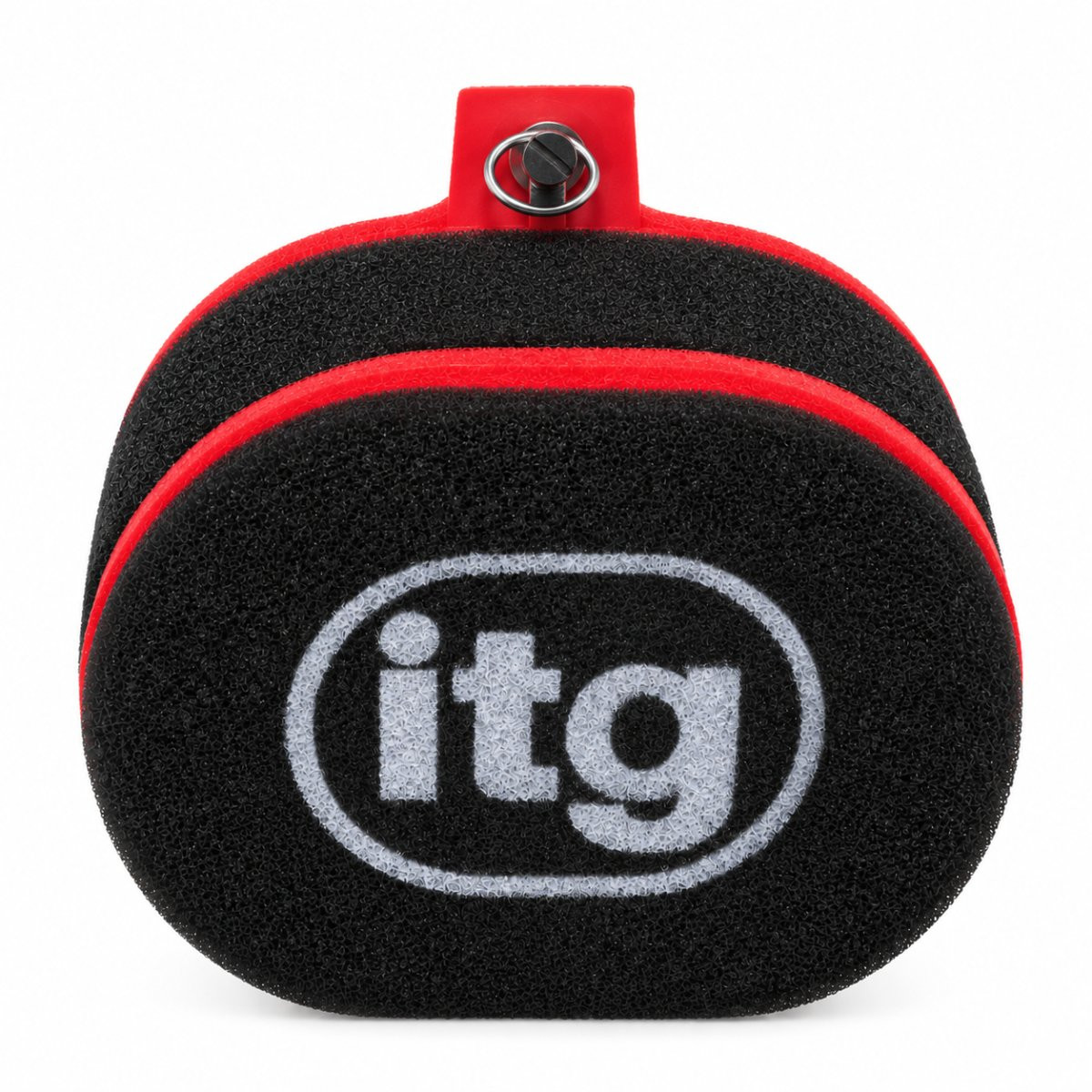

The ITG Megaflow JC20 air filter has straight sides, an internal height of 65 mm, and mounts on an ITG JC20 series base adapted to the carburetor in use.
The JC20/65 measures 192 mm long by 148 mm wide. Its internal height of 65 mm corresponds to the available clearance inside the filter, particularly for the intake horn or trumpet. Its external height of 90 mm must be taken into account when checking the available space in the engine compartment.
The Megaflow system allows the filter to be paired with a mounting base from the same JC20 series, which should be selected based on the carburetor and mounting configuration.

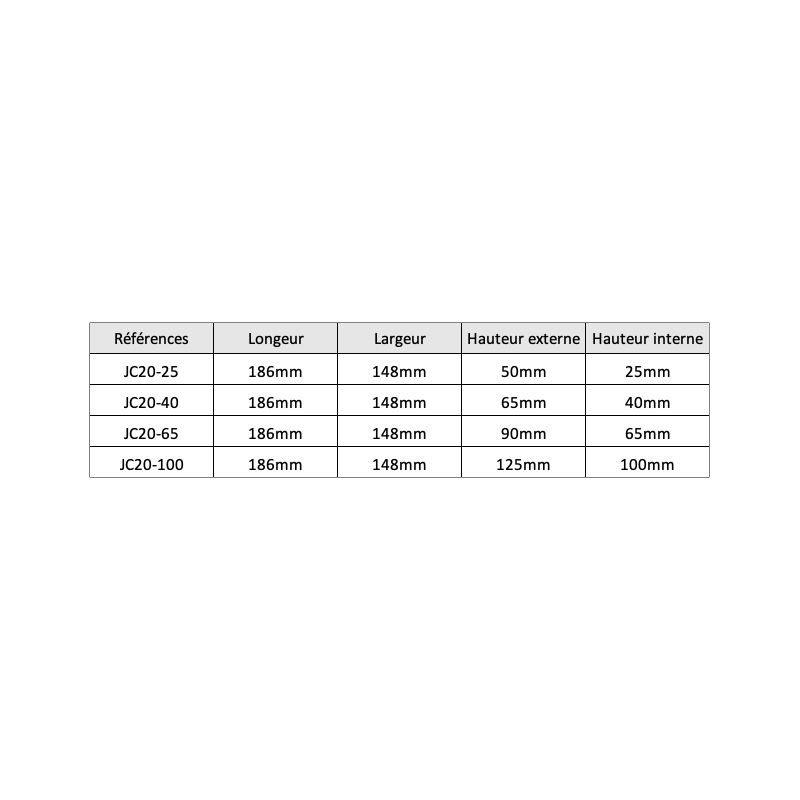

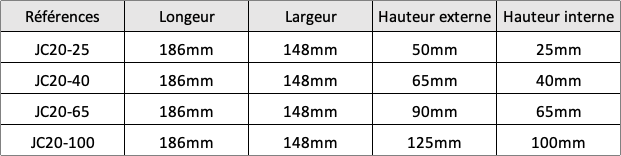

Technical Specifications of the ITG Megaflow JC20 Air Filter
- Manufacturer Part Number: JC20/65
- Range: Megaflow
- Series: JC20
- Type: Primary air filter
- Shape: straight sides
- Length: 192 mm
- Width: 148 mm
- External height: 90 mm
- Internal height: 65 mm
- Compatible base: ITG JC20 series
Key features of the ITG Megaflow JC20 air filter
- Compact JC20 design for small single-barrel carburetors
- 65 mm internal height to provide clearance for the intake horn or intake horn
- Distinct internal and external sizes for precise space planning before mounting
- Standard straight-sided design
- Compatible with ITG JC20 series mounting bases
