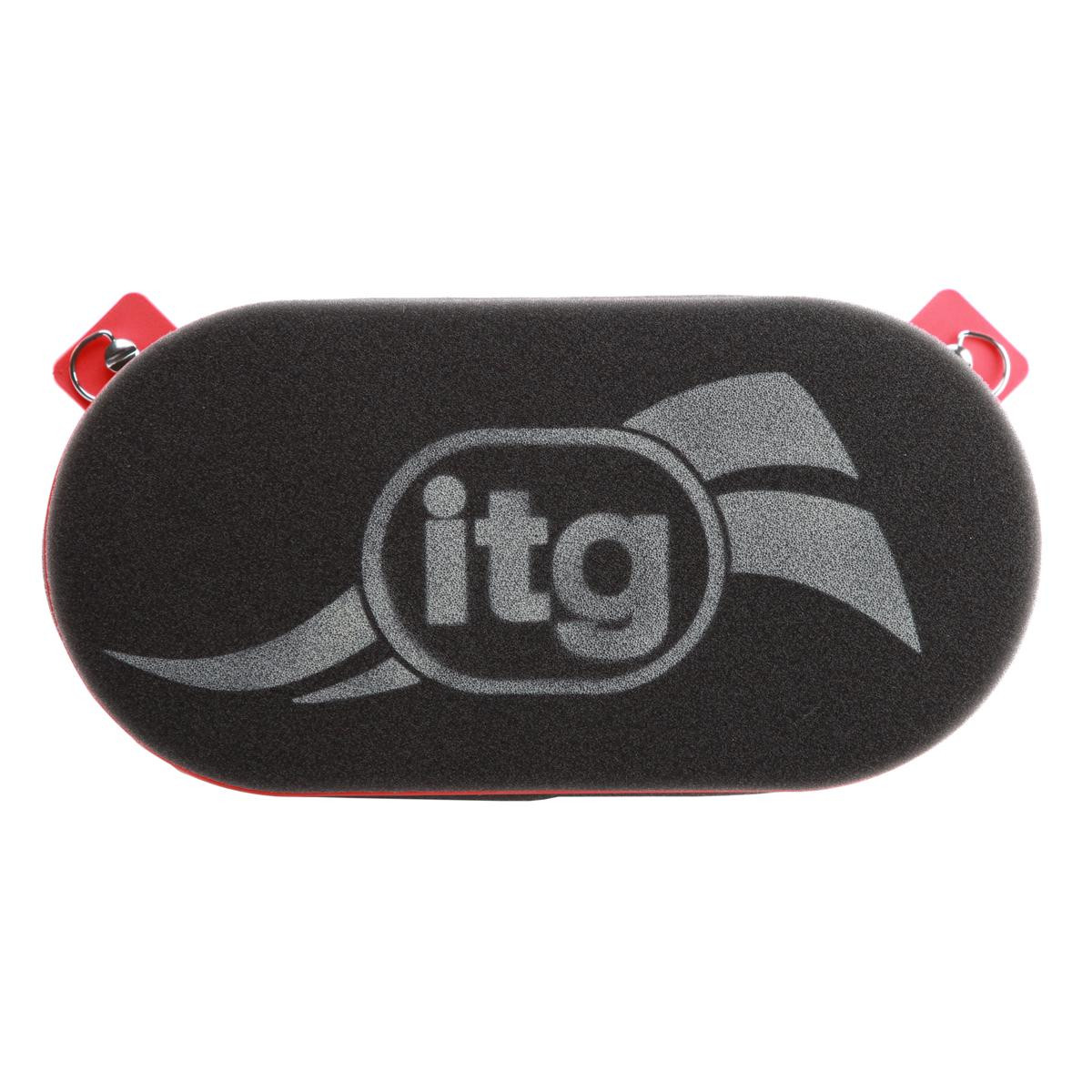

The ITG Megaflow JC30 air filter is a primary filter designed for single-carburetor mounting. This standard straight-sided version has an internal height of 65 mm and mounts to an ITG JC30 series base plate compatible with the carburetor being used.

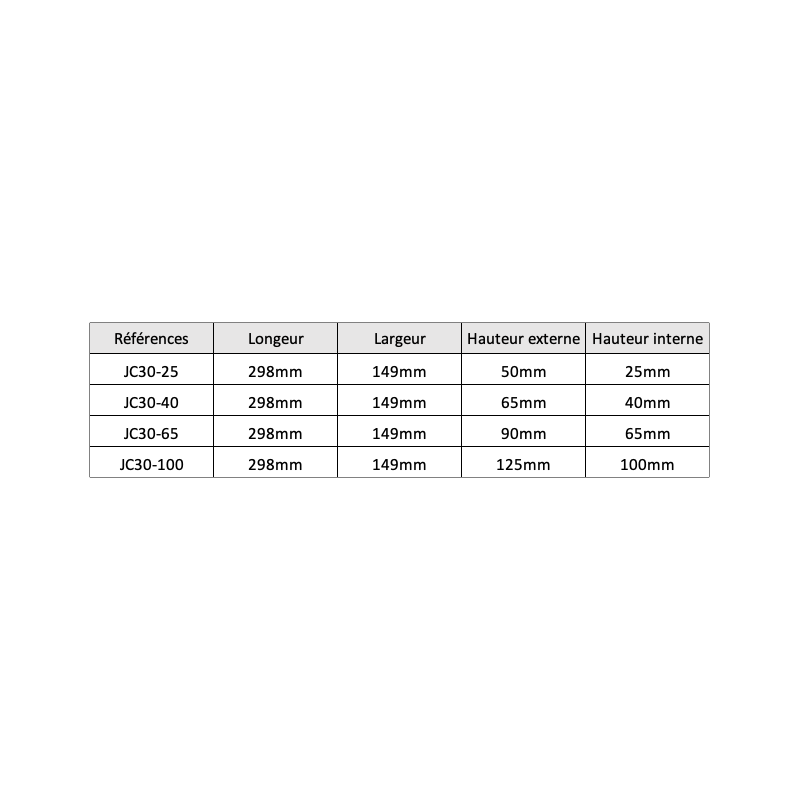

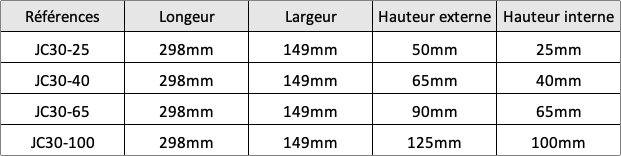

The JC30/65 measures 298 mm long by 149 mm wide. Its internal height of 65 mm corresponds to the available clearance inside the filter housing, particularly for the intake horn or intake pipe. Its external height of 90 mm must be taken into account when verifying the available space in the engine compartment.
The Megaflow system allows you to pair the JC30 filter with a mounting base from the same JC30 series, which should be selected based on the carburetor and mounting configuration.
Technical Specifications of the ITG Megaflow JC30 Air Filter
- Manufacturer Part Number: JC30/65
- Range: Megaflow
- Series: JC30
- Type: Primary air filter
- Shape: Straight sides
- Application: single carburetor
- Length: 298 mm
- Width: 149 mm
- External height: 90 mm
- Internal height: 65 mm
- Compatible base: ITG JC30 series
Key Features of the ITG Megaflow JC30 Air Filter
- JC30 format designed for single-carburetor mountings
- 65 mm internal height to allow clearance for the intake horn or intake pipe
- Clearly defined internal and external sizes to verify clearance before mounting
- Standard straight-side design
- Compatible with ITG JC30 series mounting bases
