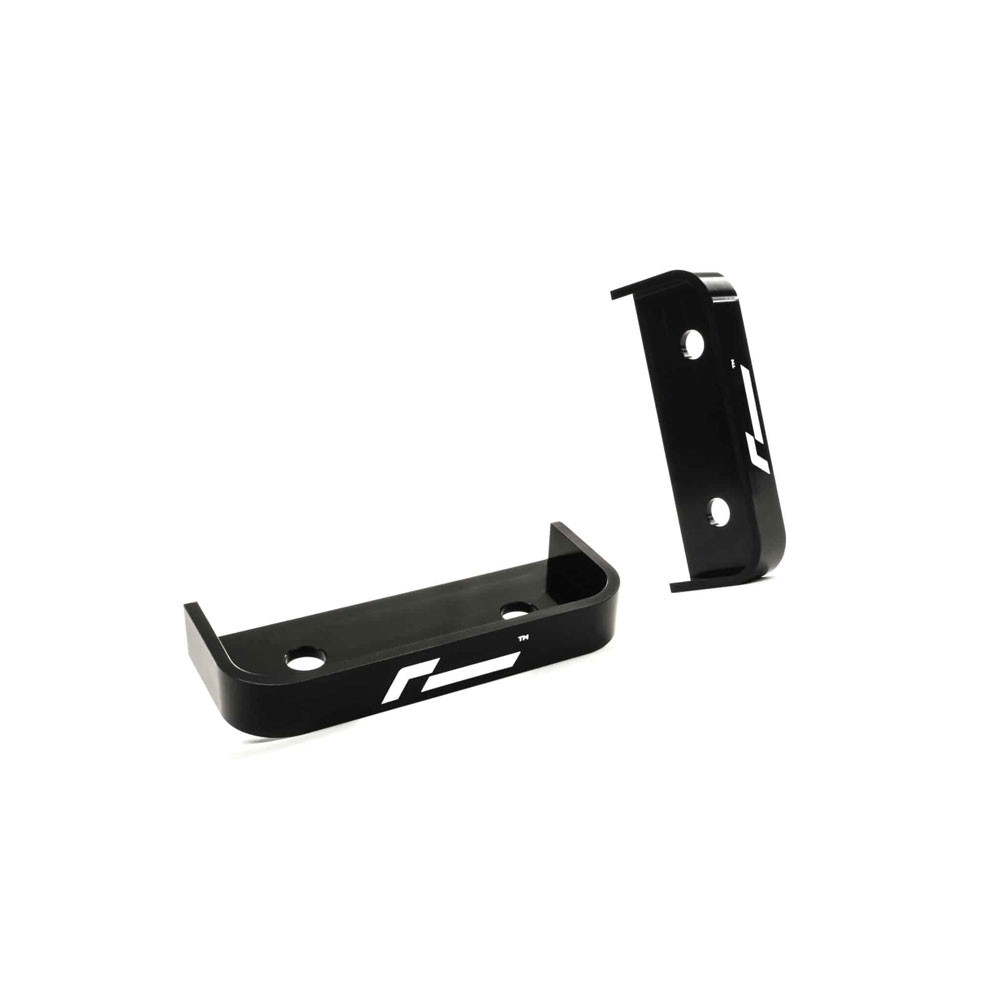

The MQB RacingLine Propshaft Bearing Alignment kit cuts out the factory tolerances to maintain accurate propshaft alignment every time, all of the time.
The precision-engineered, Propshaft Bearing Alignment Kit centralises the factory centre support bearing carrier by cutting out the enlarged factory hole tolerances. Meaning your propshaft is held in perfect true orientation at all times.
The oversize holes on the factory brackets are designed to allow several degrees of ‘twist’ on the centre bearing carrier, causing unnecessary long-term stresses on the prop, bushes and bearings.
That may be great to help the factory with quick production-line assembly, but will lead to accelerated wear on the bush and rubber housing from misalignment.
Every hard launch & shift provokes movement in the drivetrain – over time this risks shifting the factory prop mount out of alignment.
This simple alignment kit reduces the bolt hole size down from M14 to M8, allowing no further twist from the brackets and ensuring that your prop cannot move from this position.
Fit this Propshaft Bearing Alignment Kit once, then forget it. Drive your car safe in the knowledge that your propshaft will remain in the correct alignment forever more and prolong the life of the bearings and bushings.
Confirmed Applications
For all MQB & MQB Evo AWD models
VWR810009
VW Golf 8 R 2020+
VW Golf 7 & 7.5 R 2013-2020
VW Passat 2.0 BiTDI 4Motion B8 2015+
VW Arteon 2.0 BiTDI 4Motion 2017+
VW Arteon R 2.0 TSI 320ps 2020+
VW T-Roc R 2.0 TSI 2019+
VW Tiguan II 2.0 BiTDI 2016+
Audi S3 8Y 2020+
Audi S3 8V 2013-2020
Audi RS3 2.5 TSI 8V evo 2017-2020
Audi TT 3 2.0 TSI 8S 2014+
Audi TTS 3 2.0 TSI 8S 2015+
Audi TTRS 3 2.5 TFSI 8S 2017+
Audi SQ2 2018+
Audi RSQ3 F3 2019+
SEAT Leon III Cupra ST 4Drive 5F 2017-2020
SEAT Tarraco 2.0 TSI 190ps 2018+
Cupra Ateca 2018+
Cupra Formentor 310PS 2020+
Skoda Superb III 2.0 TDI 3V 2015-2020
Skoda Kodiaq vRS 2018+
Products intended for vehicle modification for competition purposes may render their use prohibited on public roads, insofar as they significantly alter the vehicle's characteristics as specified in the type-approval certificate issued by the relevant authorities (noise level, pollutant emissions, maximum speed, tire dimensions, etc.).
