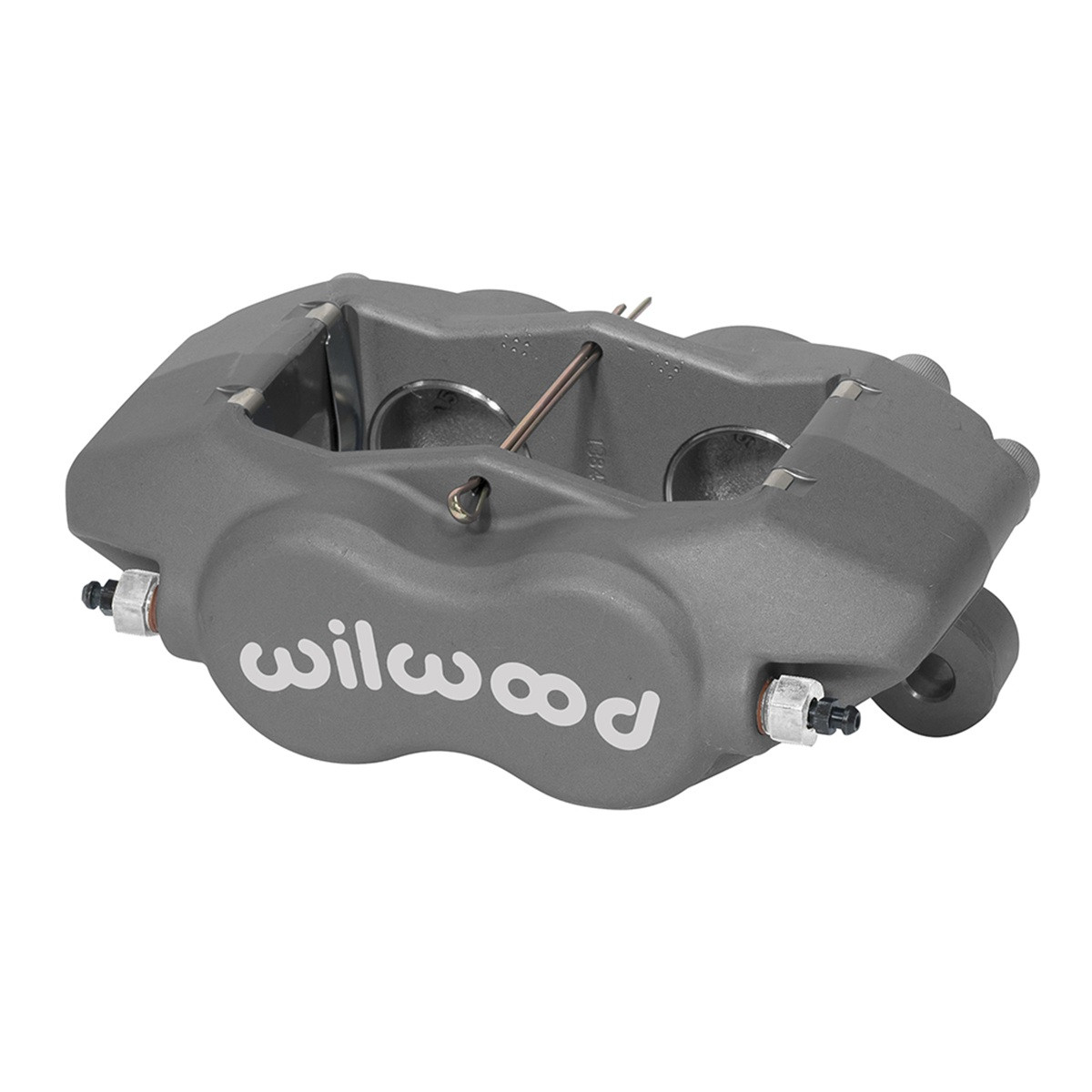

DYNALITE Forged Caliper 4P 12.7mm P35.1mm

This WILWOOD DYNALITE forged 4-piston brake caliper has been designed for applications requiring high-performance, consistent and durable braking, particularly in intensive use.


The Forged Billet Dynalite Internal caliper is an evolution of the Dynalite range. It features a spacer-less design incorporating a single bridge, which improves rigidity and design.

It is made of forged aluminum, a process that orients the metal according to the shape of the caliper. This makes it stronger than a model that is simply machined from a solid block.

Its optimized design reduces deformation during heavy braking. The result is a caliper that is stiffer, lighter, and more efficient than previous versions of the same size.

Features:

• Number of pistons: 4
• Dust boots : No
• Material : Forged aluminum
• Mounting side : Universal
• Fastening type : Lugs
• Weight : 1.3 kg (3.6 lbs)

Sizes :

Total piston surface area: 19.3 cm² (3.00 in²)
Disc thickness: 11.1 - 12.7 mm (0.44 - 0.52 in)
Disc diameter: 254 - 331.7 mm (10 - 13.06 in)

Mounting center distance: 13.3 cm (5.25")

Thread: 1/8-27 NPT
