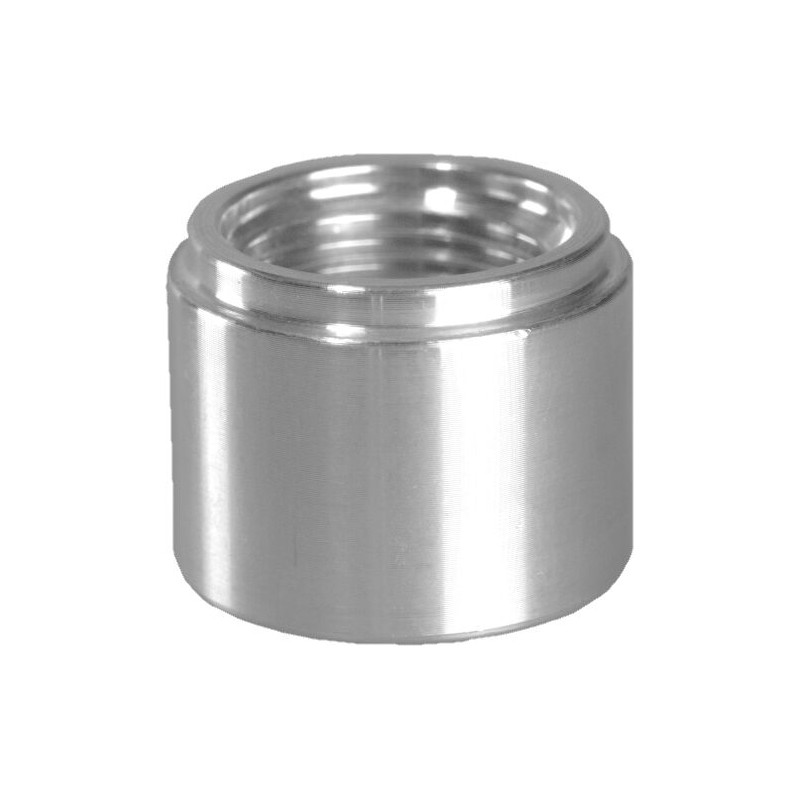

JIC/AN 20 1 5/8 X12 UNF Female Fitting

OBP
Reference: OBP-JIC20-F
Supplier Ref.: OBPJIC20-F
CHF 12.24 Tax included
CHF 13.60 -10% Discount
Promotion ends in: 14 H 28 M 52 S
Available to order
Unavailable in store (Promasens)
Within 20 days on average.
Earn 12 loyalty points

This OBP female fitting is a self-welded component that can be used in all tank constructions specific to a particular Race Car application.


This product is made from 6082 aluminum, a heat-treatable alloy with medium to high strength.


It has very good corrosion resistance and weldability, although strength in the weld area is reduced.


Made from high-quality, easy-to-weld aluminum.


Technical data:



Thread: AN/JIC20 / 1 5/8x12UNF

Outer diameter (A): 57

Height (B): 41

Shoulder diameter (C): 50.60

Shoulder height (D): 3

Products intended for vehicle modification for competition purposes may render their use prohibited on public roads, insofar as they significantly alter the vehicle's characteristics as specified in the type-approval certificate issued by the relevant authorities (noise level, pollutant emissions, maximum speed, tire dimensions, etc.).
