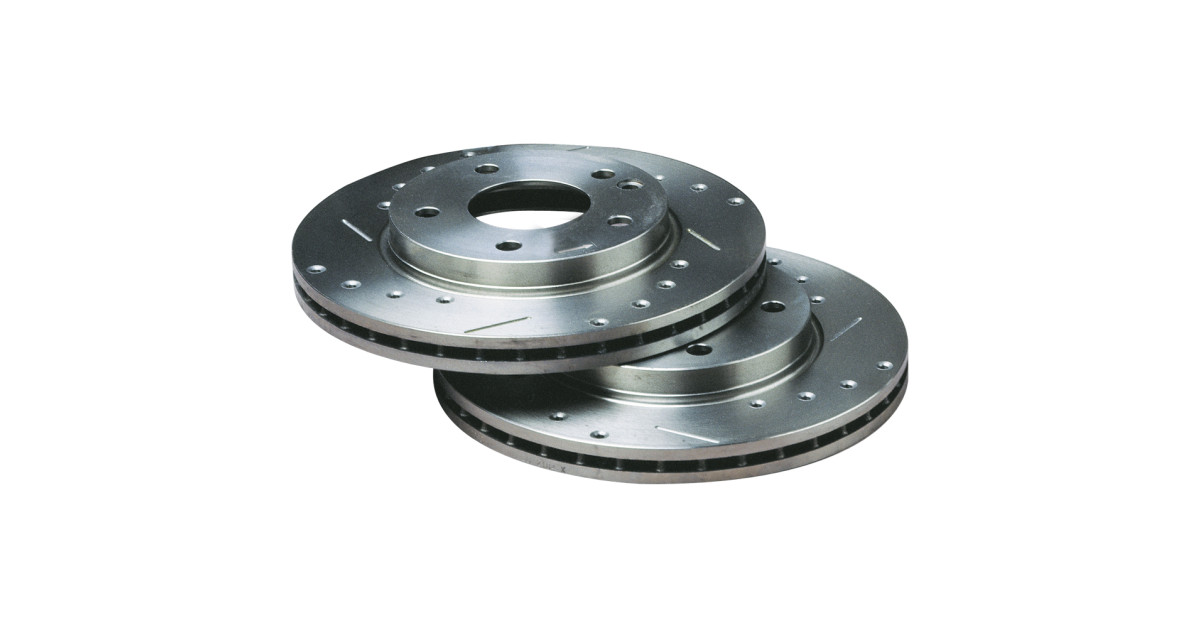

BRATEX Group A brake discs perforated grooved Ford Escort 90-99 Rear 270x10mm
BRATEX Group A brake discs come from Italian forges whose cast iron is the basis for racing. They are machined and treated to improve their heat resistance and to meet the market's demands for unbeatable manufacturing quality and price. They fit in place of the original ones without modification!
These perforated and grooved discs will guarantee a high performance, durable braking that does not weaken despite intensive use in leisure or competition, the grooves present on the discs promote the evacuation of dust and the holes are present to improve cooling.
Sold per pair.
Make compatibility : Ford
Axle positioning : Rear
Dimensions : 270x10 S - h.62,6 - c.63,5
Compatibility manufacturer reference : 5025951 ,6508247 ,6691106 ,91AX2A315AC
| FORD | ESCORT CLASSIC (AAL, ABL) | 1.8 TD 66kw | 10/98-07/00 |
| ESCORT CLASSIC Turnier (ANL) | 1.8 TD 66kw | 02/99-07/00 | |
| ESCORT V (GAL) | 1.3 44kw | 07/90-09/92 | |
| 1.4 52kw | 07/90-09/92 | ||
| 1.8 16V XR3i 77kw | 02/92-12/92 | ||
| 1.8 D 44kw | 07/90-12/92 | ||
| ESCORT V Convertible (ALL) | 1.4 52kw | 07/90-12/92 | |
| 1.8 16V XR3i 77kw | 02/92-12/92 | ||
| ESCORT V Estate (GAL, AVL) | 1.8 16V 77kw | 02/92-12/92 | |
| 1.8 D 44kw | 07/90-12/92 | ||
| ESCORT VI (GAL) | 1.4 55kw | 01/94-01/95 | |
| 1.8 XR3i 16V 4x4 77kw | 08/93-01/95 | ||
| RS 2000 4x4 110kw | 08/93-01/95 | ||
| ESCORT VI Convertible (ALL) | 1.4 i 55kw | 07/93-01/95 | |
| ESCORT VI Estate (GAL) | 1.8 i 16V 96kw | 02/93-01/95 | |
| ESCORT VI Saloon (GAL) | 1.4 52kw | 08/93-04/94 | |
| 1.4 55kw | 08/93-01/95 | ||
| 1.8 D 44kw | 08/93-01/95 | ||
| 1.8 i 16V 77kw | 08/93-01/95 | ||
| ESCORT VII (GAL, AAL, ABL) | 1.6 i 16V 65kw | 01/95-08/95 | |
| 1.8 16V 77kw | 01/95-08/95 | ||
| 1.8 16V 85kw | 01/95-10/98 | ||
| 1.8 D 44kw | 01/95-12/96 | ||
| 1.8 TD 66kw | 01/95-10/98 | ||
| 1.8 Turbo D 51kw | 12/95-10/98 | ||
| RS 2000 110kw | 02/95-02/98 | ||
| RS 2000 4x4 110kw | 02/95-10/98 | ||
| ESCORT VII Convertible (ALL) | 1.4 55kw | 02/95-08/98 | |
| 1.6 16V XR3i 65kw | 02/95-12/96 | ||
| 1.6 16V XR3i 66kw | 02/95-09/99 | ||
| 1.8 16V XR3i 96kw | 02/95-08/00 | ||
| 1.8 TD 66kw | 09/95-08/98 | ||
| ESCORT VII Estate (GAL, ANL) | 1.6 i 16V 65kw | 01/95-08/95 | |
| 1.8 16V 77kw | 01/95-08/95 | ||
| 1.8 16V 85kw | 01/95-02/99 | ||
| 1.8 D 44kw | 01/95-02/99 | ||
| 1.8 TD 66kw | 01/95-02/99 | ||
| ESCORT VII Saloon (GAL, AFL) | 1.6 i 16V 65kw | 01/95-08/95 | |
| 1.8 16V 77kw | 01/95-08/95 | ||
| 1.8 16V 85kw | 01/95-02/99 | ||
| 1.8 D 44kw | 01/95-12/96 | ||
| 1.8 TD 66kw | 01/95-02/99 | ||
| 1.8 Turbo D 51kw | 12/95-02/99 | ||
| ORION III (GAL) | 1.6 66kw | 07/90-12/92 | |
| 1.6 i 16V 66kw | 07/92-12/93 | ||
| 1.6 i 77kw | 07/90-09/92 | ||
| 1.8 D 44kw | 11/90-12/93 | ||
| 1.8 i 16V 77kw | 02/92-12/93 | ||
| 1.8 i 16V 96kw | 01/92-12/93 | ||
| 1.8 TD 66kw | 03/92-12/93 |
To know how to choose your disc diameter, click here
https://www.youtube.com/watch?v=EOMQ3yWeqw8-
Thickness in mm10
-
Diameter in mm270
-
Offset in mm62
-
Inner diameter in mm63
-
PositionRear
-
Soldi or ventedSolid
-
Origine reference5025951
