RacingLine Aluminum Brake Fluid Reservoir Cap – Volkswagen, Audi, SEAT, Škoda

The RacingLine brake fluid cap for compatible Volkswagen, Audi, SEAT, CUPRA, and Škoda models completely replaces the original plastic cap. It combines an aluminum construction with an improved air venting system, designed to balance the pressure in the brake fluid reservoir, particularly during intensive track use.

As the brake pads wear down, the caliper pistons move forward and the fluid level in the reservoir gradually drops. The air venting system must compensate for this change to prevent a vacuum from forming. This phenomenon can occur, in particular, when pad wear is rapid, such as on a vehicle equipped with a big brake kit used on the track.

The RacingLine reservoir plug features a pressure-balancing system optimized compared to the original plug. It accommodates fluctuations in fluid level and helps ensure the reservoir functions properly under these conditions. Its function is to perform air venting; it does not increase the hydraulic pressure generated during braking.

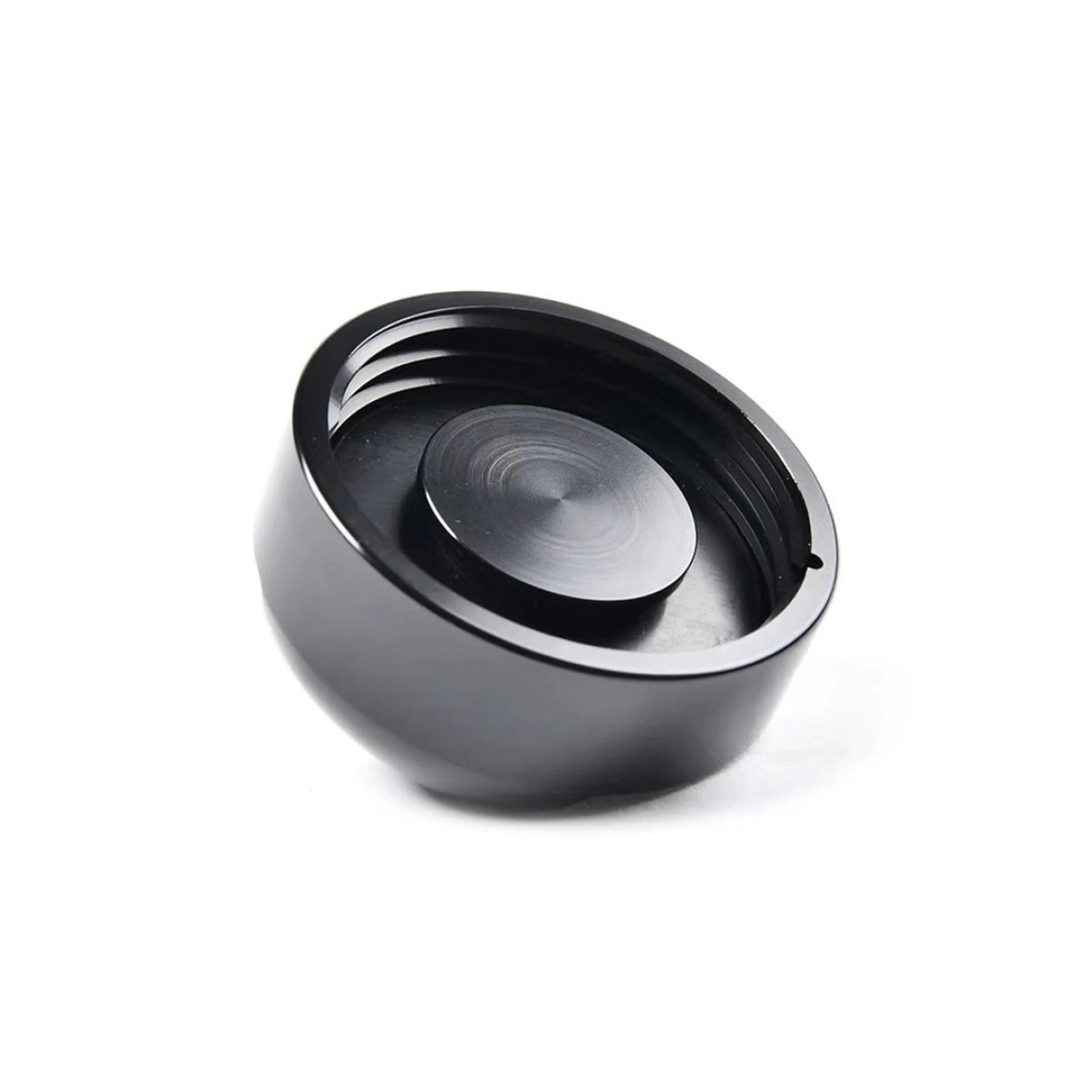

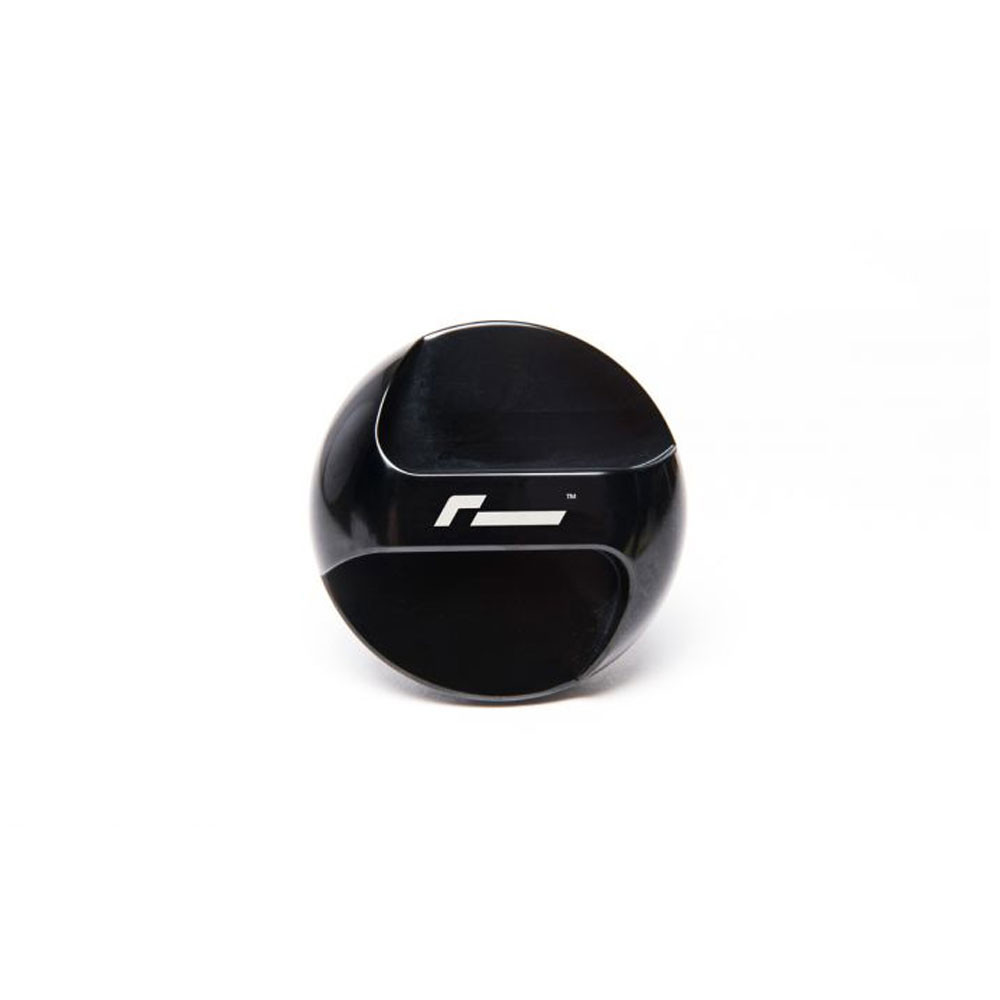

The body is CNC-machined on five axes from 6061 aluminum, then polished and anodized in glossy Midnight Black. This finish lends a polished look to the engine compartment. The RacingLine VWR19G707 is a fully functional reservoir plug, not a decorative cover to be glued over the original part.

Technical Specifications

• Brand: RacingLine
• Manufacturer Part Number: VWR19G707
• GT2i Part Number: VWR-19G707
• Type: Brake fluid reservoir cap
• Material: 6061 aluminum
• Manufacturing: 5-axis CNC machining of shafts
• Surface treatment: polishing followed by anodizing
• Color: Midnight Black gloss
• Function: Seals the reservoir and equalizes pressure
• Design: improved air venting system
• Mounting: complete replacement of the original plug

Installation

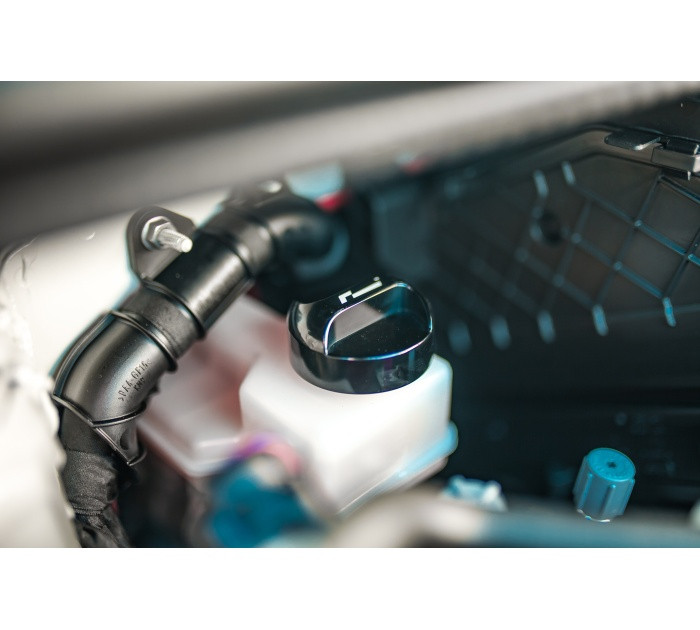

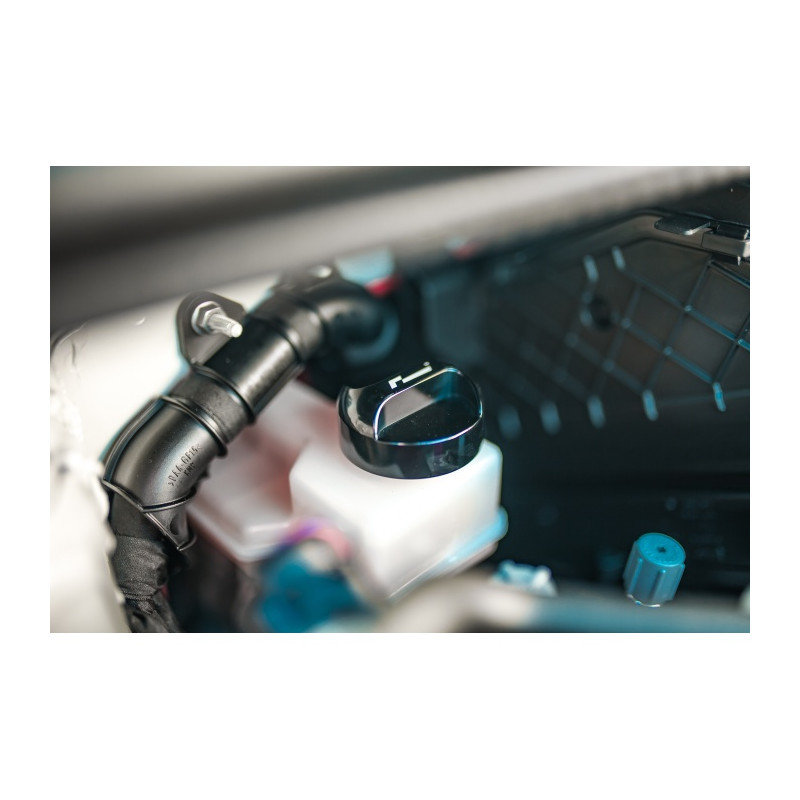

The plug replaces the original part on a compatible reservoir. Clean the rim of the reservoir before opening to prevent contaminants from entering the brake fluid. After mounting, check that the plug is properly seated and closed.

Compatible Vehicles

Volkswagen

• Volkswagen Golf 8 and 8.5 (2020+)
• Volkswagen Golf 8 and 8.5 GTI (2020+)
• Volkswagen Golf 8 and 8.5 GTI Clubsport (2020+)
• Volkswagen Golf 8 and 8.5 R (2020+)
• Volkswagen Golf 7 and 7.5 R (2013–2020)
• Volkswagen Golf 7 and 7.5 GTI and Clubsport (2013–2020)
• Volkswagen Golf 7 and 7.5 (2013–2020)
• Volkswagen Up! GTI (2016+)
• Volkswagen Up! 1.0 TSI (2016+)
• Volkswagen Passat B8 2.0 TSI (2015–)
• Volkswagen Arteon 2.0 TSI (2017–2020)
• Volkswagen T-Roc 2.0 TSI (2017–2022)
• Volkswagen Tiguan II 2.0 TSI (2016–2020)
• Volkswagen Golf 5 (2005–2008)
• Volkswagen Golf 6 (2008–2014)
• Volkswagen Scirocco (2008–2017)
• Volkswagen Jetta 5 and GLI (2005–2011)
• Volkswagen Jetta 6 and GLI (2011–2018)
• Volkswagen Jetta 7 and GLI (2018–)
• Volkswagen Polo 5 GTI 1.8 TSI 6C (2015–2018)
• Volkswagen Polo 5 GTI 1.4 TSI 6R (2008–2015)
• Volkswagen Polo 6 AW (2017–)
• Volkswagen T-Cross (2017–)
• Volkswagen ID. Buzz (2023+)
• Volkswagen ID.4 and ID.5 (2020–)
• Volkswagen Amarok (2010–2020)
• Volkswagen ID.3 (2019+)

Audi

• Audi S1 2.0 TFSI (2015–2018)
• Audi S3 8Y and 8Y.2 (2020+)
• Audi A3 2.0 TSI 8Y and 8Y.2 (2020+)
• Audi A3 8Y and 8Y.2 (2020+)
• Audi S3 8V (2013–2020)
• Audi A3 8V (2013–2020)
• Audi RS3 2.5 TFSI 8Y and 8Y.2 (2021+)
• Audi RS3 2.5 TFSI 8V.2 Evo (2017–2020)
• Audi RS3 2.5 TFSI 8V (2015–2017)
• Audi TT III 8S (2014+)
• Audi TT RS 2.5 TFSI 8S (2017–)
• Audi SQ2 (2018+)
• Audi Q3 (2019+)
• Audi Q2 (2017–)
• Audi RS Q3 F3 (2019+)
• Audi S3 8P (2006–2012)
• Audi A3 8P (2003–2012)
• Audi SQ5 (2017+)
• Audi A4, S4, and RS4 B9 (2015+)
• Audi A4, S4, and RS4 B8 (2007–2015)
• Audi A5, S5, and RS5 F5 B9 (2015–)
• Audi A6, S6, and RS6 C7 4G (2011–2018)
• Audi A7, S7, and RS7 C7 4G (2011–2018)
• Audi Q5 II FY (2017+)
• Audi Q5 3.0 TDI II FY (2017+)
• Audi Q4 e-tron: years to be confirmed

SEAT

• SEAT Ibiza 6F (2017+)
• SEAT Leon 4 and 4.5 FW (2020+)
• SEAT Leon III Cupra 5F (2014–2020)
• SEAT Leon III 5F (2015–2020)
• SEAT Arona (2017+)
• SEAT Tarraco 2.0 TSI (2018+)

CUPRA

• CUPRA Leon 4 and 4.5 FW (2020+)
• CUPRA Formentor VZ5 2.5 TFSI (2020+)
• CUPRA Formentor (2020+)
• CUPRA Ateca (2018+)
• CUPRA Born (2021+)

Škoda

• Škoda Octavia 4 and 4.5 vRS 2.0 TSI 245 CV NX (2020+)
• Škoda Octavia IV NX (2020+)
• Škoda Octavia III vRS 2.0 TSI 5E (2014–2020)
• Škoda Superb III 3V (2015+)
• Škoda Fabia IV (2021+)
• Škoda Fabia III NJ (2015+)
• Škoda Karoq (2017+)
• Škoda Kamiq (2019–)
• Škoda Scala (2019–)
• Škoda Enyaq (2021+)
