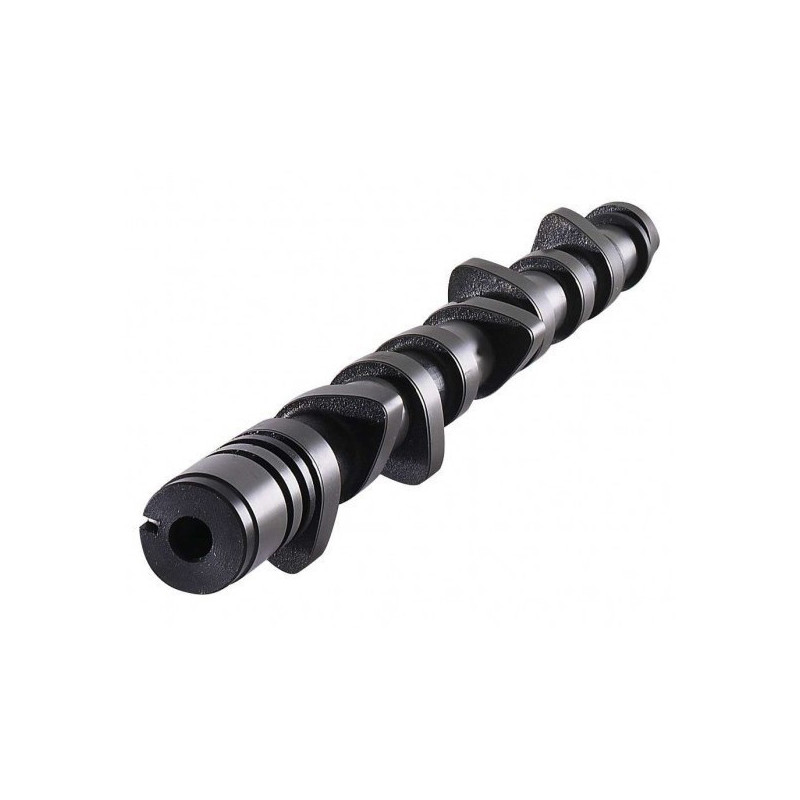

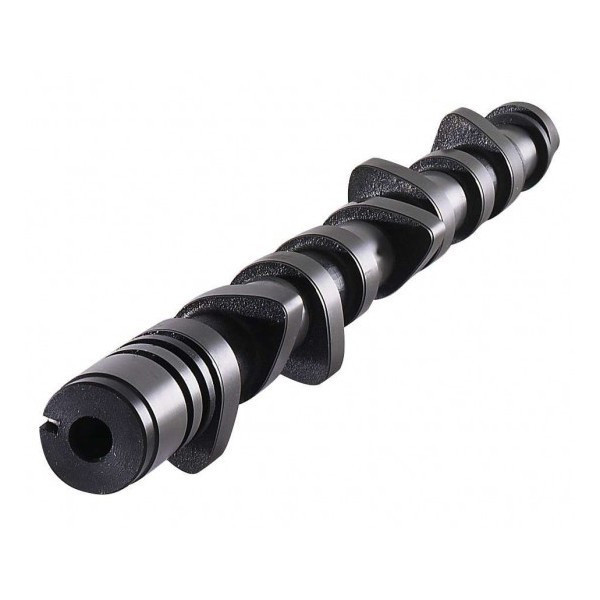

The camshaft is a key component of your engine that will allow you to significantly increase the performance of your competition vehicle.
During tuning, two characteristics of the camshaft can be modified: valve lift and valve opening angle (duration).
The greater the valve lift, the more air-fuel mixture is admitted into the cylinders, resulting in more power at high revs.
The more the valve opening angle is increased, the more a kind of air current is created that promotes the entry of the air-fuel mixture into the cylinder: this helps to bring more air-fuel mixture into the cylinders and therefore to obtain more power.
Catcams is a manufacturer of engine parts such as camshafts and everything related to them. Known and recognized worldwide, CATCAMS designs and manufactures its parts by analyzing each engine. They are experts in both cast steel and solid machining, and they choose the processes and treatments according to the desired performance and the information and parameters of each engine. CATCAMS offers a range of several camshafts with different openings and lifts for each engine concerned. This means that there is almost one camshaft for each application or level of tuning required.
Are you tuning your car and want to fit the best parts? Look no further, CATCAMS has what you need. Contact our advisors for more information or personalized assistance.
Technical data:
Opening duration at 0.1 mm (intake/exhaust): 273°/273°
Opening duration at 1 mm (intake/exhaust): 222°/222°
Maximum valve lift (intake/exhaust): 9.45mm/9.45mm
Valve lift at top dead center (intake/exhaust): 6.75mm/6.75m
