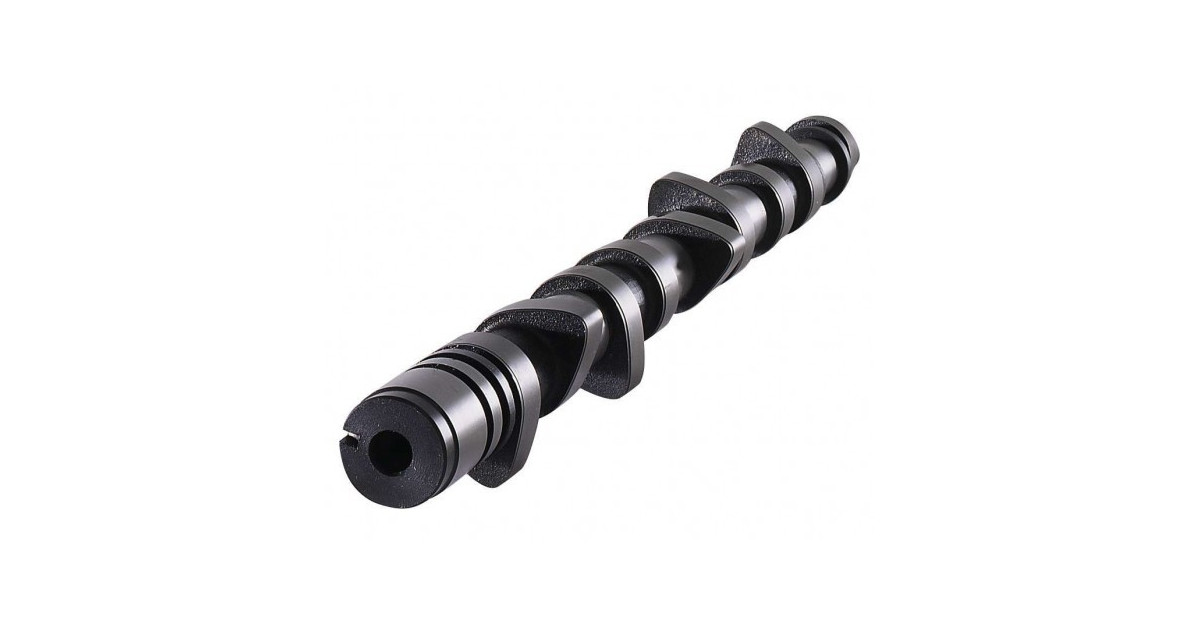

CATCAMS - Camshaft for Hyundai 4 cylinders 2.0L 16v DOHC G4GF 317°-305°,270°-262°,13.50mm-13.00mm,5.25mm-4.70mm

Delivery time

3 to 9 days + over 10 days + over 20 days + over 30 days

Camshaft Cat Cams 317° engine code G4GF for Hyundai 2.0 16v Beta 2.

The camshaft is a key part of your engine, enabling you to significantly increase the performance of your competition vehicle.

When tuning, you can modify two characteristics derived from the shape of the camshaft: valve lift and valve opening angle (duration).

The higher the valve lift, the more air-fuel mixture is admitted to the cylinders, and therefore the more power is obtained at high revs.

The greater the valve opening angle, the greater the "air current" created, which encourages the air-fuel mixture to enter the cylinder: this helps get more air-fuel mixture into the cylinders, and therefore more power.

Application: rally - sport

Duration at 0.1mm: 317° / 305°.

Duration at 1.0mm: 270° / 262°.

Max. valve lift Intake/Exhaust: 13.50 / 13.00mm

Lift at TDC Intake/Exhaust: 5.25mm / 4.70mm

Pulley: /

Follower: CC-CC002

Valve lash: CC-TS101-1-40X6M

Exterior spring: CC-PAC-E12009

Interior spring: CC-PAC-I12009

Vehicle affectation :

Make Engine Engine Code
Hyundai 4 cylindres 2.0L 16v DOHC (DTH/DTH) G4GF
Products intended for the adaptation of vehicles, for competition purposes, may cause them to be prohibited their use on roads open to public traffic, insofar as they significantly modify the features of the vehicles as described in the official report, issued by the vehicle registration authority : noise, pollution, maximum speed, tire size, etc.
