VDO Cockpit International Ammeter, Ø52 mm, -100 to +100 A
Reference:
V-AM190-037-003
Supplier Ref.:
190-037-003G

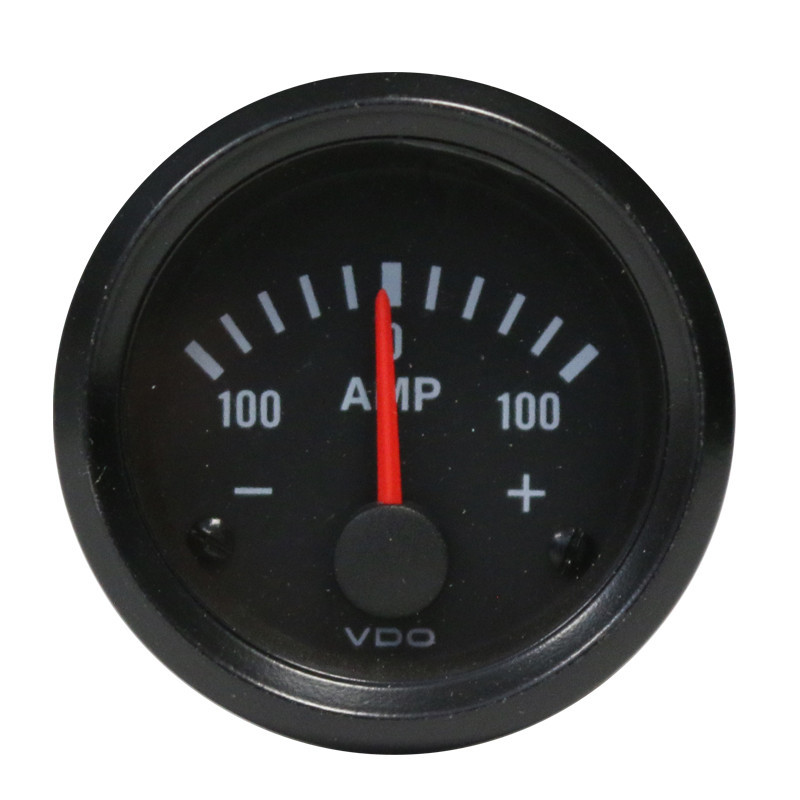

The VDO Cockpit International ammeter displays the charging or discharging current on a black dial. Its 52-mm bolt hole diameter allows it to be integrated into the dashboard. The display range is from -100 to +100 A.
The reading indicates the direction of current in the monitored circuit. The connection must be rated for the measured current and installed according to the VDO instructions.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: 190-037-003G
- Type: Ammeter
- Range: Cockpit International
- Bolt hole diameter: 52 mm
- Display range: -100 to +100 A
- Operating voltage: 12 V for backlighting
- Dial: Black
- Analog signal: Direct current measurement
- Installation depth: 67.5 mm
Compatibility and Mounting
Check the bolt hole diameter, the available space behind the dashboard, and the wiring diagram.
-
Diameter in mm52
-
Background ColorBlack
-
Range in Amperes-100/100
