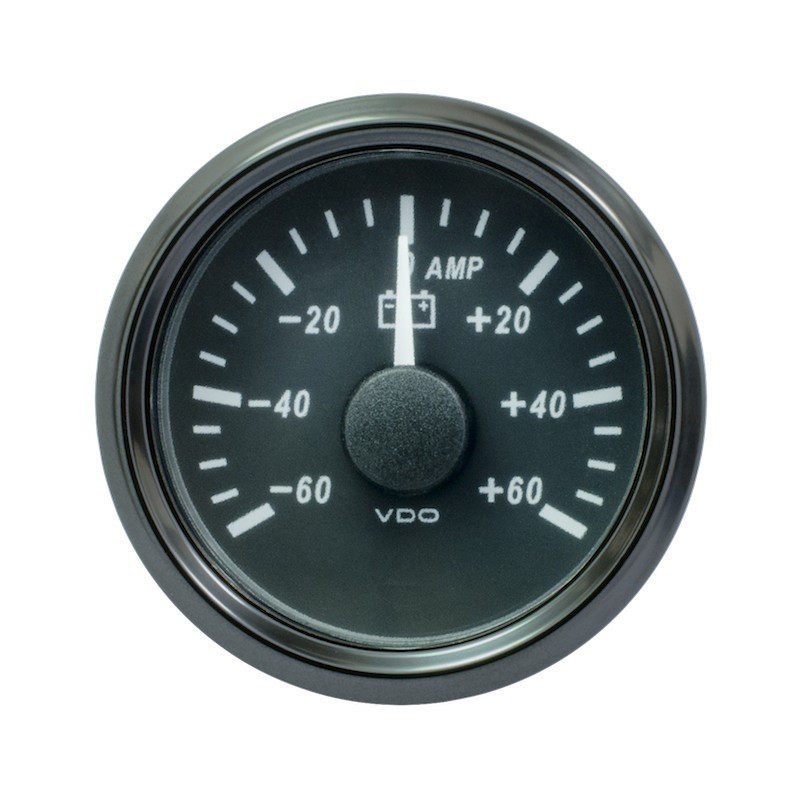

VDO SingleViu Ammeter, Ø52 mm, -60 to +60 A
The VDO SingleViu ammeter displays the charging or discharging current on a black dial. Its 52-mm bolt hole diameter allows for integration into the dashboard. The display range is from -60 to +60 A.
The reading indicates the direction of current in the monitored circuit. The analog input uses a 60 mV shunt compatible with this instrument’s current range. The SingleViu series also supports the CAN bus with the SAE J1939 protocol. The operating mode must be compatible with the installation.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: A2C3833080001
- Type: Ammeter
- Range: SingleViu
- Bolt hole diameter: 52 mm
- Display range: -60 to +60 A
- Operating voltage: 8 to 32 V DC
- Dial: Black
- Analog signal: Shunt 0 to 60 mV
- Communication: Analog or CAN SAE J1939
- Connector: 8-pin Molex
- Lighting: Programmable multicolor LED
- Connecting cable: Must be ordered separately
Compatibility and Mounting
Check the bolt hole diameter, the available space behind the dashboard, and the wiring diagram.
-
Diameter in mm52
-
Background ColorBlack
