12x125 60° tapered copper-plated steel nut - A.I. Tech

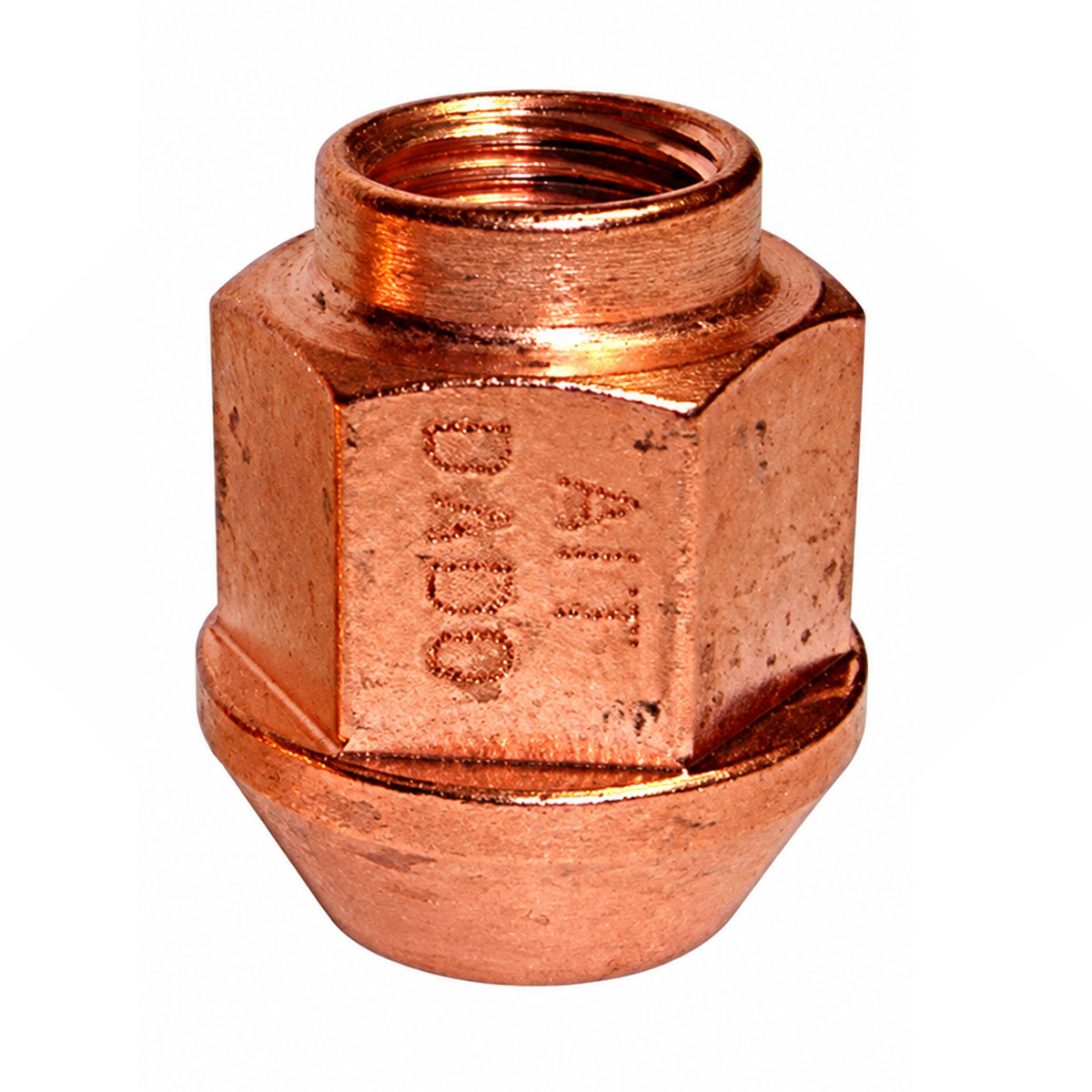

The A.I. Tech wheel nut with M12 × 1.25 threading features a 60° tapered seat for mounting a compatible rim. Its through-hole design allows the stud to pass through the nut.

Made of 11SMnPb37 steel, this wheel nut is suitable for rally and track use. Its copper-trimmed finish facilitates tightening and loosening on the studs, particularly at the high temperatures associated with competitive braking. It also helps protect the nut against corrosion.

It has an overall height of 25 mm, an outside diameter of 23 mm, and a 19 mm hex drive.

Technical Specifications

• Brand: A.I. Tech.
• Part Number: DADO.
• Type: open-end wheel nut.
• Thread: M12 × 1.25.
• Seat: 60° conical.
• Material: 11SMnPb37 steel.
• Surface treatment: copper plating.

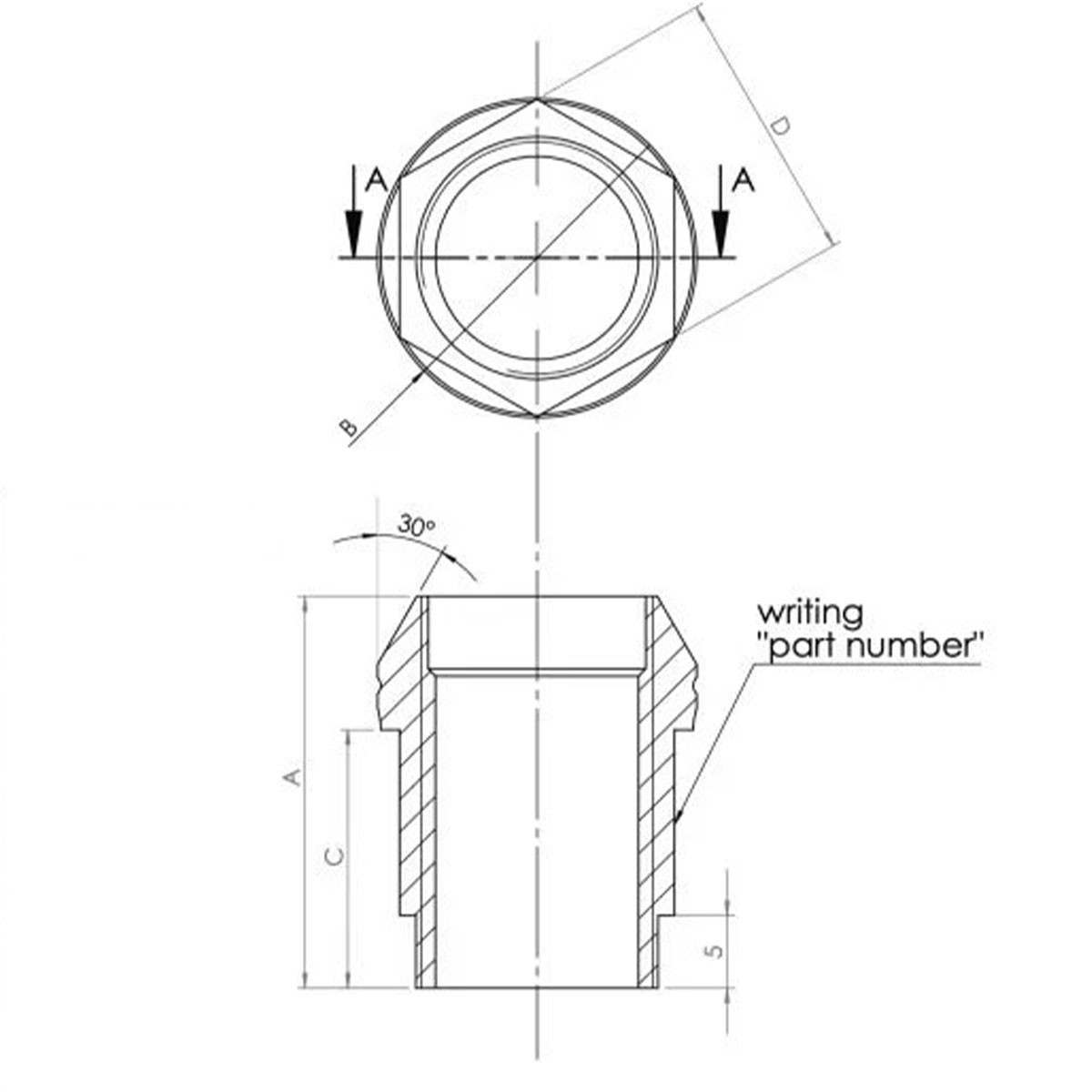

• Overall height — dimension A: 25 mm.
• Outside diameter — dimension B: 23 mm.
• Dimension C on the drawing: 14 mm.
• Wrench size — size D: 19 mm.
• Application: rally and track.

Compatibility and Mounting

For use with an M12 × 1.25 threaded stud and a rim with a 60° taper. Check the thread engagement and the available space for the socket before mounting.
