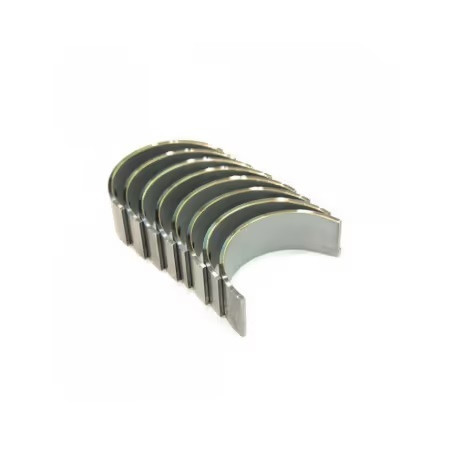

Connecting Rod Bushings (dimension .030) Standard ACL for MINI (997cc / 998cc) Inline 4
Reference:
ACL-4B2201-030
Supplier Ref.:
ACL-4B2201-030
Connecting Rod Bushings (dimension .030) Standard ACL for MINI (997cc / 998cc) Inline 4
ACL Duraglide crankshaft bearings are designed to replace your vehicle's original crankshaft bearings. These OEM quality bushes are close to the original bushes allowing a perfect application on your engine.
The ACL-4B2201-030 is specially designed for MINI (997cc / 998cc) Inline 4 engines offering perfect tolerance for precise connecting rod fit.
These bushings have a rib of 0.030’, i.e. an additional thickness of 0.762 mm.
Specifications :
Part number : ACL-4B2201-030
Tolerance : 0.030’ or 0.762 mm for optimum precision
Material : Duraglide (OEM quality)
Recommended use: Standard / Replacement for original bearings
Benefits : Precise fit and increased durability
Dimensions:
Maximum overall length: 22.35 mm
Minimum axle size: 41.285 mm
Maximum axle size: 41.298 mm
Minimum tunnel size: 44.971 mm
Maximum tunnel size: 44.983 mm
Max wall to crown: 1,824 mm
Minimum vertical oil clearance:
Max vertical oil clearance:
Compatibility:
MINI
997cc, 998cc Inline 4
Important note
Each set of pads is sold sealed by the manufacturer to guarantee the protection, quality, and authenticity of the product. It is essential to check the references and dimensions before opening.
In order to maintain optimal reliability for all our customers, returns are only possible for products whose plastic packaging has not been opened.
