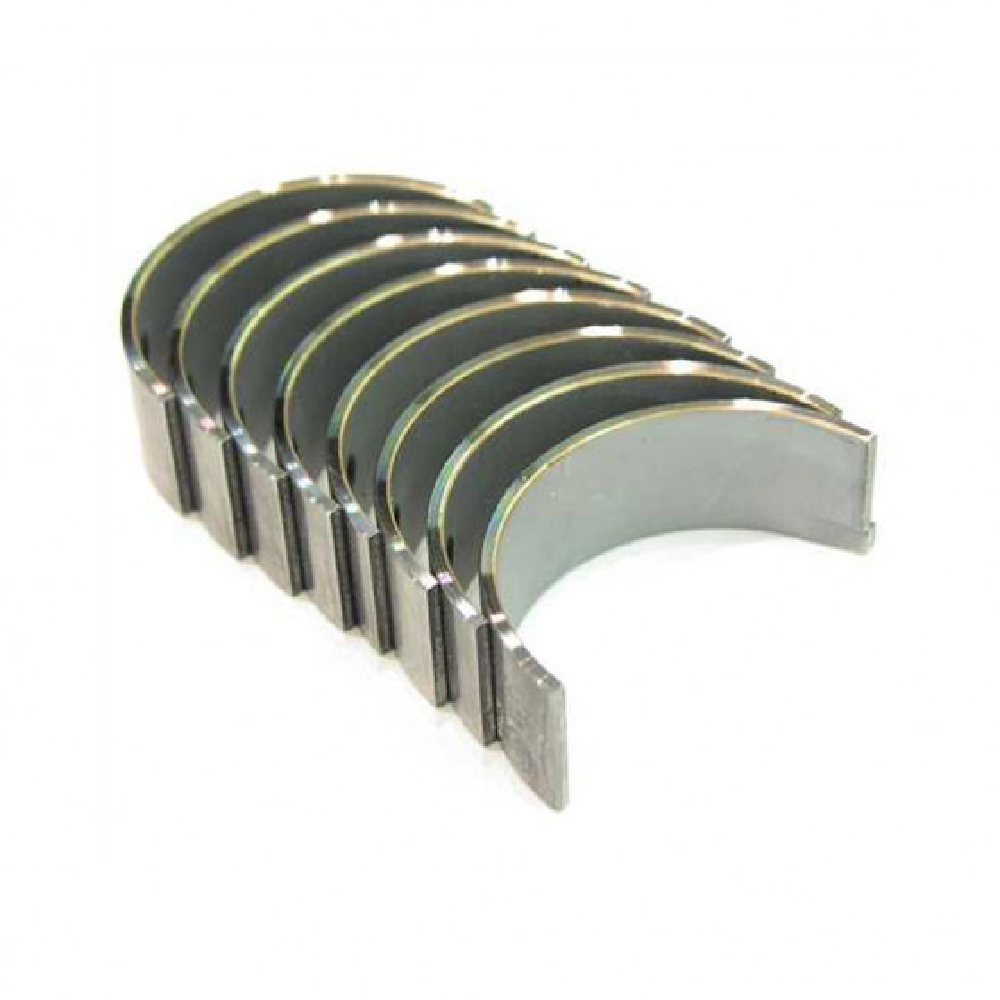

ACL connecting rod bearings for BMW N20B20, N20B26
ACL Trimetal bearings (hardened steel + copper + nickel) are designed for racing use. They reduce friction, improve operating temperatures and optimise oiling.
The ACL-4B1584H-STD model is specially designed for BMW engines (N20B20, N20B26 ), offering perfect tolerance for precise connecting rod adjustment.
These bearings are offered in STD rib and also in repair rib.
Specifications :
Reference: ACL-4B1584H-STD
Tolerance: Standard size (STD)
Material: Tri-metal alloy (copper, lead, tin)
Recommended use: Motorsport, competition, engine preparation
Advantages : Increased abrasion resistance, optimum heat dissipation, precise fit
Dimensions:
Maximum overall length: 17.55 mm
Minimum axle size: 49.973 mm
Maximum axle size: 49.993 mm
Minimum tunnel size: 53.600 mm
Maximum tunnel size: 53,616 mm
Max wall to crown: 1,793 mm
Minimum vertical oil clearance:
Max vertical oil clearance:
Compatibility :
BMW
- N20B20, N20B26 1997cc Turbo
Each set of pads is sold sealed by the manufacturer to guarantee the protection, quality, and authenticity of the product. It is essential to check the references and dimensions before opening.
In order to maintain optimal reliability for all our customers, returns are only possible for products whose plastic packaging has not been opened.
