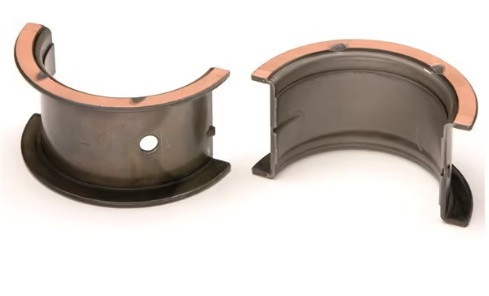

Main bearing shells (repair rib: 0.001") Standard ACL for Renault (F4R)
ACL Race Series crankshaft bearings are renowned for their reliability in extreme conditions. Designed for Renault F4R R3 engines, these tri-metal alloy bearings (hardened steel, copper, lead, tin) offer micrometric tolerance suitable for competition and engine tuning.
Thanks to their reduced thickness of 0.001’ (0.025 mm), they guarantee superior running clearance, improving oiling, reducing internal friction and lowering engine operating temperatures. All this without compromising reliability, even at high engine revs.
Features:
Reference: ACL-5M7819HX-STD
Tolerance: Standard size (STD) / repair tolerance 0.001’ / 0.025 mm
Material: Tri-metal alloy (copper, lead, tin)
Recommended use: Motorsport, competition, engine preparation
Advantages: Increased wear resistance, optimal heat dissipation, precise fit, reduced internal friction, better fatigue resistance at high temperatures.
Dimensions:
Maximum total length: 19.05 mm
Taxle size: 51.995 mm
Maximum tunnel size: 54.035 mm
Maximum vertical oil clearance: 0.063 mm
Maximum wall thickness at crown: 1.020 mm
Minimum axle size: 51.965 mm
Minimum tunnel size: 54.000 mm
Minimum vertical oil clearance: 0.025 mm
Warning: These values are provided for information purposes only. It is essential to check the clearance using a feeler gauge or micrometer during installation.
Compatibility:
RENAULT
— Renault Sport F4R R3
Each set of pads is sold sealed by the manufacturer to guarantee the protection, quality, and authenticity of the product. It is essential to check the references and dimensions before opening.
In order to maintain optimal reliability for all our customers, returns are only possible for products whose plastic packaging has not been opened.
