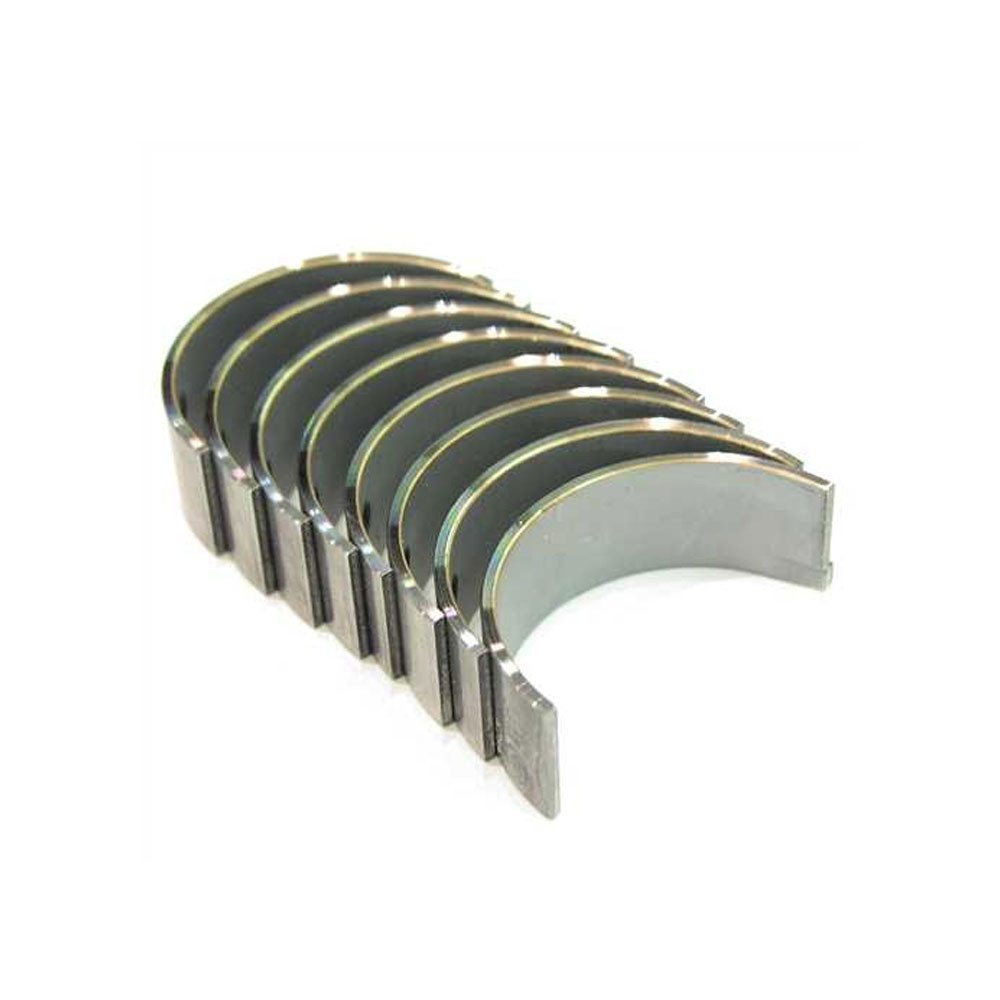

Crankshaft bearings (repair rib: 0.001") Standard ACL for SUZUKI G13A / G13B / G13BA / G13BB

Crankshaft bearings (repair rib: 0.001") Standard ACL for SUZUKI G13A / G13B / G13BA / G13BB

ACL Trimetal bearings (hardened steel + copper + nickel) are designed for racing use. They reduce friction, improve operating temperatures and optimise oiling.

The ACL-5M8337HX-STD model is specially designed for Suzuki engines, offering perfect tolerance for precise connecting rod adjustment.

These bearings are 0.001’ ( 0. 025 mm) thinner, allowing greater operating clearance !

Specifications :

Part number: ACL-5M8337HX-STD

Tolerance: Standard size (STD) / finer dimension of 0.001" / 0.025 mm

Material: Tri-metal alloy (copper, lead, tin)

Recommended use: Motorsport, competition, engine preparation

Advantages : Increased abrasion resistance, optimum heat dissipation, precise fit

Dimensions:

Maximum overall length: 18 mm

Minimum axle size: 44.982 mm

Maximum axle size: 44,994 mm

Minimum tunnel size: 48.998 mm

Maximum tunnel size: 49,018 mm

Max wall to crown: 1,987 mm

Maximum vertical oil clearance:

Minimum vertical oil clearance:

Engine compatibility:

SUZUKI

- G13A / G13B / G13BA / G13BB - 1298cc/1324cc 4 Cyl
