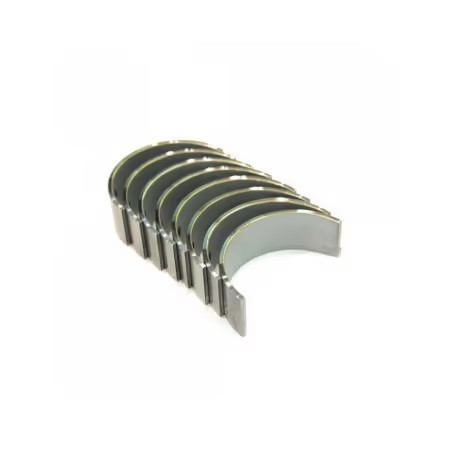

Main bearing shells (Size .020) Standard ACL for MINI - 1275cc Inline 4 (Up to 1983)

Main bearing shells (Size .020) Standard ACL for MINI - 1275cc Inline 4 (Up to 1983)

ACL Duraglide crankshaft bearings are designed to replace your vehicle's original crankshaft bearings. These OEM quality bushes are close to the original bushes allowing a perfect application on your engine.

The ACL-3M2203-020 is specially designed for MINI engines (1275cc Inline 4 /Up to 1983) offering a perfect tolerance for a precise connecting rod fit.

These bearings have a rib of 0.020’, i.e. an additional thickness of 0.508 mm.

Specifications :

Reference : ACL-3M2203-020

Tolerance : 0.020’ or 0.508 mm for optimum precisiona

Material : Duraglide (OEM quality)

Recommended use: Standard / Replacement for original bearings

Benefits : Precise fit and increased durability

Dimensions:

Maximum overall length: 25.52 mm

Minimum axle size: 44.463 mm

Maximum axle size: 44.475 mm

Minimum tunnel size: 50.813 mm

Maximum tunnel size: 54.525 mm

Max wall to crown: 1,828 mm

Minimum vertical oil clearance:

Max vertical oil clearance:

Compatibility:

MINI

- 1275cc Inline 4 (Up to 1983)
