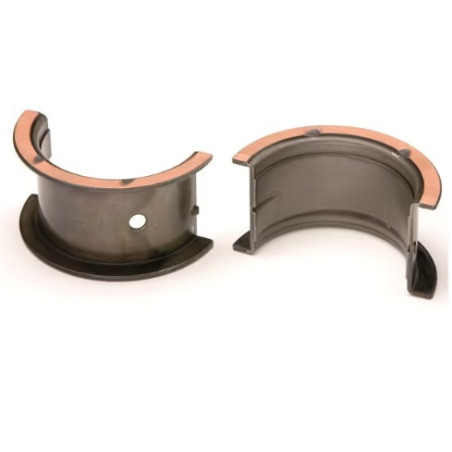

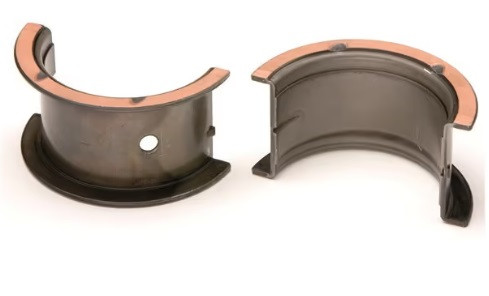

Standard ACL RACE crankshaft bearings for Audi and Volkswagen

Standard ACL RACE crankshaft bearings for Audi and Volkswagen

ACL Trimetal bearings (hardened steel + copper + nickel) are designed for racing use. They reduce friction, improve operating temperatures and optimise oiling.

The 5M5585H-STD model is specially designed for Audi and Volkswagen engines offering perfect tolerance for precise connecting rod adjustment.

These bushes are available in STD rib and also in repair rib.

Specifications :

Supplier reference: ACL-5M5585H-STD

Tolerance: Standard size (STD)

Material: Tri-metal alloy (copper, lead, tin)

Recommended use: Motorsport, competition, engine preparation

Advantages : Increased wear resistance, optimum heat dissipation, precise fit

Dimensions:

Maximum overall length: 15.50 mm

Minimum axle size: 51.958 mm

Maximum axle size: 51.978 mm

Minimum tunnel size: 57 mm

Maximum tunnel size: 57.019 mm

Max wall to crown: 2,505 mm

Maximum vertical oil clearance:

Minimum vertical oil clearance:

Compatibility:

AUDI

- TFSI 1984cc 4 cyl (EA888 Gen 3) - VW Golf R, Gti (Mk7)

- TFSI 1798cc 4 cyl (EA888 Gen 3)

VOLKSWAGEN

- TFSI 1984cc 4 cyl (EA888 Gen 3)
