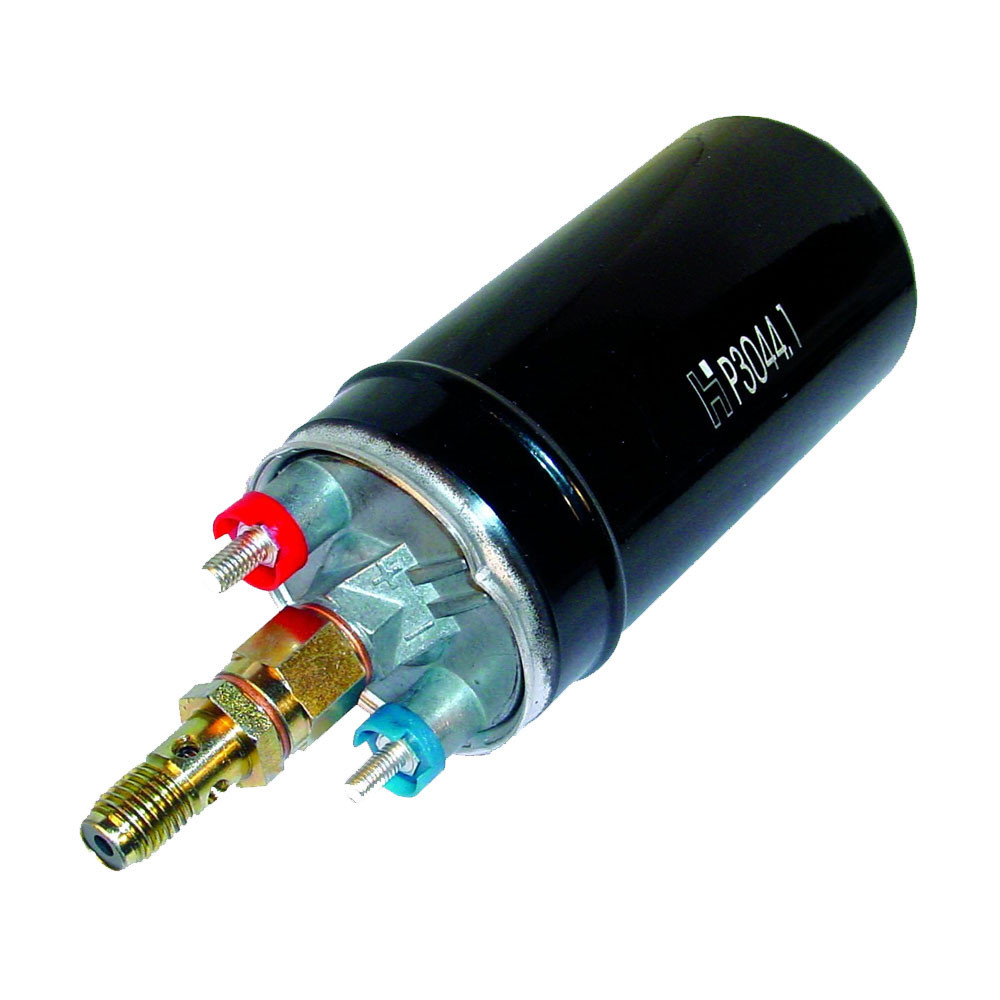

Out-tank fuel pump 3B-10.4B Max intlet 18mm outlet 12x1.5

With a minimum pressure of 5 bar and a maximum pressure of 12 bar, this pump ensures a constant fuel supply to your engine. It is currently the best alternative available to the original Bosch 058025979 pump.

Operating at a voltage of 12V, this pump is compatible with a variety of vehicles. Featuring an 18x150 intake thread and a 12x150 outlet thread, it installs easily into your existing fuel system.

Weighing 1030g and measuring 194mm in length, it is easy to handle and install. This pump offers a minimum flow rate of 165 L/h and an impressive maximum flow rate of 378L/l, ensuring optimal fuel flow for your engine, even in the most demanding conditions.

In addition, its external mounting allows for quick maintenance and easy intake in case of inspection. With an ideal position located as close as possible to the tank (60cm), this pump significantly reduces the risk of flow or pressure drops. Whether replacing the original pump or for engine preparation requiring higher flow, this pump offers a comfortable supply margin.

Warning! To protect the pump and the fuel system in the long term, it is essential to fit a pre-filter upstream before installation.

Features:

• Intake coupling: 18x1.5 female
• Outlet coupling: 12x1.5 banjo with non-return valve
• Maximum flow rate (L/h): 378
• Flow rate (L/h) at 3 bar (44 psi): 318
• Flow rate (L/h) at 5 bar (73 psi): 258
• Max. pressure (bar): 10.4
• Distance from reservoir (cm): 60
• Length (mm): 194 mm
• Diameter (mm): 60 mm
• Weight (kg): 1.03 kg
