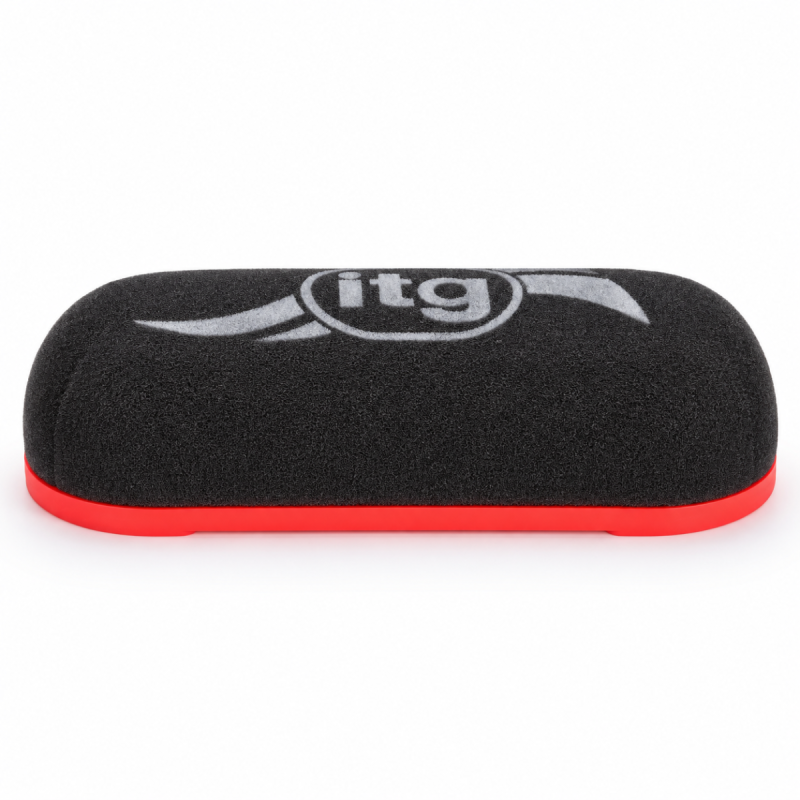

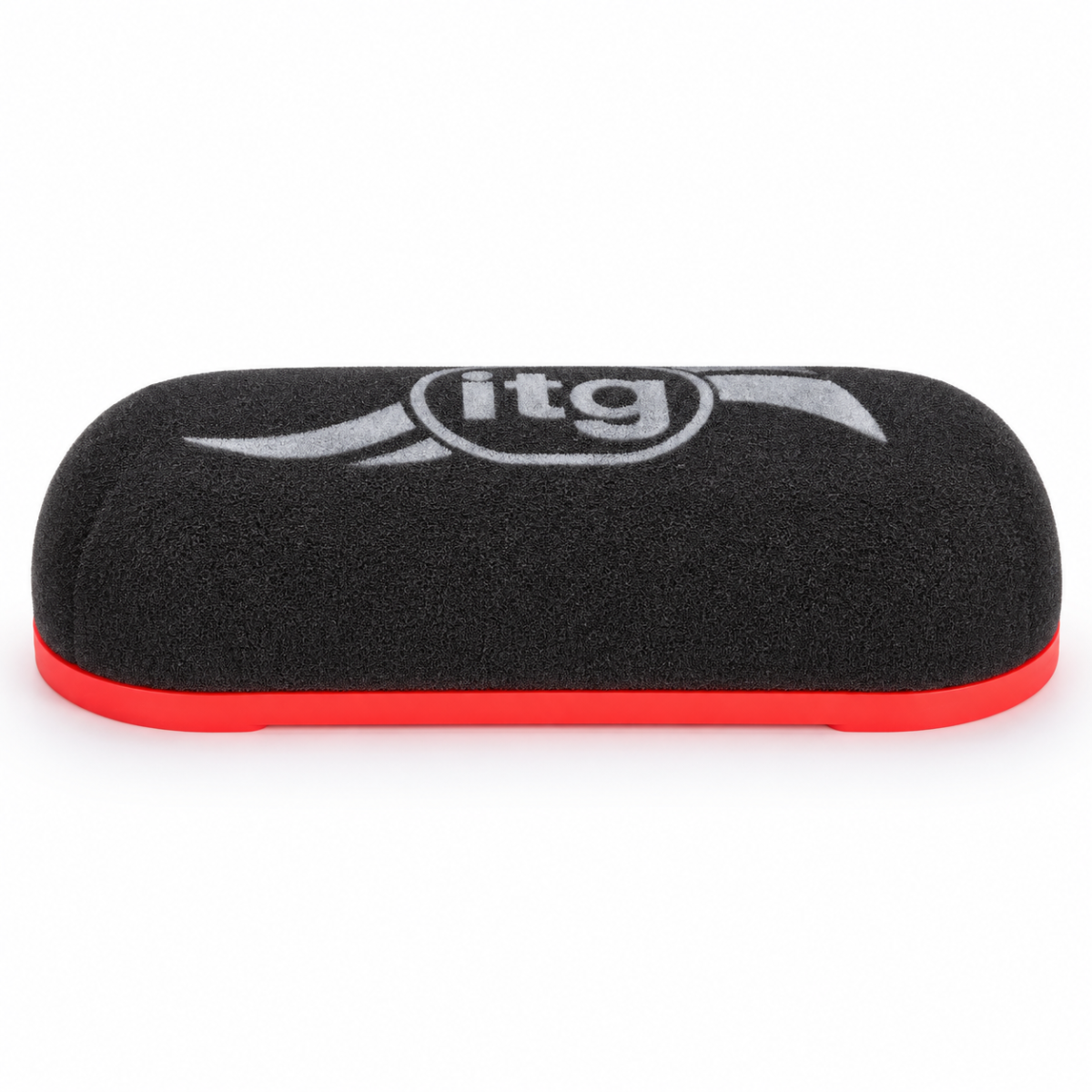

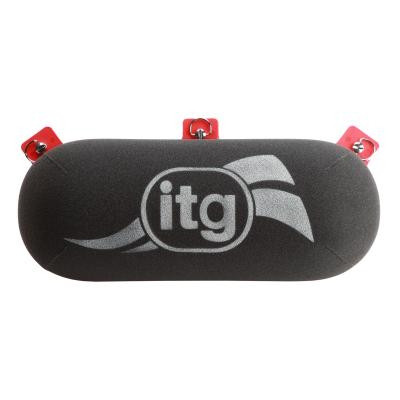

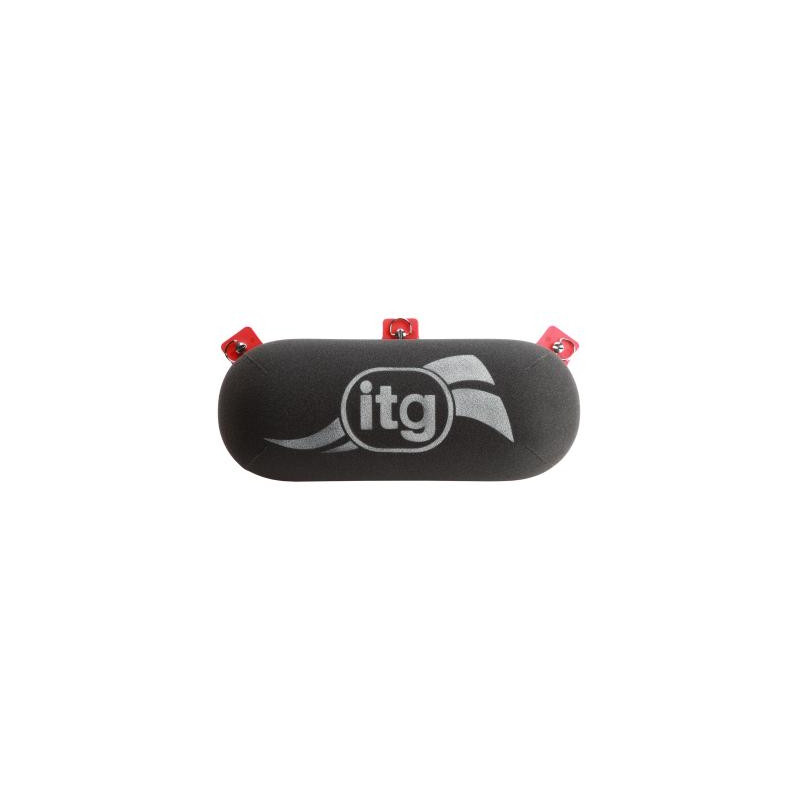

ITG Megaflow JC50 Domed Air Filter - 100 mm

The ITG Megaflow JC50 domed air filter combines multiple air intake ports or funnels under a single foam filter element. This JC50/S/100 version measures 436 x 148 mm and mounts on a compatible air cleaner baseplate from the JC50 range.

Its domed “Sausage” profile offers an internal height of 100 mm and an external height of 125 mm. The choice of height depends on the configuration of the intake horns and the available space in the engine compartment.

To prepare for mounting, verify that the JC50 base is compatible with the intake and its mounting points. Check the clearance between the intake manifolds and the inner flank of the filter, as well as the space around the assembly and under the hood.

Held in place by a red frame, the foam filter element is washable and reusable. It must be oiled before use, then cleaned and re-oiled according to ITG’s recommendations.

Technical Specifications of the ITG Megaflow JC50 Domed Air Filter

• Brand: ITG
• Range: Megaflow
• Type: foam air filter
• Shape: domed, “Sausage” version
• Length: 436 mm
• Width: 148 mm
• Internal height: 100 mm
• External height: 125 mm
• Frame color: red
• Mounting: on a compatible base from the JC50 range
• Maintenance: washable and reusable
• Oiling: required before use
• Manufacturer part number: JC50/S/100

Key features of the ITG Megaflow JC50 domed air filter

• A single filter element for multiple intake ports
• Dimensions: 436 x 148 mm
• “Sausage”-shaped profile with an internal height of 100 mm
• Mounting on a JC50-compatible base
• Washable foam that can be reused after proper maintenance
