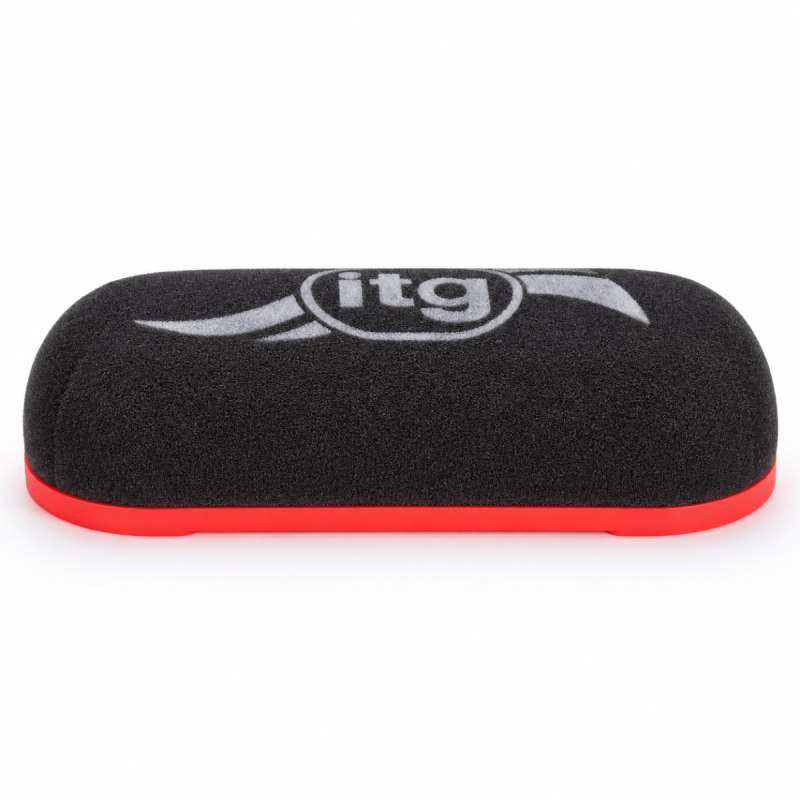

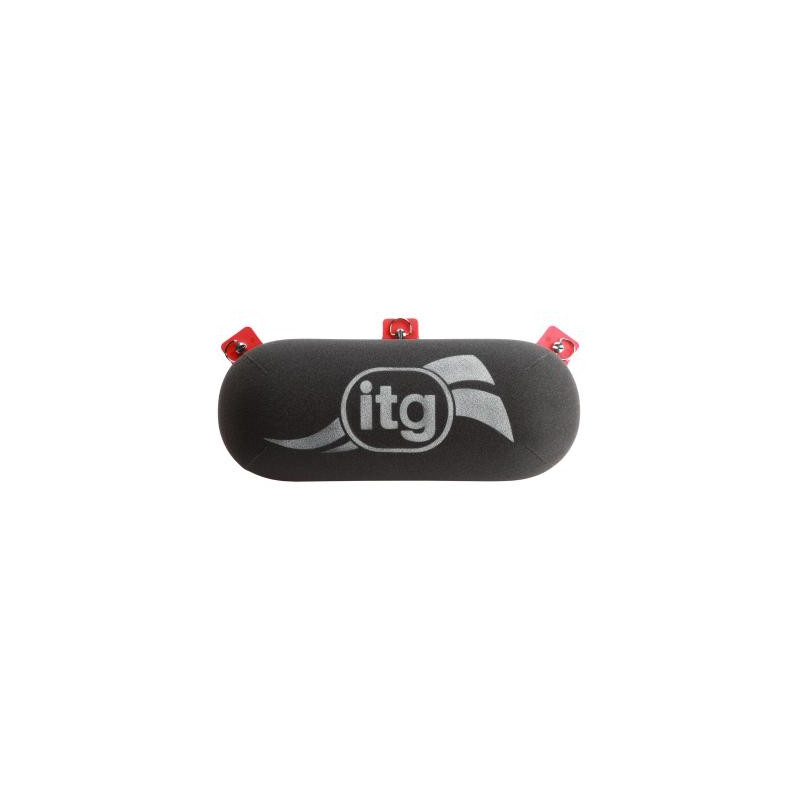

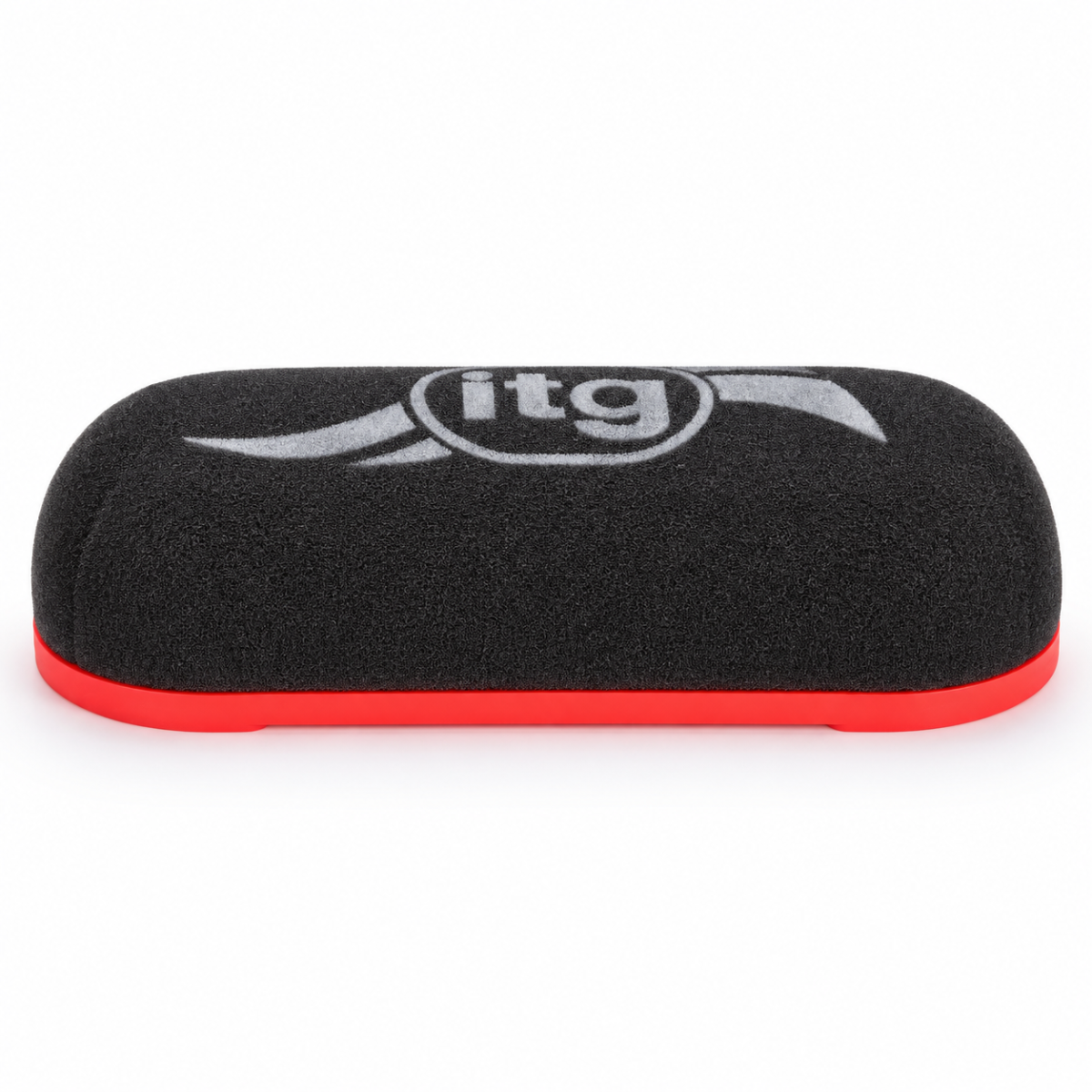

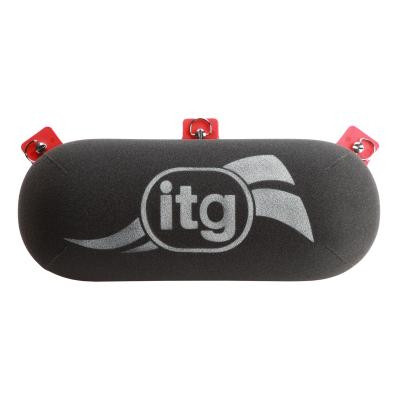

ITG Megaflow JC50 Domed Air Filter - 125 mm

The ITG Megaflow JC50 domed air filter filters air from multiple intake inlets or horns combined under a single foam element. The JC50/S/125 version maintains a size of 436 x 148 mm and requires a compatible air cleaner baseplate from the JC50 range.

This model features a domed “Sausage” profile, with an internal height of 125 mm and an external height of 150 mm. Its overall dimensions must be verified based on the height of the intake horns, their position, and the available clearance under the hood.

Before installation, select a JC50 mounting base suitable for the intake and check its mounting components. Also verify the space between the ends of the intake tubes and the flank of the filter, as well as the clearance around the filter element.

The filter features a red frame and washable, reusable foam. The element must be oiled before use. Maintenance involves cleaning and re-oiling with appropriate products, according to ITG recommendations.

Technical Specifications of the ITG Megaflow JC50 Domed Air Filter

• Brand: ITG
• Range: Megaflow
• Type: foam air filter
• Shape: domed, “Sausage” version
• Length: 436 mm
• Width: 148 mm
• Internal height: 125 mm
• External height: 150 mm
• Frame color: red
• Mounting: on a compatible base from the JC50 range
• Maintenance: washable and reusable
• Oiling: required before use
• Manufacturer part number: JC50/S/125

Key features of the ITG Megaflow JC50 domed air filter

• Filters multiple intake ports through a single element
• Dimensions: 436 x 148 mm
• “Sausage”-shaped profile with an internal height of 125 mm
• Mounting on a JC50-compatible base
• Washable and reusable foam element
