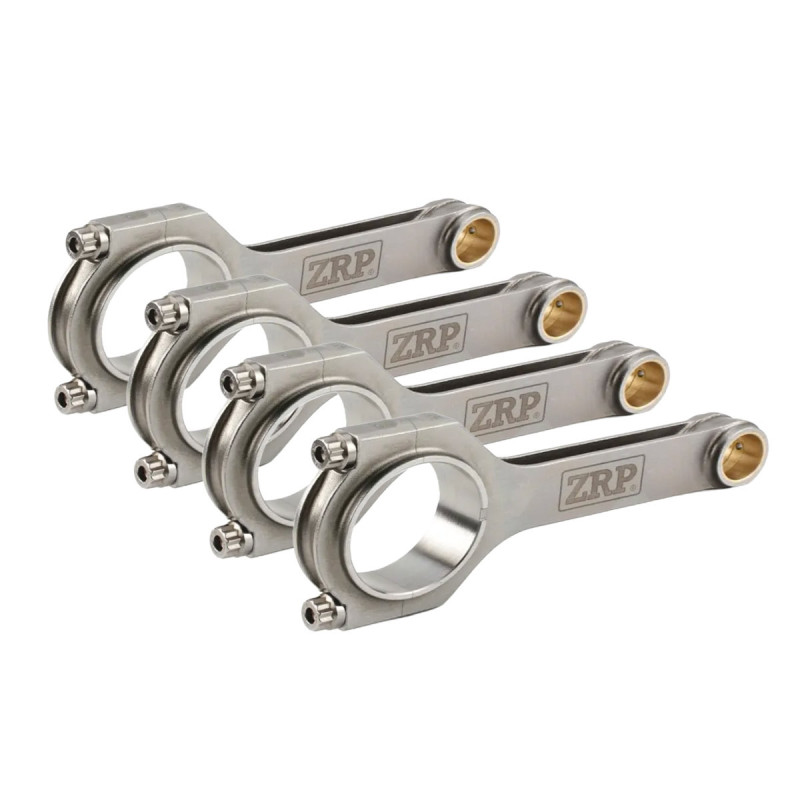

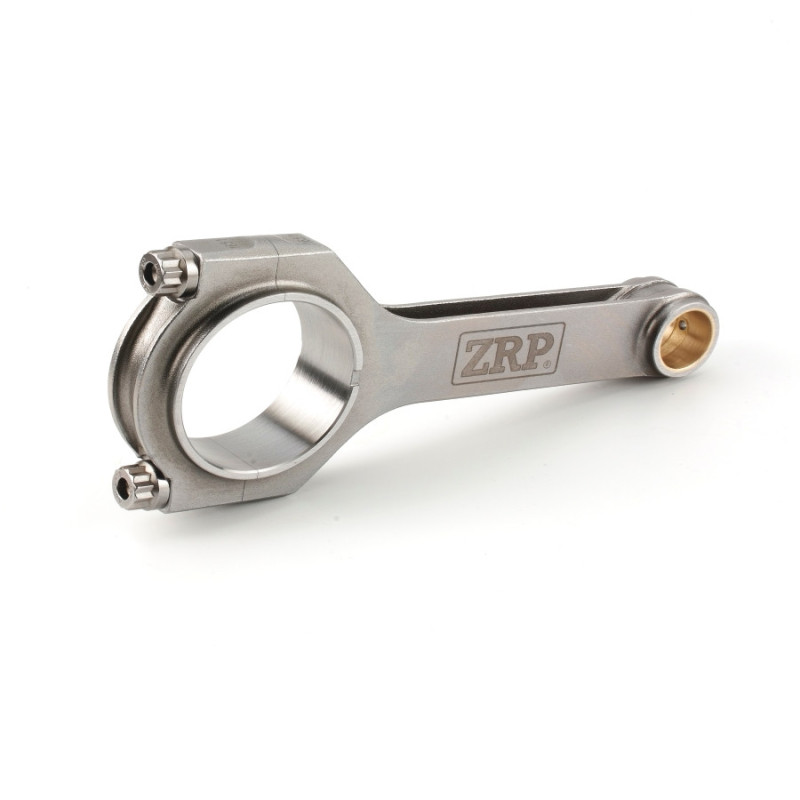

ZRP H-Beam Forged Connecting Rods for VW Audi 1.8 20V Turbo & 2.0 TSI EA113 - R-AUD-001-H
Reference:
ZRP-R-AUD-001-H
Supplier Ref.:
R-AUD-001-H
The ZRP H-Beam connecting rods for VW/Audi 1.8T 20V & 2.0 TSI EA113 engines are designed for high-performance engine builds and demanding rebuilds.
Their premium forged construction provides outstanding strength and reliability under the extreme loads generated by high horsepower and high RPM applications. The H-Beam profile offers excellent rigidity and durability for demanding engine builds.
Manufactured to extremely tight tolerances, ZRP connecting rods meet the requirements of professional engine builders and high-output performance engines.
They are the ideal solution for VW/Audi EA113 & 1.8T 20V engines.
Their premium forged construction provides outstanding strength and reliability under the extreme loads generated by high horsepower and high RPM applications. The H-Beam profile offers excellent rigidity and durability for demanding engine builds.
Manufactured to extremely tight tolerances, ZRP connecting rods meet the requirements of professional engine builders and high-output performance engines.
They are the ideal solution for VW/Audi EA113 & 1.8T 20V engines.
-
Engine codeAEB
AGU
AMK
ANB
APX
APY
AWM
AWU
AXX
BAM
BGB
BHZ
BPJ
BUL
BWA
BWE
BWT
BYK
CDNB
Stroke -
Weight in kg0,45
-
Vehicle makeAUDI / VOLKSWAGEN
-
Conrod ShapeH-Beam Conrod
-
Center-to-center length in mm144,00
-
Piston pin diameter in mm20,00
-
Conrod head diameter in mm50,60
-
Conrod head width in mm24,89
-
Threads on conrod bolts3/8"
-
Type of fasteners includedARP2000
-
Type of conrodStandard Forged Conrod
