ZRP Volvo C70 T5 2.3 20V B5234 I-shaped forged connecting rods – set of 5
Reference:
ZRP-R-VOL-005-I-5
Supplier Ref.:
R-VOL-005-I-5

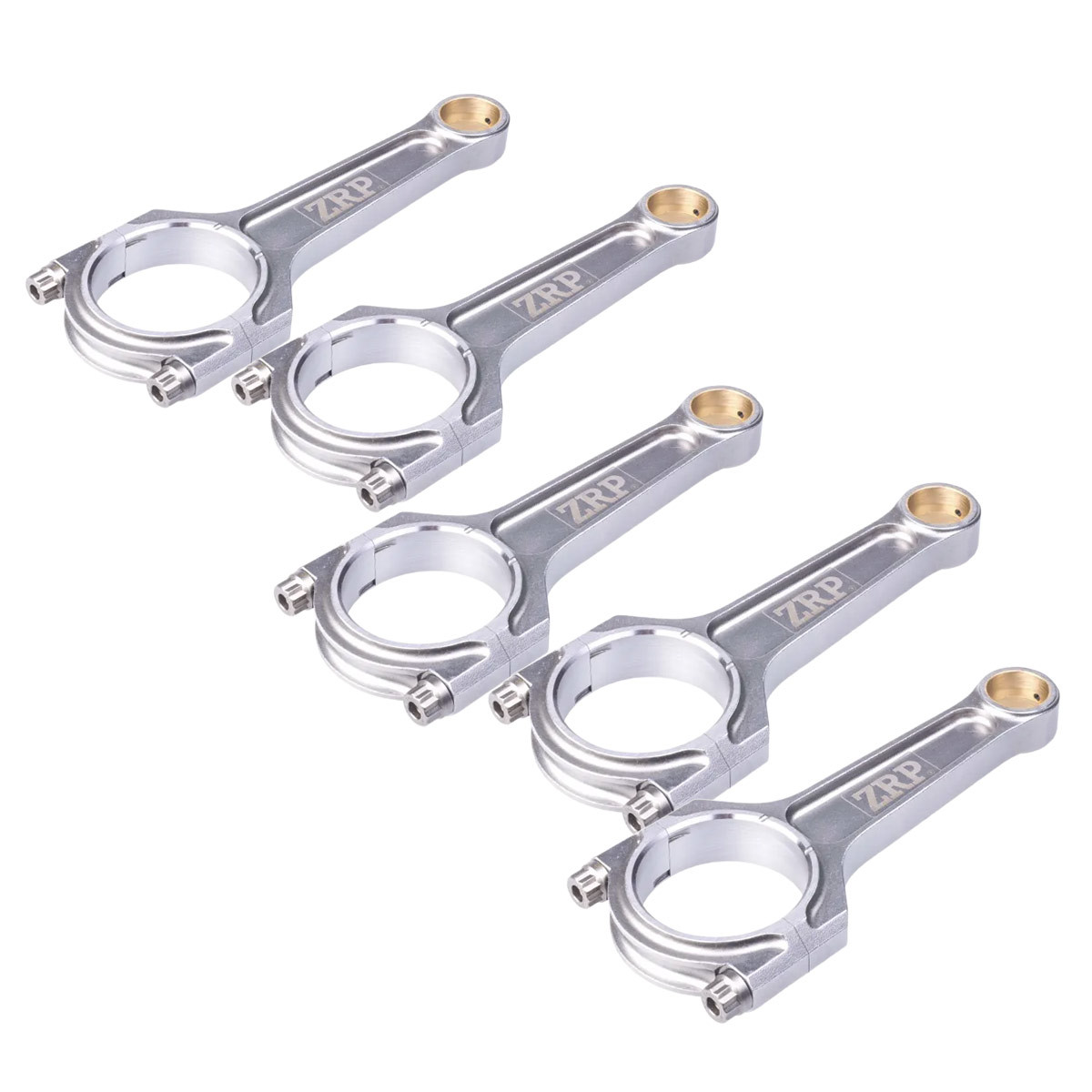

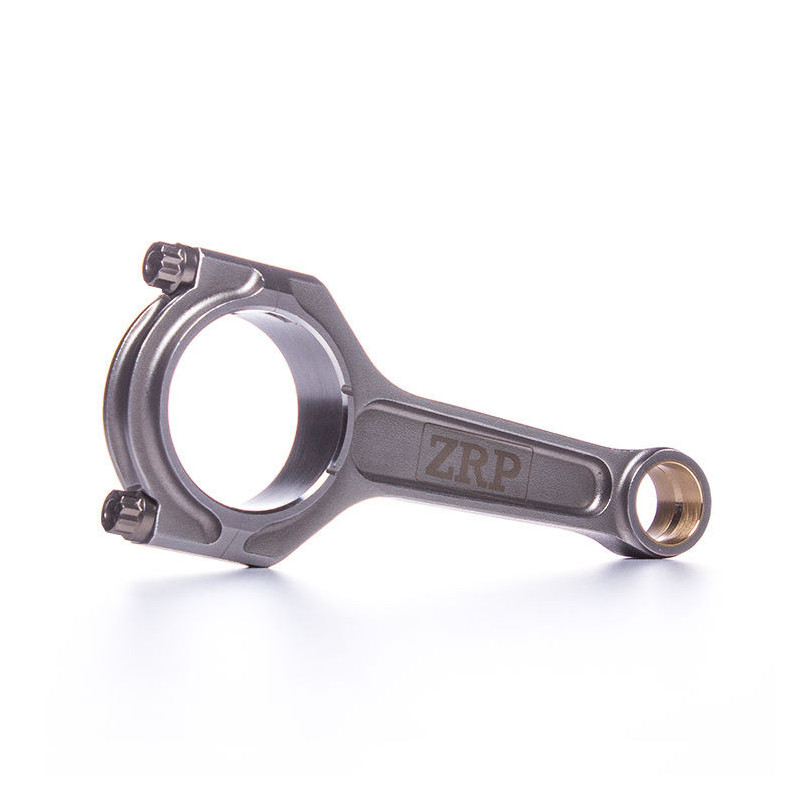

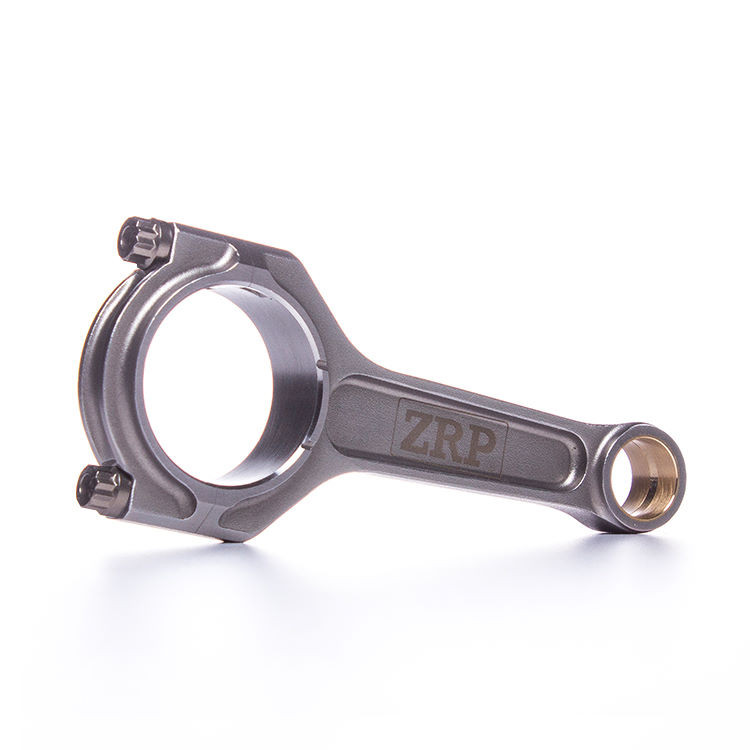

The ZRP I-shaped forged connecting rods for the Volvo C70 T5 2.3 L 20V B5234 are designed for engine upgrades requiring high rigidity and fatigue resistance. This set of 5 4340 steel connecting rods has a center distance of 139.50 mm and accommodates 23 mm gudgeon pins.
The AMPCO 18 connecting rod small ends feature a radial groove that serves as an oil reservoir. Each connecting rod small end is equipped with 3/8" ARP2000 fasteners. ARP mounting lubricant and instructions are included.
Technical Specifications
- Brand: ZRP
- Manufacturer Part Number: R-VOL-005-I-5
- Application: Volvo 2.3 L 20V, including the C70 T5
- Engine Code: B5234
- Range: Standard Series
- Profile: I-beam
- Material: 4340 forged steel
- Center-to-center length: 139.50 mm
- Gudgeon pin diameter: 23.00 mm
- Connecting rod bush housing diameter: 53.00 mm
- Conrod head width: 25.65 mm
- Connecting rod small end bushings: AMPCO 18
- Fasteners: 3/8" ARP2000
- Rated resistance to tension of fasteners:
-
Engine codeB5234
-
Weight in kg0,53
-
Vehicle makeVOLVO
-
Conrod ShapeH-Beam Conrod
-
Center-to-center length in mm139,50
-
Piston pin diameter in mm23,00
-
Conrod head diameter in mm53,00
-
Conrod head width in mm25,65
-
Threads on conrod bolts3/8"
-
Type of fasteners includedARP2000
-
Type of conrodStandard Forged Conrod
