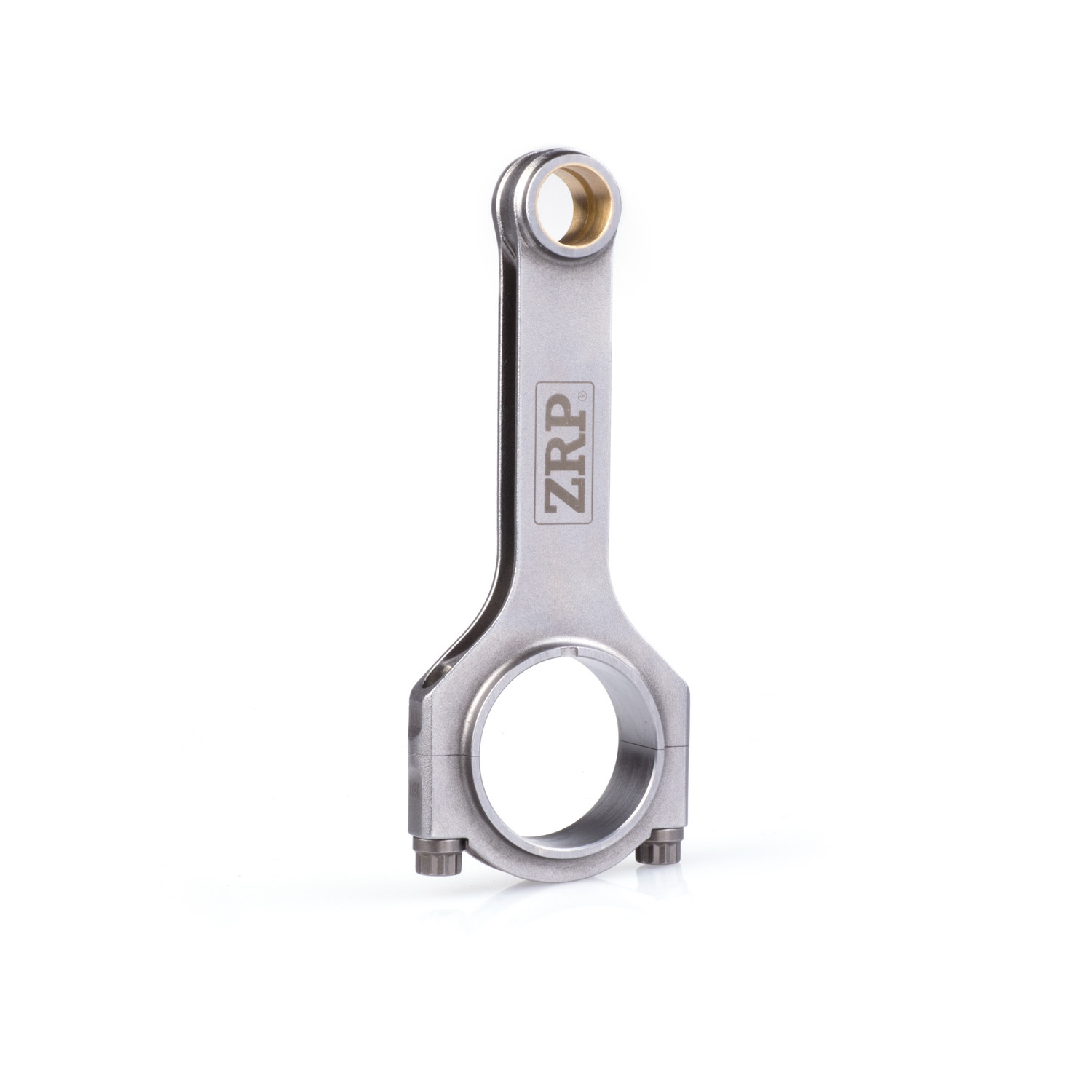

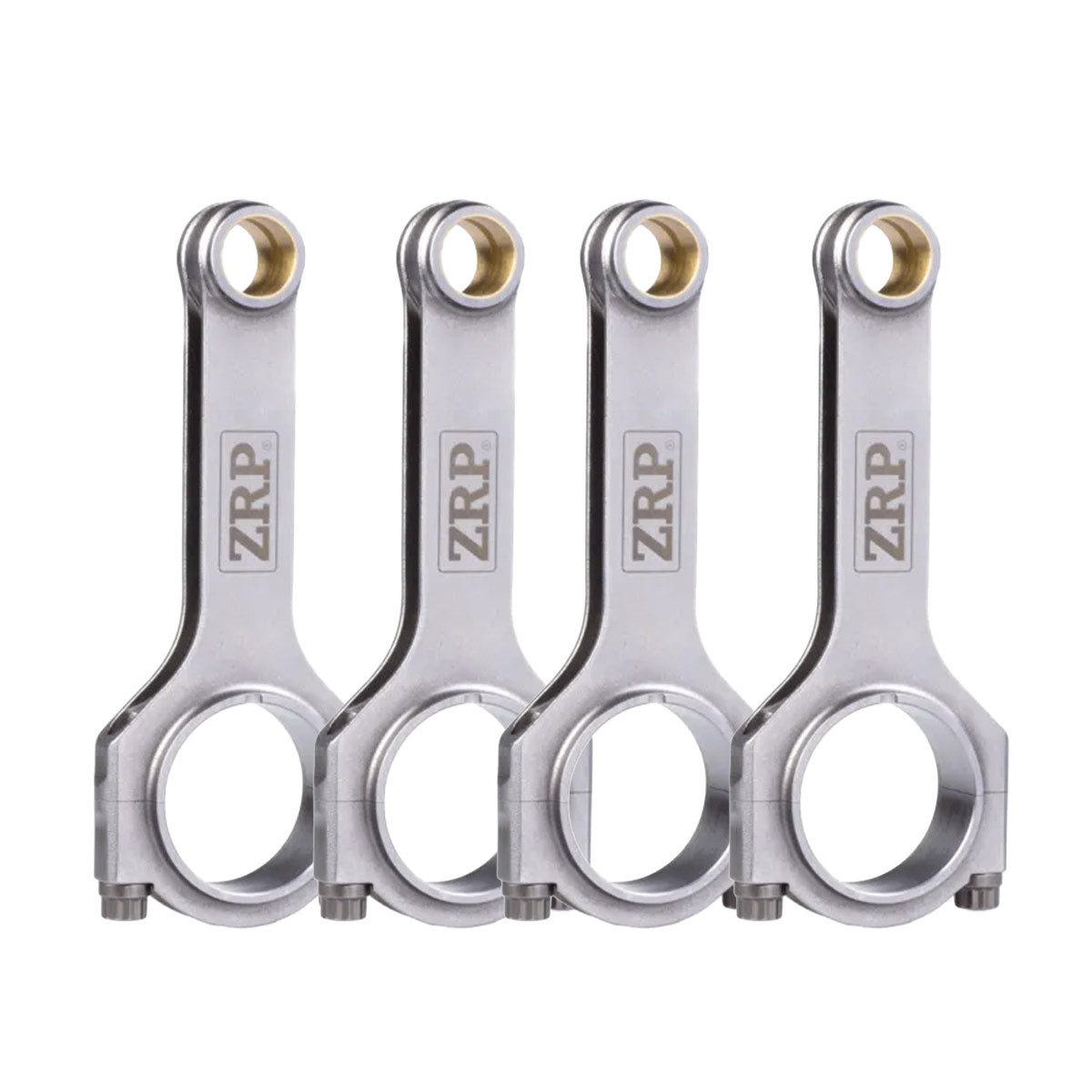

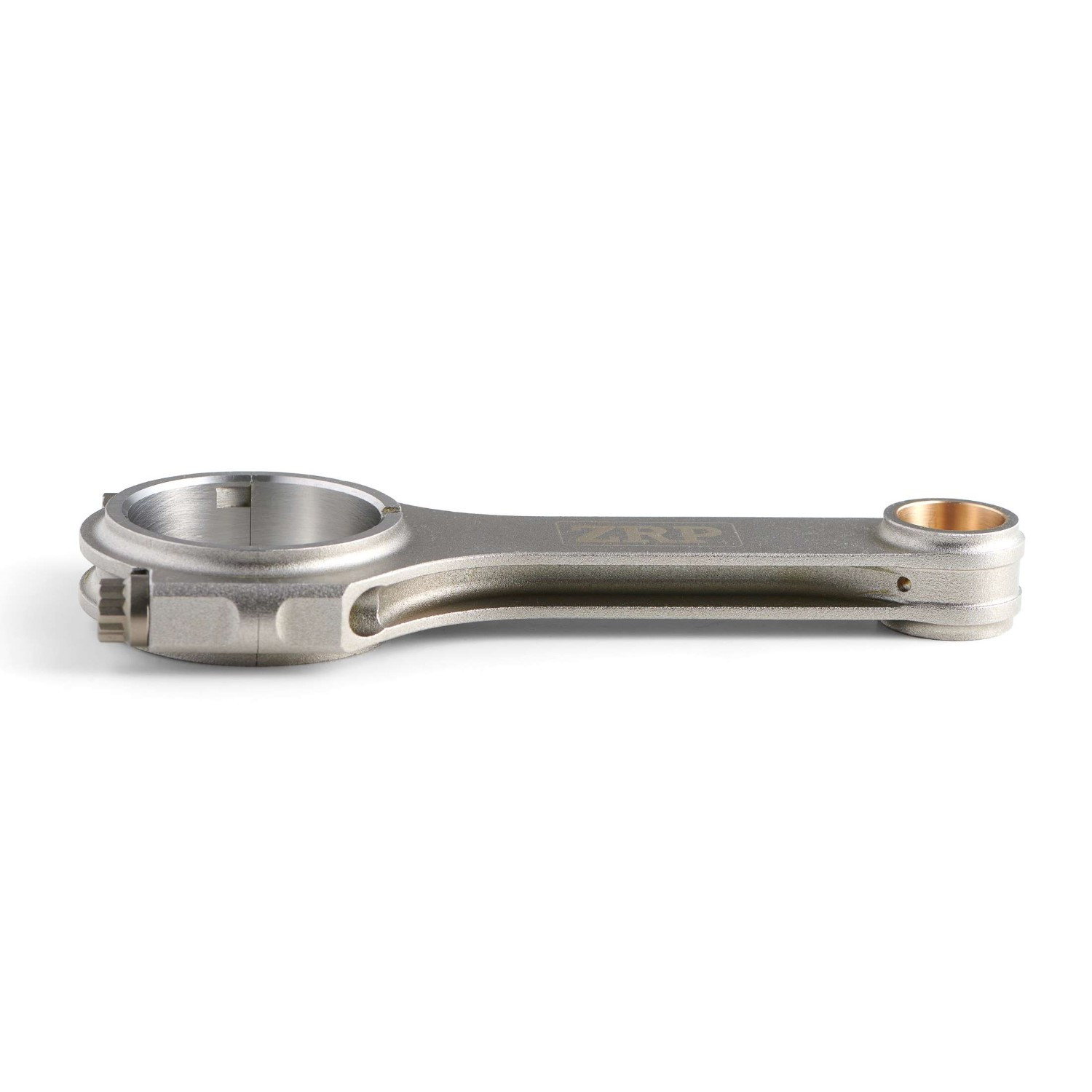

ZRP H-Beam Forged Connecting Rods for Honda F22 - R-HON-015HL
Reference:
ZRP-R-HON-015HL
Supplier Ref.:
R-HON-015HL
The ZRP H-Beam connecting rods for Honda F22 engines are designed for high-performance engine builds and demanding rebuilds.
Their premium forged construction provides outstanding strength and reliability under the extreme loads generated by high horsepower and high RPM applications. The H-Beam profile offers excellent rigidity and durability for demanding engine builds.
Manufactured to extremely tight tolerances, ZRP connecting rods meet the requirements of professional engine builders and high-output performance engines.
They are the ideal solution for Honda F22 engines.
Their premium forged construction provides outstanding strength and reliability under the extreme loads generated by high horsepower and high RPM applications. The H-Beam profile offers excellent rigidity and durability for demanding engine builds.
Manufactured to extremely tight tolerances, ZRP connecting rods meet the requirements of professional engine builders and high-output performance engines.
They are the ideal solution for Honda F22 engines.
-
Engine codeF22C
-
Weight in kg0,46
-
Vehicle makeHONDA
-
Conrod ShapeH-Beam Conrod
-
Center-to-center length in mm149,65
-
Piston pin diameter in mm23,00
-
Conrod head diameter in mm51,00
-
Conrod head width in mm23,85
-
Threads on conrod bolts3/8"
-
Type of fasteners includedARP2000
-
Type of conrodStandard Forged Conrod
