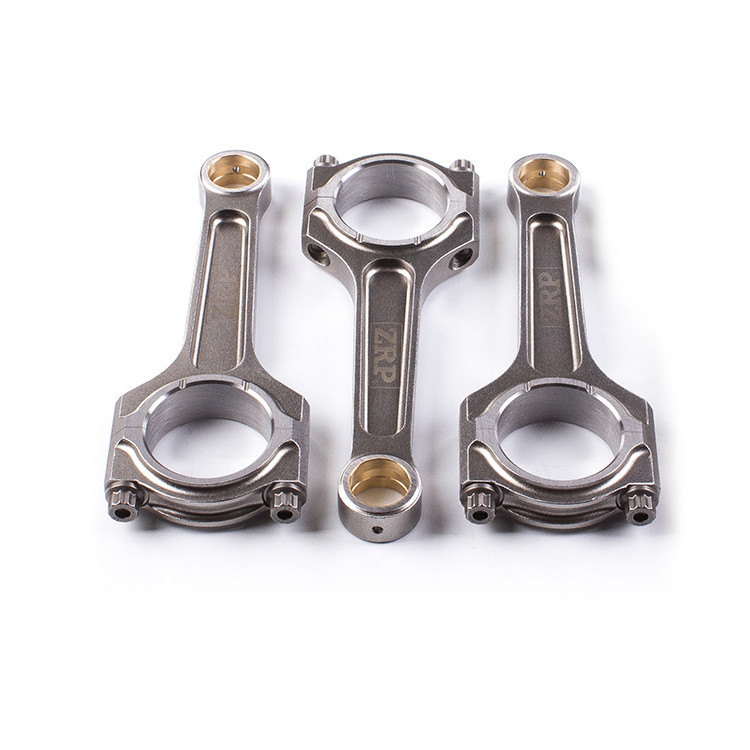

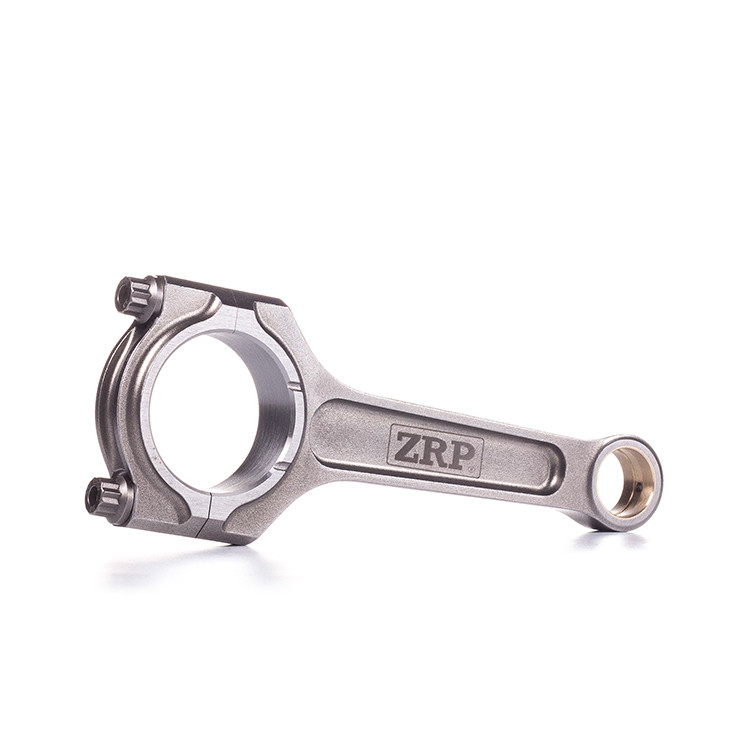

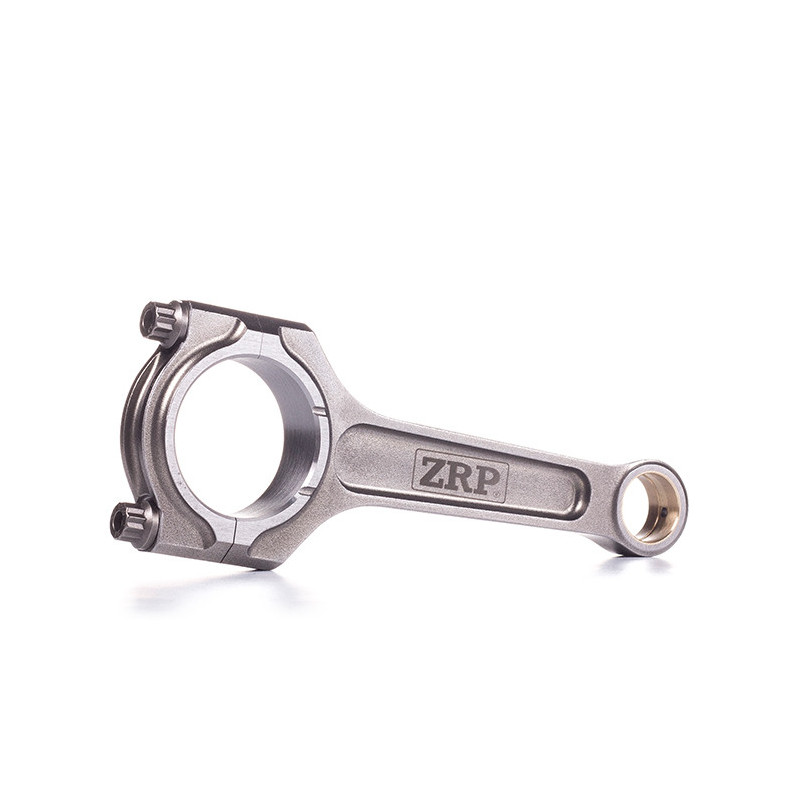

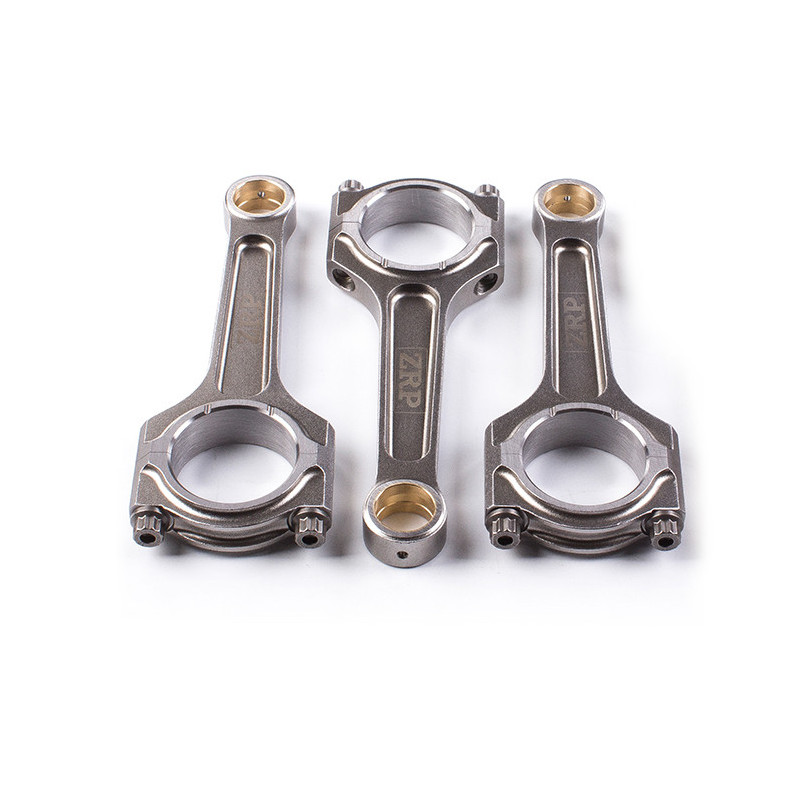

ZRP I-Beam Forged Connecting Rods for Ford 1.0 EcoBoost - R-FOR-006-I
Reference:
ZRP-R-FOR-006-I
Supplier Ref.:
R-FOR-006-I
The ZRP I-Beam connecting rods for Ford 1.0L EcoBoost engines are designed for high-performance engine builds and demanding rebuilds.
Their premium forged construction provides outstanding strength and reliability under the extreme loads generated by high horsepower and high RPM applications. The I-Beam profile delivers an excellent balance of strength and reduced weight.
Manufactured to extremely tight tolerances, ZRP connecting rods meet the requirements of professional engine builders and high-output performance engines.
They are the ideal solution for Ford 1.0L EcoBoost engines.
Their premium forged construction provides outstanding strength and reliability under the extreme loads generated by high horsepower and high RPM applications. The I-Beam profile delivers an excellent balance of strength and reduced weight.
Manufactured to extremely tight tolerances, ZRP connecting rods meet the requirements of professional engine builders and high-output performance engines.
They are the ideal solution for Ford 1.0L EcoBoost engines.
-
Engine codeM1JE
M1JH
SFJA
SFJB
SFJC
SFJD -
Weight in kg0,38
-
Vehicle makeFORD
-
Conrod ShapeH-Beam Conrod
-
Center-to-center length in mm137,00
-
Piston pin diameter in mm20,00
-
Conrod head diameter in mm43,00
-
Conrod head width in mm19,55
-
Threads on conrod bolts5/16"
-
Type of fasteners includedARP2000
-
Type of conrodStandard Forged Conrod
