ZRP I-Beam Forged Connecting Rods for VW Audi 1.4 TFSI (2012-On) - R-VW-005-I

ZRP
Reference: ZRP-R-VW-005-I
Supplier Ref.: R-VW-005-I
CHF 564.30 Tax included
CHF 627.00 -10% Discount
Promotion ends in: 03 D 11 H 30 M 24 S
Available to order Within 15 days on average.
Unavailable in store (Promasens)
Earn 564 loyalty points (that is CHF 15.00 in vouchers)

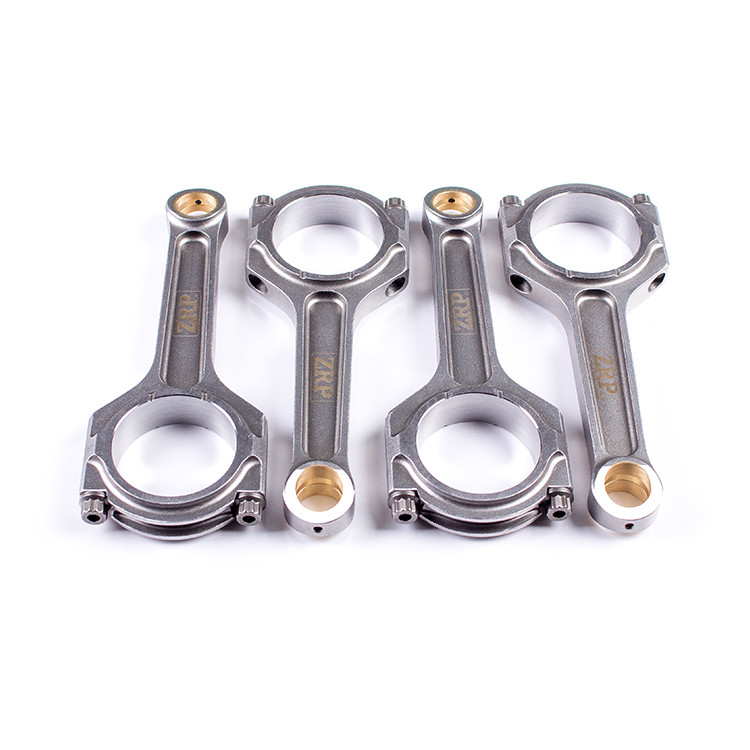

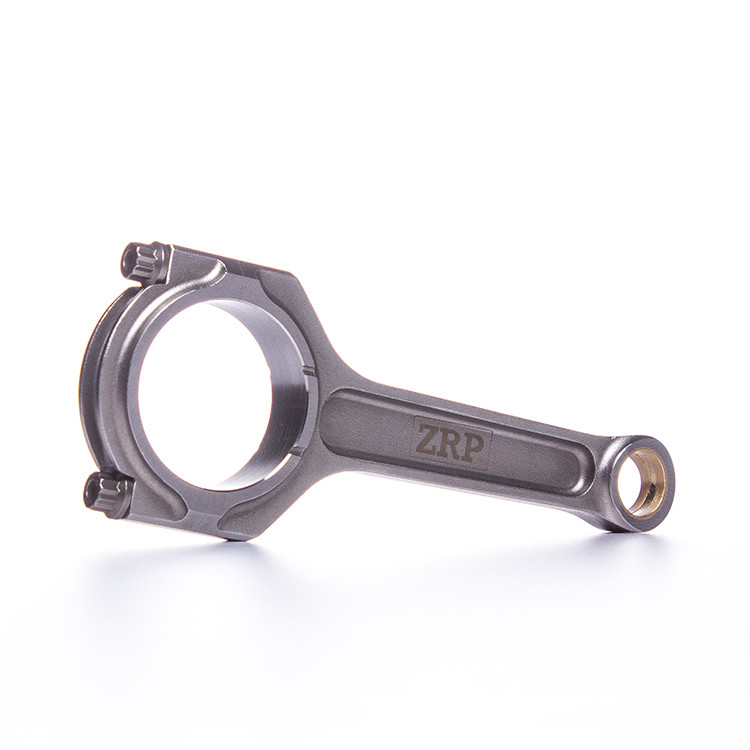

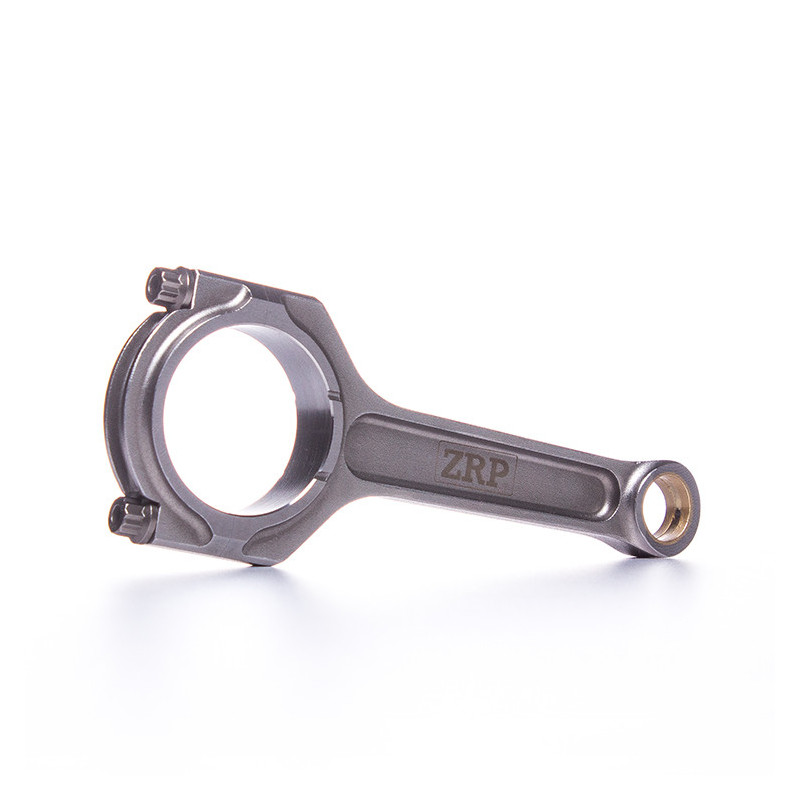

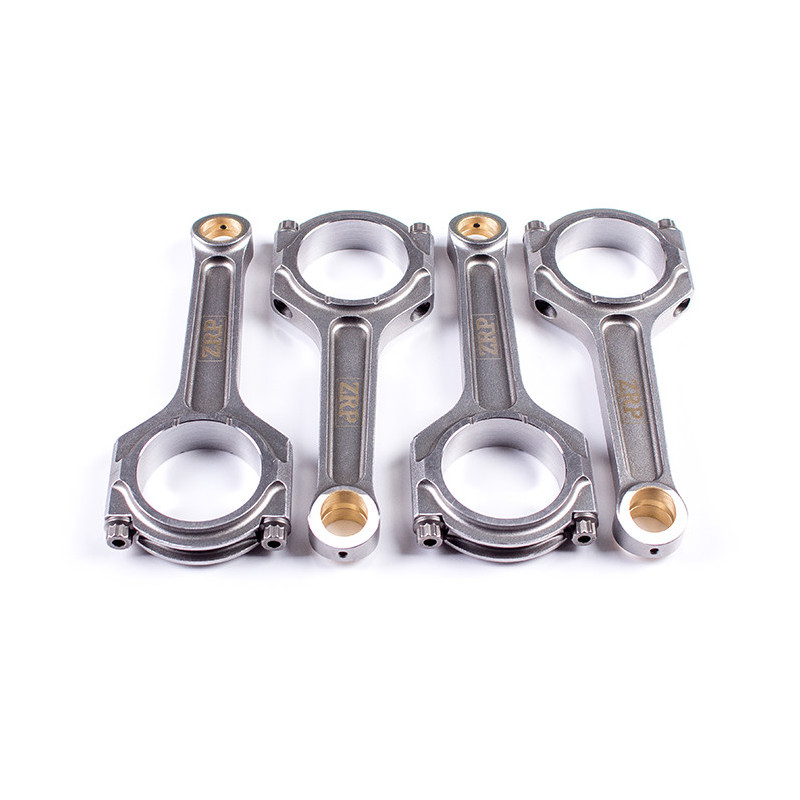

The ZRP I-Beam connecting rods for VW/Audi 1.4L TFSI engines (2012-on) are designed for high-performance engine builds and demanding rebuilds.

Their premium forged construction provides outstanding strength and reliability under the extreme loads generated by high horsepower and high RPM applications. The I-Beam profile delivers an excellent balance of strength and reduced weight.

Manufactured to extremely tight tolerances, ZRP connecting rods meet the requirements of professional engine builders and high-output performance engines.

They are the ideal solution for VW/Audi 1.4 TFSI engines.

  • Engine code
    CHPA
    CMBA
    CMBH
    CPTA
    CPWA
    CTHG
    CVNA
    CZC
    CZCA
    CZCB
    CZCC
    CZDA
    CZEA
  • Weight in kg
    0,40
  • Vehicle make
    AUDI / VOLKSWAGEN
  • Conrod Shape
    H-Beam Conrod
  • Center-to-center length in mm
    140,02
  • Piston pin diameter in mm
    19,00
  • Conrod head diameter in mm
    50,60
  • Conrod head width in mm
    20,00
  • Threads on conrod bolts
    5/16"
  • Type of fasteners included
    ARP2000
  • Type of conrod
    Standard Forged Conrod
