Aluminium injection rail 034 Motorsport For Audi & Volkswagen 1.8

Aluminium injection rail 034 Motorsport For Audi & Volkswagen 1.8

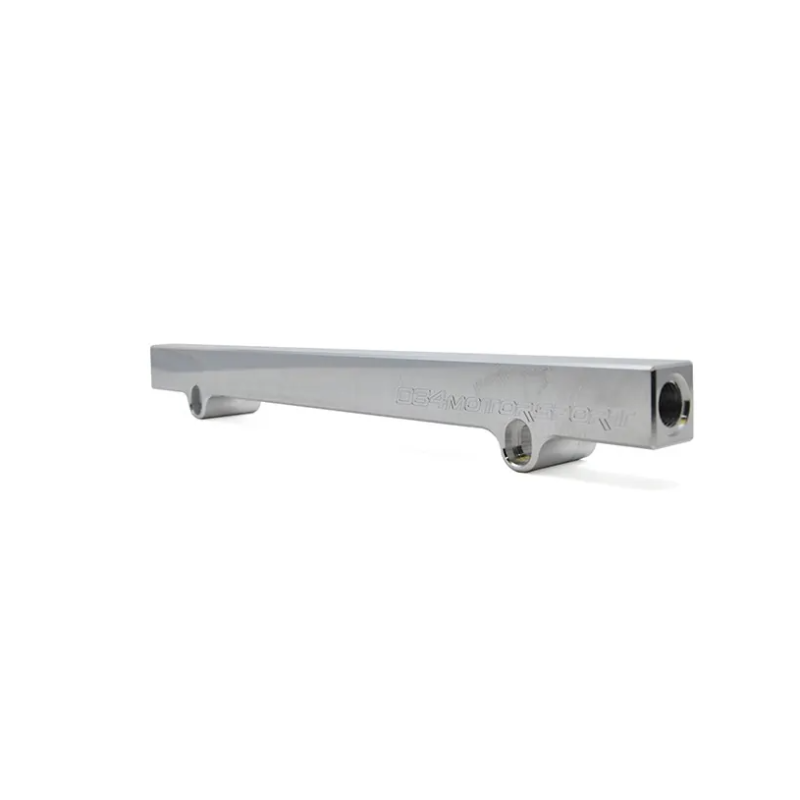

High capacity 034Motorsport aluminiuminjection rail for Audi/Volkswagen 1.8T engines. These rails are CNC machined in-house from high quality aluminium and include -6 AN couplings. The brackets supplied are compatible with standard or original height injection valves for all 1.8 variants.

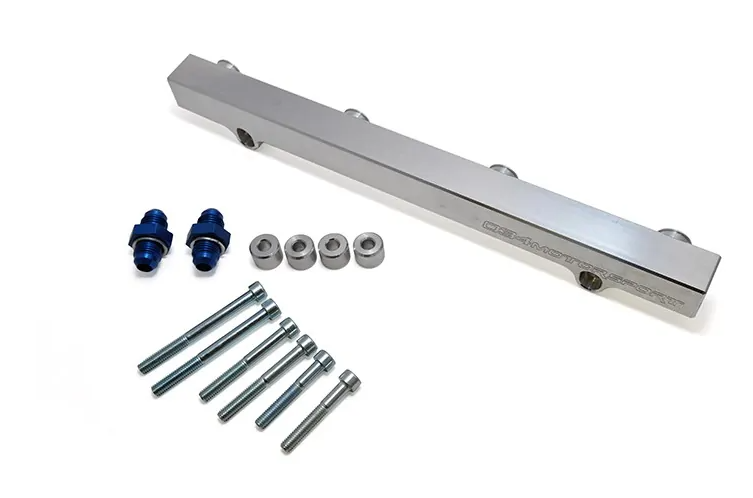

The kit includes the necessary mounting hardware

Features

• CN machined 6061 aluminium construction

• Includes -6 A couplings

• Holds factory injector clips for secure injection valve seal

• Includes mounting hardware

• Adapts to different lengths of injection valves on small-port and large-port header us manifolds


Installation of spacers

• Small-portheader us manifold and 48.8 mm injection valves - 1 spacer

• Small port header us manifold and 60.3 mm injection valves - 2 spacers

• Large-port header us manifold and 48.8 mm injection valves - No spacers

• Large port header us manifold and 60.3 mm injection valves - 1 spacer
