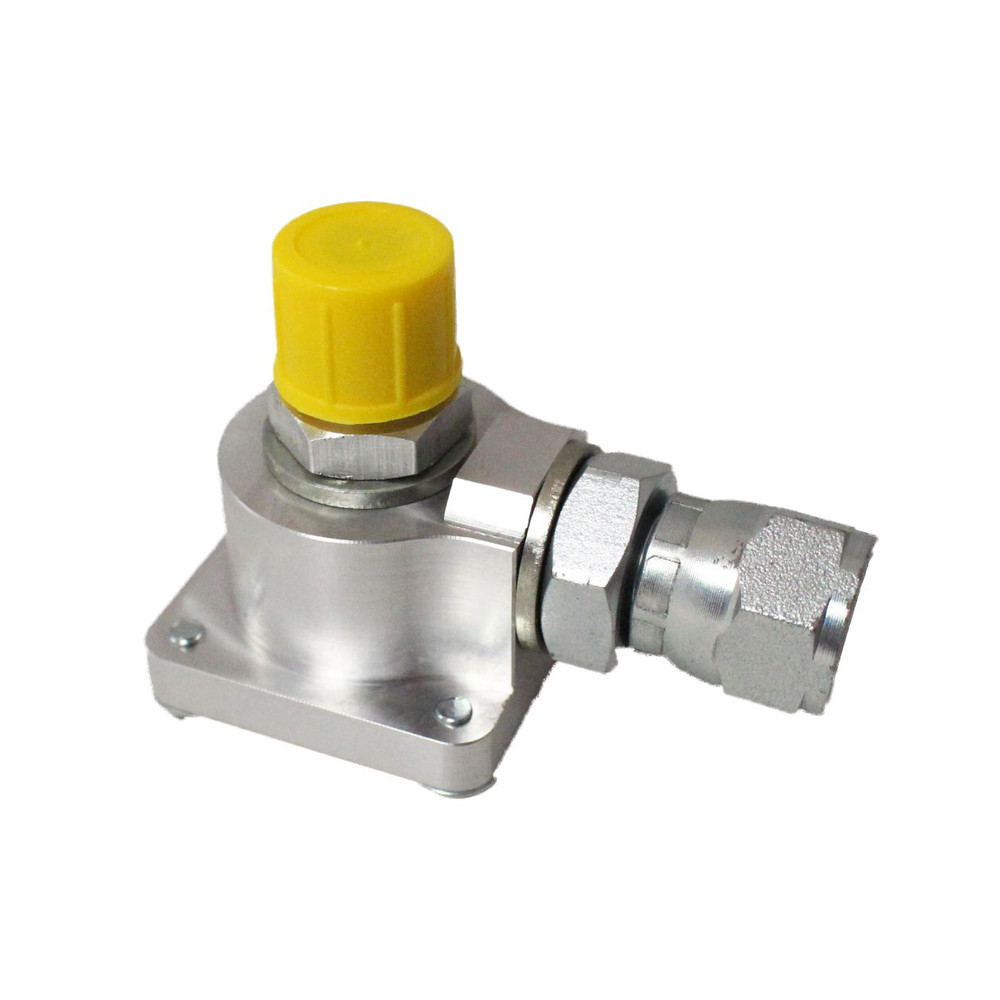

Jenvey 9.4 mm JIC-6 Fuel Pressure Controller Bracket

Reference: J-RH01

Supplier Ref.: RH01

Learn more

CHF 79.00 Tax included

In stock

Unavailable in store (Promasens)

Shipped between 2026-09-21 and 2026-09-23 from our warehouse

CHF 79.00 (tax incl.)

3X LOYALTY POINTS Earn 237 loyalty points (that is CHF 5.00 in vouchers)

The Jenvey RH01 fuel pressure regulator bracket allows a controller to be installed directly at the end of a Jenvey steel fuel injection rail. Machined from aluminum, it serves as the interface between the fuel rail, the controller, and the fuel system via its JIC-6 connections.

The 9.4 mm dimension corresponds to the bolt hole diameter required to accommodate the controller’s o-ring. It does not, therefore, correspond to the diameter of a fuel pump. The housing is compatible with Weber-type controllers or Bosch Mini A /38/5 controllers.

This bracket is specifically compatible with the WFR024, WFR029, WFR043, and WFR060 controllers.

Technical Specifications of the Jenvey RH01 Controller Bracket

Manufacturer Part Number: RH01
Type: Bracket / housing for fuel pressure controller
Material: machined aluminum
Mounting: at the end of the injection rail
Compatible rail: Jenvey steel injection rail
Controller mounting diameter: 9.4 mm
Connections: JIC-6
Controller type: Weber or Bosch Mini A /38/5
Compatible controllers: WFR024, WFR029, WFR043, and WFR060

Note: The RH01 is designed exclusively for Jenvey steel injection rails. It is not compatible with Jenvey machined aluminum injection rails. For the latter, Jenvey recommends the RH01M offset bracket.

Key features of the Jenvey RH01 controller bracket

Direct mounting at the end of a Jenvey steel injection rail
Machined aluminum construction
JIC-6 fuel connections
Compatible with Weber or Bosch controllers of the specified size
Compatible with WFR024, WFR029, WFR043, and WFR060 controllers

Products intended for vehicle modification for competition purposes may render their use prohibited on public roads, insofar as they significantly alter the vehicle's characteristics as specified in the type-approval certificate issued by the relevant authorities (noise level, pollutant emissions, maximum speed, tire dimensions, etc.).
