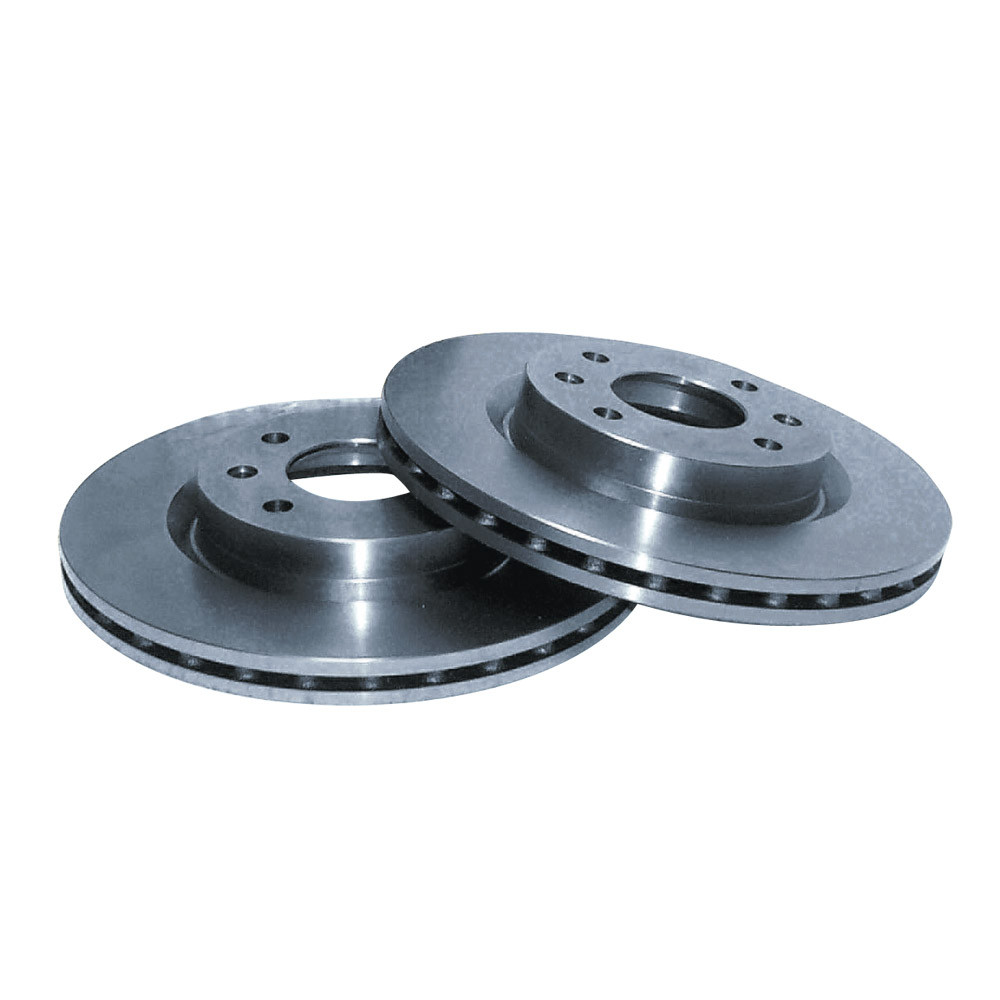

GT2i Group N brake discs BMW Serie 5, 6 Front 348x30mm
Délai de livraison (à partir du dépôt central)
3 to 9 days + over 10 days + over 20 days + over 30 days
Stock in store (Promasens)
Unavailable
GT2i Group N brake discs come from Italian forges whose cast iron is used as the basis for motor racing. They are machined and treated to improve their heat resistance and to meet market demands for unbeatable build quality and price. They fit in place of the original ones without modification!
These discs will ensure long-lasting braking that doesn't falter despite heavy use, on track or road.
Sold in pairs.
Make compatibility : BMW
Axle positioning : Front
Dimensions : 348x30 V - h.66 - c.75
Compatibility manufacturer reference : 34116775277
MakeModelEngineYears
| BMW | 5 (F10, F18) | 525 d 150kw | 02/10- |
| 525 d 155kw | 09/11- | ||
| 525 d 160kw | 09/11- | ||
| 525 d xDrive 155kw | 09/11- | ||
| 525 d xDrive 160kw | 09/11- | ||
| 528 i 180kw | 09/11- | ||
| 528 i 190kw | 02/10- | ||
| 528 i xDrive 180kw | 09/11- | ||
| 530 d 180kw | 12/09- | ||
| 530 d 190kw | 09/11- | ||
| 530 d xDrive 190kw | 09/11- | ||
| 530 d xDrive 210kw | 10/15- | ||
| 530 i 200kw | 09/11- | ||
| 535 i 240kw | 12/09- | ||
| 535 i xDrive 240kw | 07/13- | ||
| ActiveHybrid 250kw | 09/11- | ||
| 5 Gran Turismo (F07) | 530 d 180kw | 10/09- | |
| 530 d xDrive 180kw | 09/10- | ||
| 5 Touring (F11) | 518 d 100kw | 01/13- | |
| 518 d 105kw | 01/13- | ||
| 520 d 120kw | 04/10- | ||
| 520 d 135kw | 09/10- | ||
| 520 d xDrive 120kw | 02/13- | ||
| 520 d xDrive 135kw | 02/13- | ||
| 520 d xDrive 140kw | 05/14- | ||
| 525 d 150kw | 09/10- | ||
| 525 d 155kw | 09/11- | ||
| 525 d 160kw | 09/11- | ||
| 525 d xDrive 155kw | 09/11- | ||
| 525 d xDrive 160kw | 09/11- | ||
| 528 i 180kw | 09/11- | ||
| 528 i 190kw | 09/10- | ||
| 528 i xDrive 180kw | 09/11- | ||
| 530 d 180kw | 09/10- | ||
| 530 d 190kw | 09/11- | ||
| 530 d xDrive 190kw | 09/11- | ||
| 530 d xDrive 210kw | 10/15- | ||
| 530 i 200kw | 09/11- | ||
| 535 i 240kw | 10/15- | ||
| 535 i xDrive 225kw | 09/11- | ||
| 535 i xDrive 240kw | 10/15- | ||
| 6 Convertible (F12) | 640 i 235kw | 03/11- | |
| 640 i xDrive 235kw | 01/13- | ||
| 6 Coupe (F13) | 640 i 235kw | 11/10- | |
| 640 i xDrive 235kw | 01/13- | ||
| 6 Gran Coupe (F06) | 640 i 235kw | 09/11- | |
| 640 i xDrive 235kw | 01/13- | ||
| 7 (F01, F02, F03, F04) | 730 d 180kw | 10/08-12/15 | |
| 730 i, Li 190kw | 06/08-12/15 |
Data sheet
- Thickness in mm :
- 30
- Diameter in mm :
- 348
- Offset in mm :
- 66
- Inner diameter in mm :
- 75
- Position :
- Front
- Soldi or vented :
- Vented
- Origine reference :
- 34116775277
