STAUBLI fuel male connector Rallye Raid 1 1/16x12JIC FIA Dash12 JKV gasket

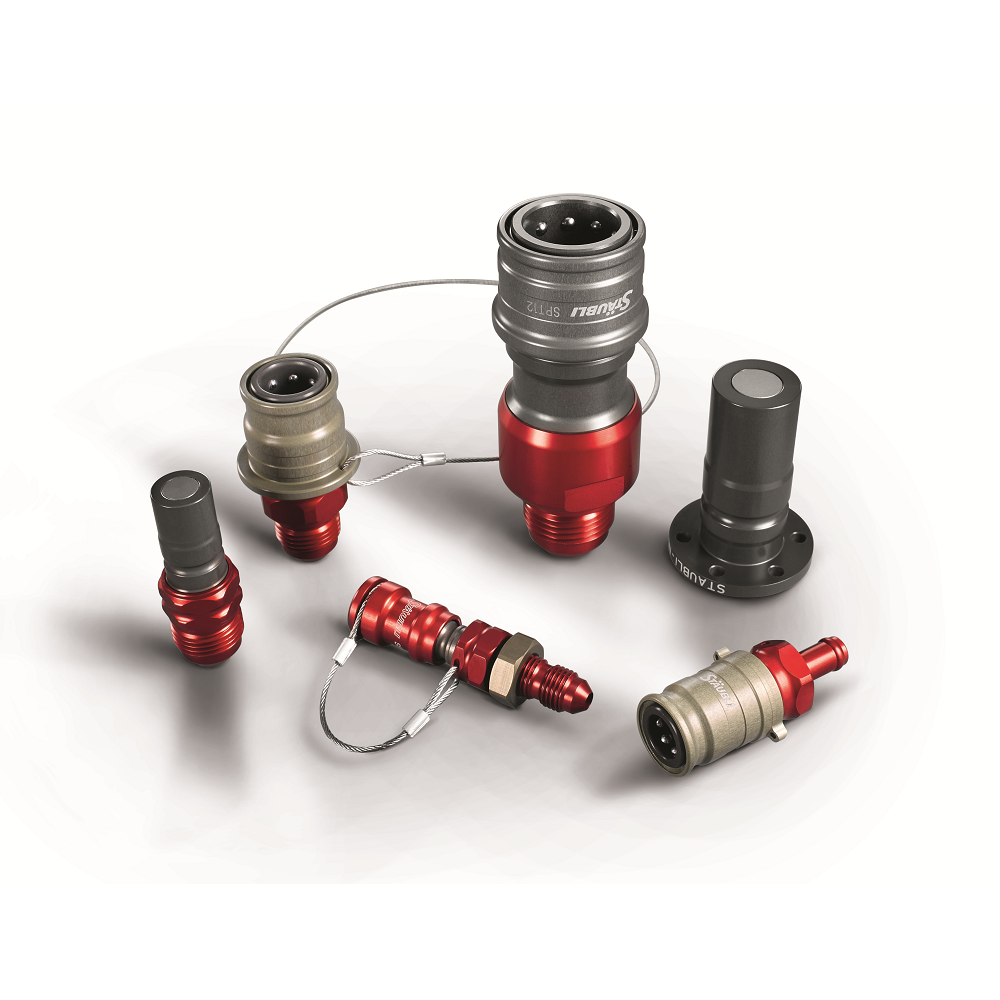

The STAUBLI fuel fast fitttings FIA approved combine high-speed performance with reliable emission safety, the SPT12 fast fittings for on-board fuel systems meet the rigorous requirements of motorsports. Very compact and light, they can be easily adapted to any type of vehicle and ensure the safe disconnection of the fuel line in case of an accident.

• Thread : 1 1/16x12 JIC Dash 12

• Nominal diameter DN (mm) : 12

• Maximum allowable pressure PS (bar) : 20

• Compatible fluids : fuels, ethanol, oil

• High strength aluminum construction

• Available with 2 types of gaskets  : JV (Fluorocarbon) and JKV (Perfluoroestomer)

• Approved by the FIA

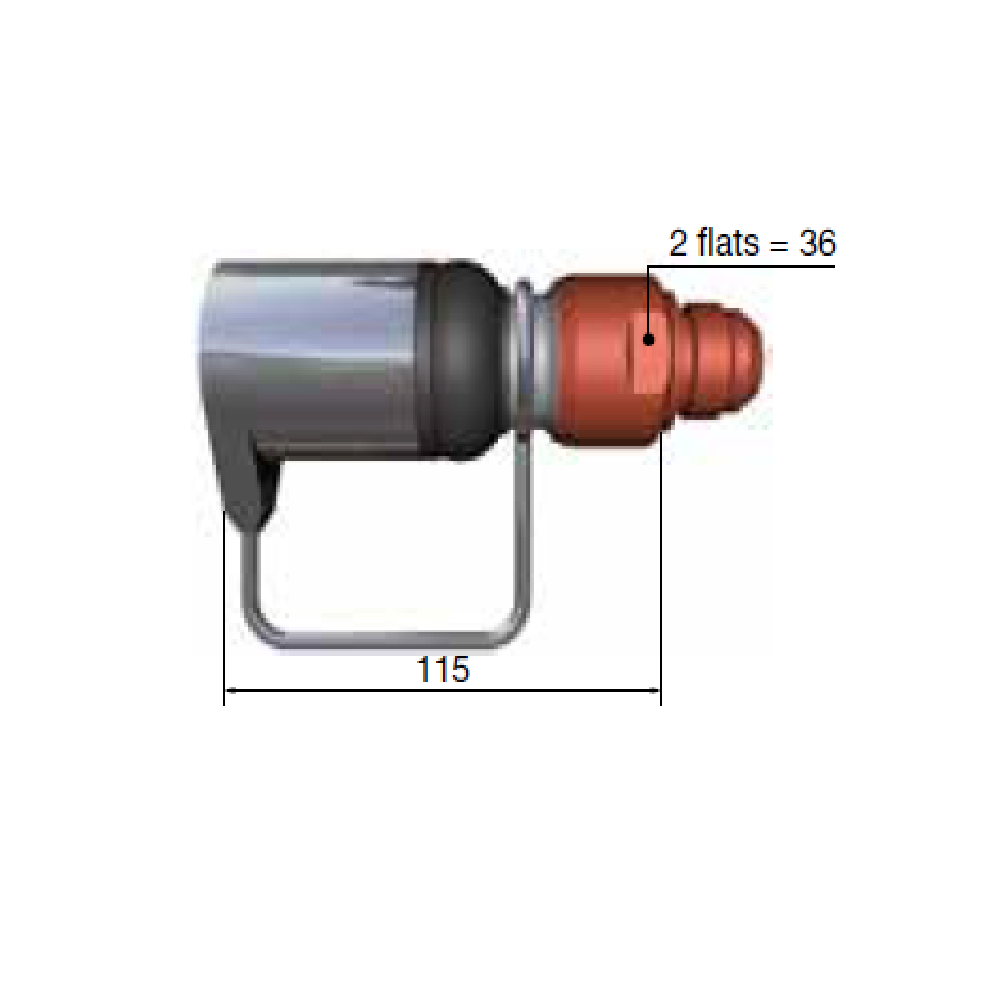

The Rallye Raid (SPT 12) version is designed to refuel in particularly dusty conditions :

• Waterproof aluminum cap to protect the plug

• Rubber cap and sleeve to protect the plug from dust and sand

• Approved by the FIA

Information about the SSV Dakar regulations :

• Connections should be located outside the vehicle, side by side, on the left side behind the passenger compartment.

• Fittings must be easily accessible and connectable

• Fittings must be protected from dust by protective covers

• Fittings must not protrude from the main structure of the vehicle in order to be protected in case of an accident

• There must be protection under the fittings so that no fluid can flow into the engine environment

• The connection pipes to the tank must have a minimum internal diameter of 22mm
