VDO Right-Hand One-Way Valve for Mirror Washer System
Reference:
V-246063012001G
Supplier Ref.:
246-063-012-001G

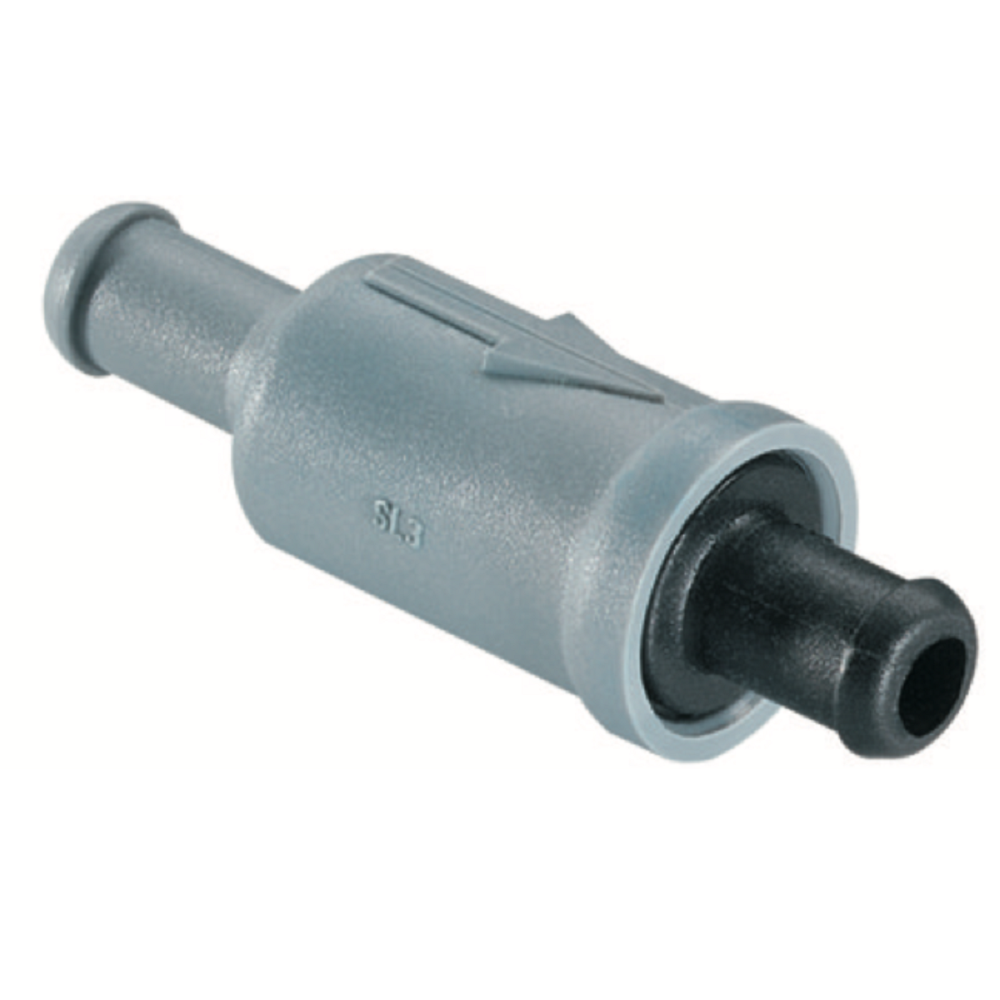

The VDO straight one-way valve for mirror washers is installed on the windshield washer circuit piping. It allows fluid to flow in one direction only and prevents it from flowing back in the opposite direction.
Its I-shaped shape allows it to be installed in-line between two sections of hose on the circuit connecting the pump to the nozzles.
Technical Specifications
Brand: VDO
Manufacturer Part Number: 246-063-012-001G
Type: One-way valve
Length × width × height: 37 × 12 × 12 mm
Connection diameter: 5 mm
Configuration: Straight, I-shaped shape
Application: Mirror washer lines
Compatibility and Mounting
Verify that the fittings match the hose being used and ensure that the fluid flows in the correct direction, from the pump to the nozzles.
