This LED RACING TEAM 4 DRIVE light bar delivers a light output of 5200 LUMENS.
Designed for discerning drivers seeking a long-range driving beam, this 4-LED light bar offers exceptional light output even in the most extreme conditions. Ideal for rallying, off-roading, and any application requiring a powerful, uniform beam.
Equipped with high-intensity LEDs, the LED Racing Team 4 offers over 30% more brightness than traditional LED headlights, while reducing energy consumption.
The scratch-resistant, hardened polycarbonate lens is impact-resistant and maintains a light transmission rate of 92% for lasting clarity. The extruded aluminum housing dissipates heat 50% more efficiently than conventional systems. The balanced M5 venting system prevents internal condensation caused by temperature fluctuations, thereby protecting the electronic components for maximum reliability. Its adjustable mounting bracket (304 stainless steel) allows for multiple installation angles. Designed to withstand extreme vibrations and stress, it ensures perfect stability in all conditions.
The Drive version features an expanded light output for maximum visibility in consecutive turns.
Also available in a Spot version (suitable for straightaways): LED-SW-001
FFSA Note:
In National and Regional events, LED MODULES are permitted, provided they do not exceed a total of 6 additional headlights or 24 additional LED MODULES. 1 headlight is equivalent to 4 LED MODULES (bulbs).
A combination of headlights and LED MODULES is permitted, provided the equivalence and maximum limits specified above are respected.
Technical specifications:
Dimensions: 295.5x66x78.4mm
Protection rating: IP67
Cable length: 400mm
Operating temperature: -40°C to +60°C
Lifespan: 30,000 hours
Supply voltage : 10V - 30V DC
Weight : 1.1 kg
DT connector: 2-pin
Includes 2 side brackets + hardware

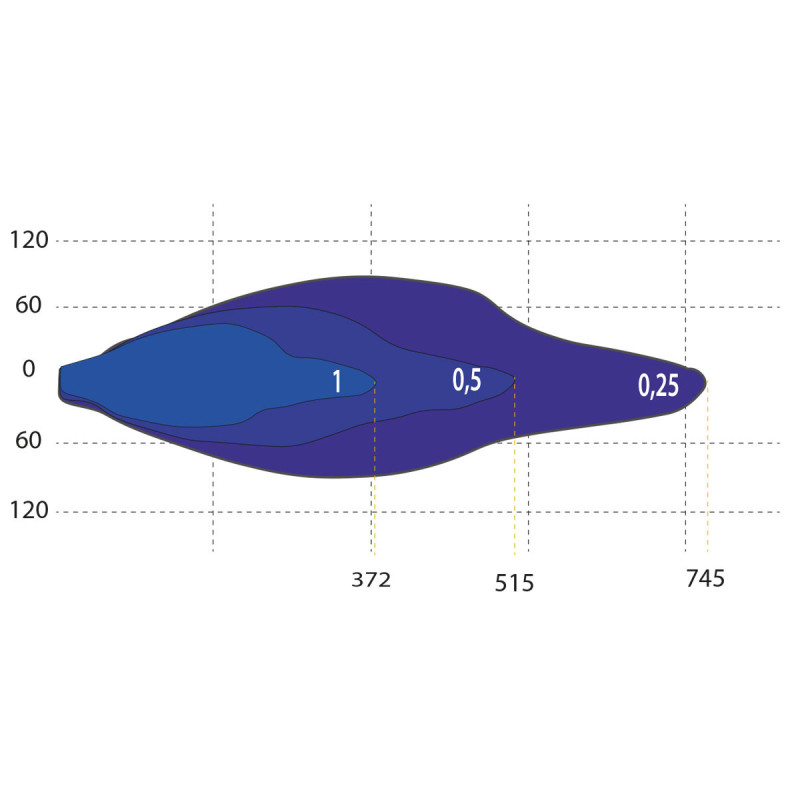

0.25 lx @ 745 m
0.5 lx @ 515 m
1 lx @ 372 m
3 lx @ 214 m
Horizontal beam angle 62°
