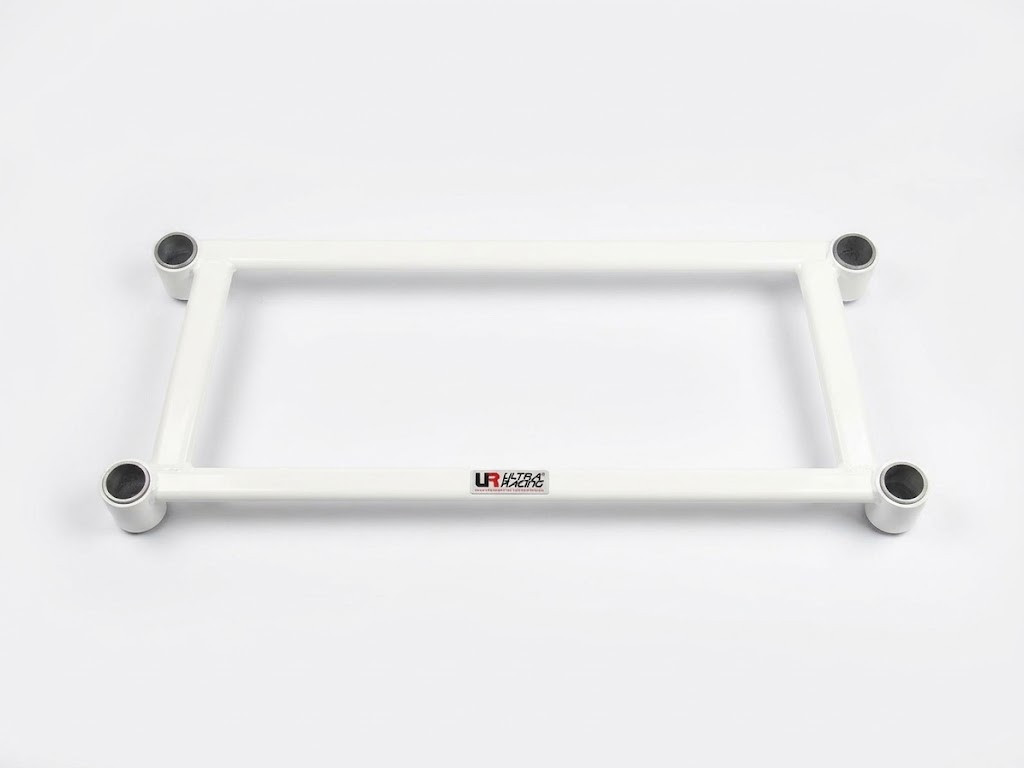

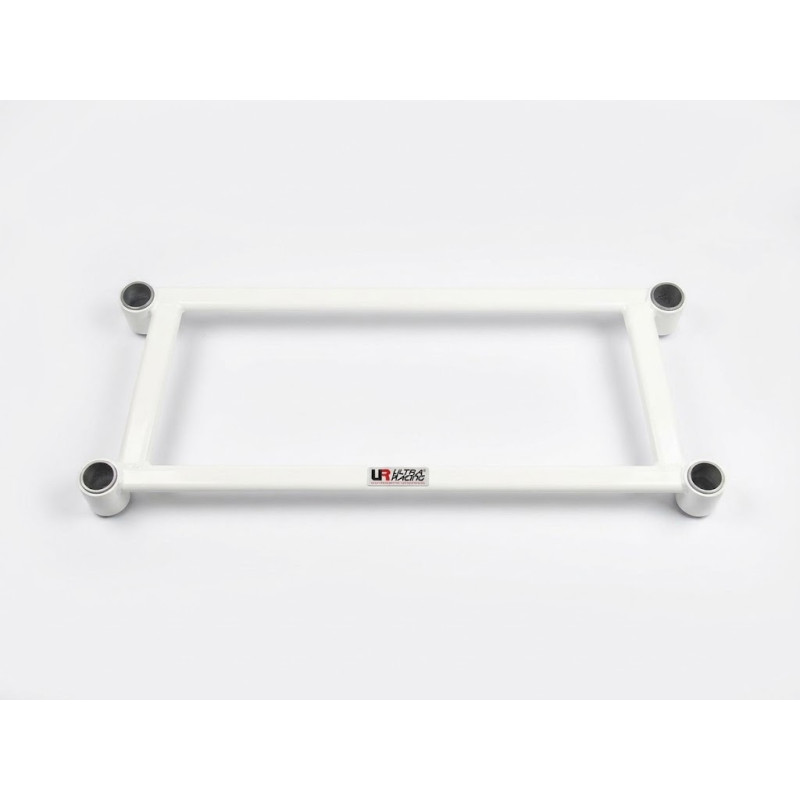

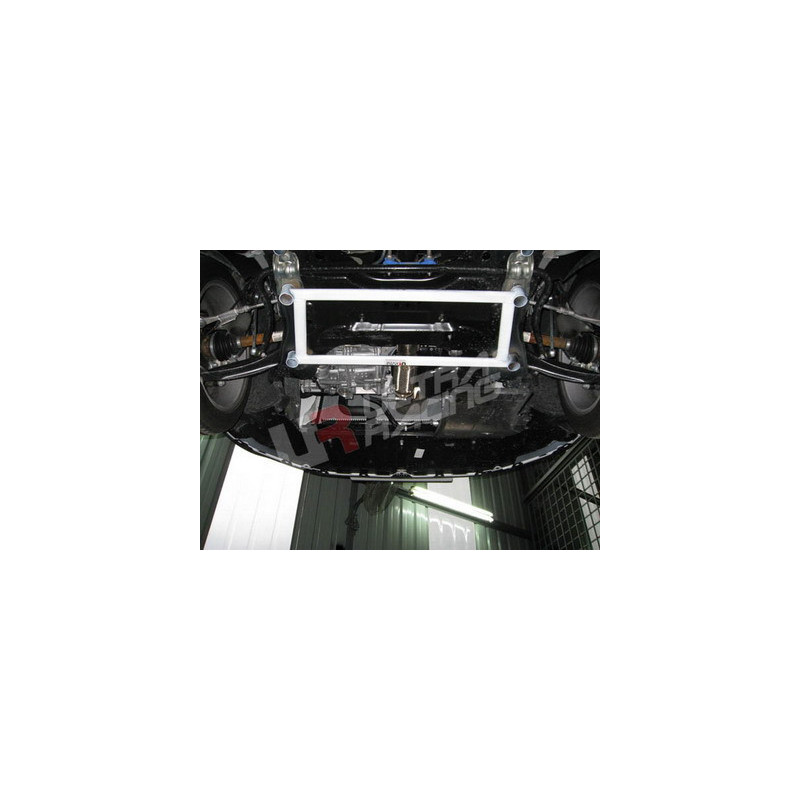

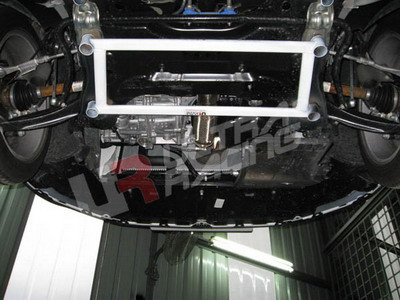

The Ultra Racing H-shaped front lower truss is designed for compatible Peugeot 308 I, Peugeot RCZ, and Citroën DS5 models. Installed in the lower part of the front chassis, it connects four mounting points to reinforce this area and limit deformation under driving stresses.
Its steel construction helps maintain the overall rigidity of the chassis during braking and when changing direction. This truss complements chassis upgrades by reinforcing the lower front structure.
Technical Specifications
- Brand: Ultra Racing
- Manufacturer Part Number: UR-LA4-847
- Type: H-shaped front truss
- Position: front, lower
- Number of mounting points: 4
- Material: steel
- Color: white
- Listed sizes: 800 × 310 × 50 mm
- Listed weight: 2.4 kg
- Mounting: bolted
Compatible vehicles
- Citroën DS5 1.6 Turbo: two-wheel drive (2011–2018).
- Peugeot 308 I T7 1.6: 5-door sedan, two-wheel drive (2007–2013).
- Peugeot 308 I T7 facelift 1.6: 5-door sedan, two-wheel drive (2011–2013).
- Peugeot 308 I SW T7 1.6 diesel: station wagon, two-wheel drive (2007–2013).
- Peugeot RCZ T75 1.6 turbo: two-wheel drive (2009–2015).
Mounting
The truss is bolted in place. Before installation, verify that the four mounting points align properly and check for clearance from components located beneath the vehicle. Follow the installation instructions and the torque specifications applicable to the fasteners used.
Key Features
- Trusses the lower section of the front chassis.
- Attached at four mounting points.
- Steel construction to minimize flex in the truss area.
- Bolt-on mounting on compatible vehicles.
| BRAND | MODEL | TYPE | YEARS | NOTE |
|---|
| CITROEN | DS 5 | 1.6T 2WD | 2011-2018 | |
| PEUGEOT | 308-I | 1ST GEN (T7) 1.6 2WD 5-DOOR HATCHBACK | 2007-2013 | |
| 1ST GEN (T7) 1.6D 2WD ESTATE | 2007-2013 | |
| RCZ | (T75) 1.6T 2WD | 2009-2015 | |
Products intended for vehicle modification for competition purposes may render their use prohibited on public roads, insofar as they significantly alter the vehicle's characteristics as specified in the type-approval certificate issued by the relevant authorities (noise level, pollutant emissions, maximum speed, tire dimensions, etc.).
