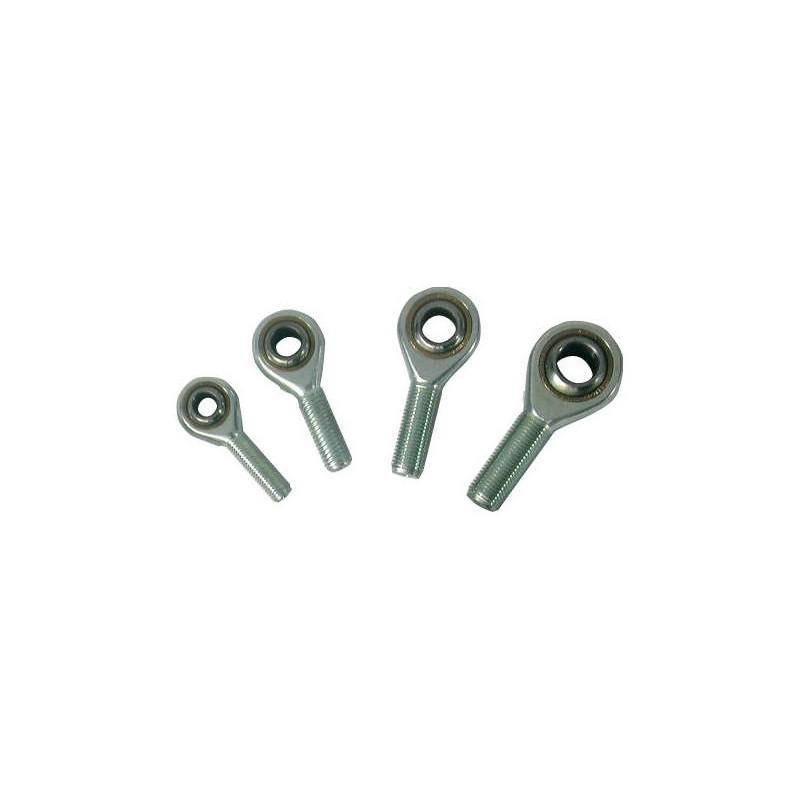

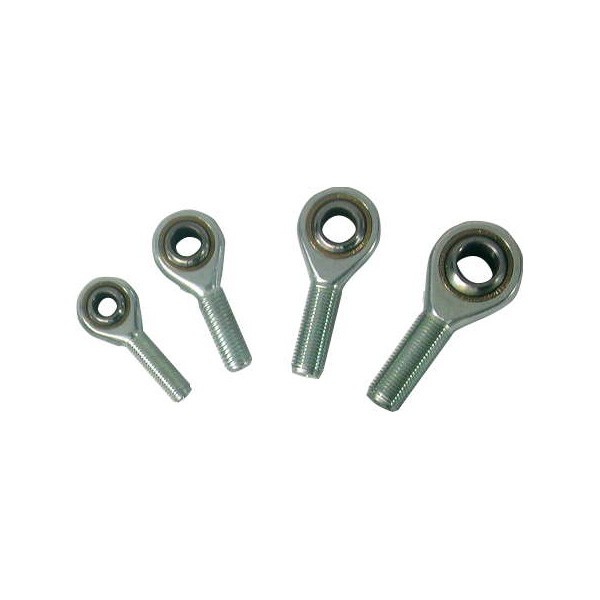

Ball seal Competition Rodobal Male Eye .8750 Thread 1"

Ball seal Competition Rodobal Male Eye .8750 Thread 1"

The Rodobal RXAM-14T-1 competition ball joint is a high-end part designed to meet the most extreme demands of motor sports. Featuring a 0.875’ eye (22.225 mm) and a 1"-14 UNS-3A male thread on the right, it ensures a solid fit and smooth articulation in suspension or steering systems.

This precision-machined ball joint guarantees perfect stability even under static radial loads of up to 84,897 lbs (377,622 N). Thanks to the absence of preload, the ball joint moves freely from the start, which is ideal for easy suspension adjustment. It can also tilt up to 5.7°, allowing it to follow the movements of the bodywork without interfering with operation.

Features:

Bore: 0.875" (22.225 mm)

Thread: 1″-14 UNS-3A, right

Thread length: 1.875″ (47.63 mm)

Ball joint width: 0.875″ (22.225 mm)

Housing/bushing width: 0.765″ (19.43 mm)

Outer diameter: 2.325″ (59.05 mm)

Allowable misalignment (α): 5.7°

Unloaded torque / adjustment: without preload

Ultimate static radial load capacity: 84,897 lbs (377,622 N)

Approximate weight: 1.28 lbs (580 g)
