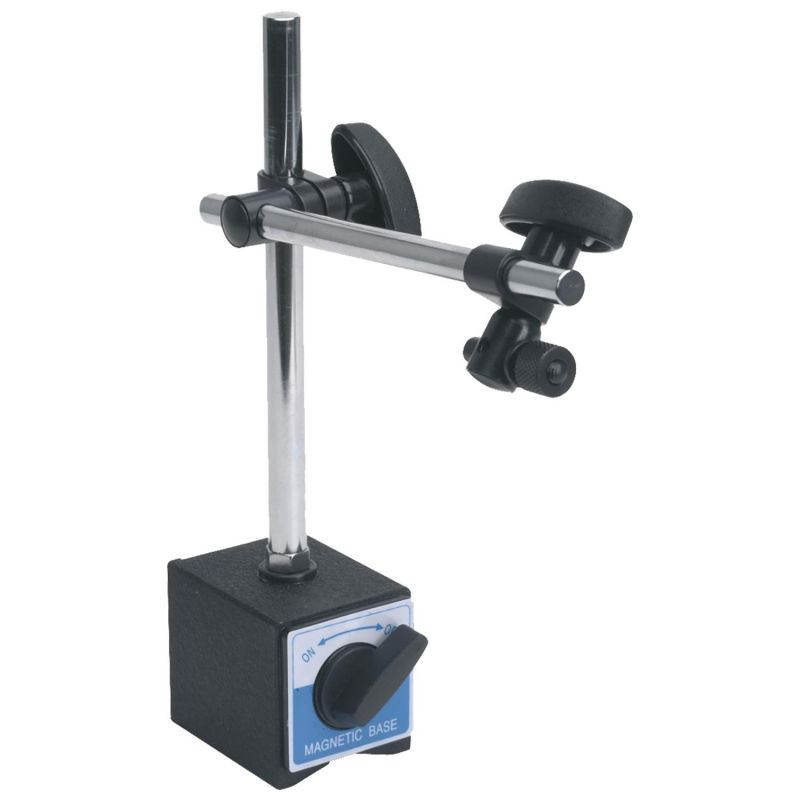

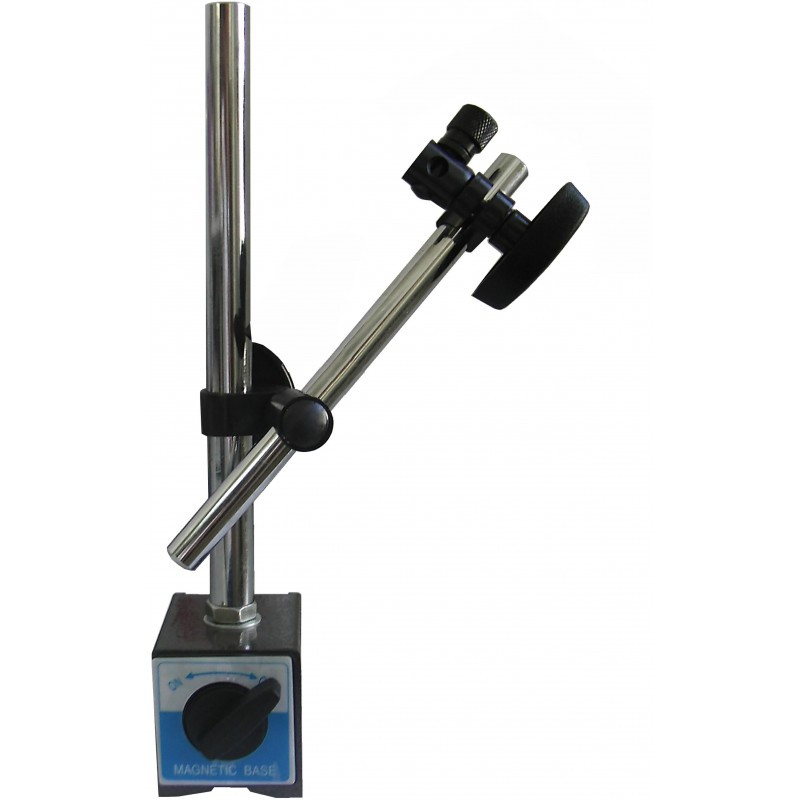

Universal support with magnetic base for adhesion to any ferrous, plate, cylindrical and angular surface.
Attraction force switchable ON/OFF 60 kg / 600 N.
Arms adjustable to any position and precise adjustment.
Height: 235 mm / Fine adjustment
Vertical column: 175 mm M8x1.25 mm / Ø12 mm
Swivel arm: 160 mm / Ø 10 mm
Top mounting: Ø12 mm / Ø10 mm

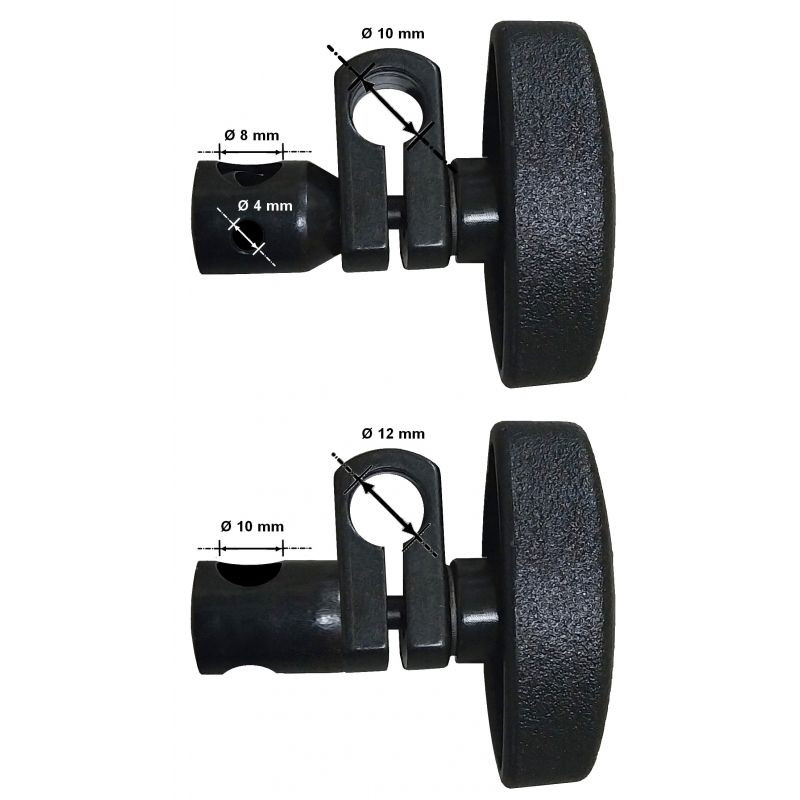

Comparator mounting: Ø10 mm / Double Ø8-Ø4 mm
Attraction force: 60 kg / 600 N

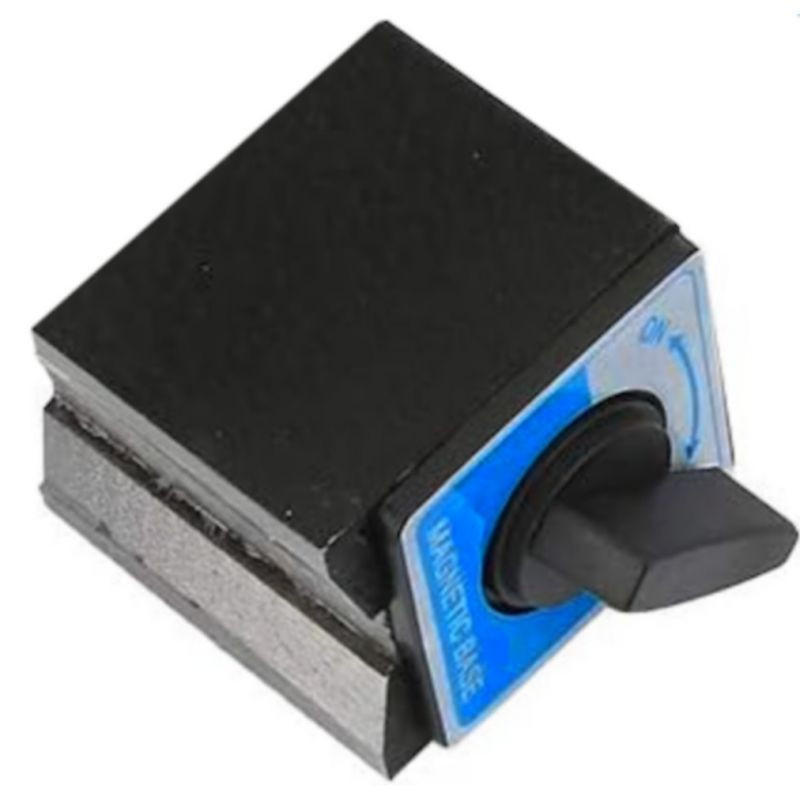

Magnet can be deactivated
V-shaped groove
Weight: 1.850 kg
