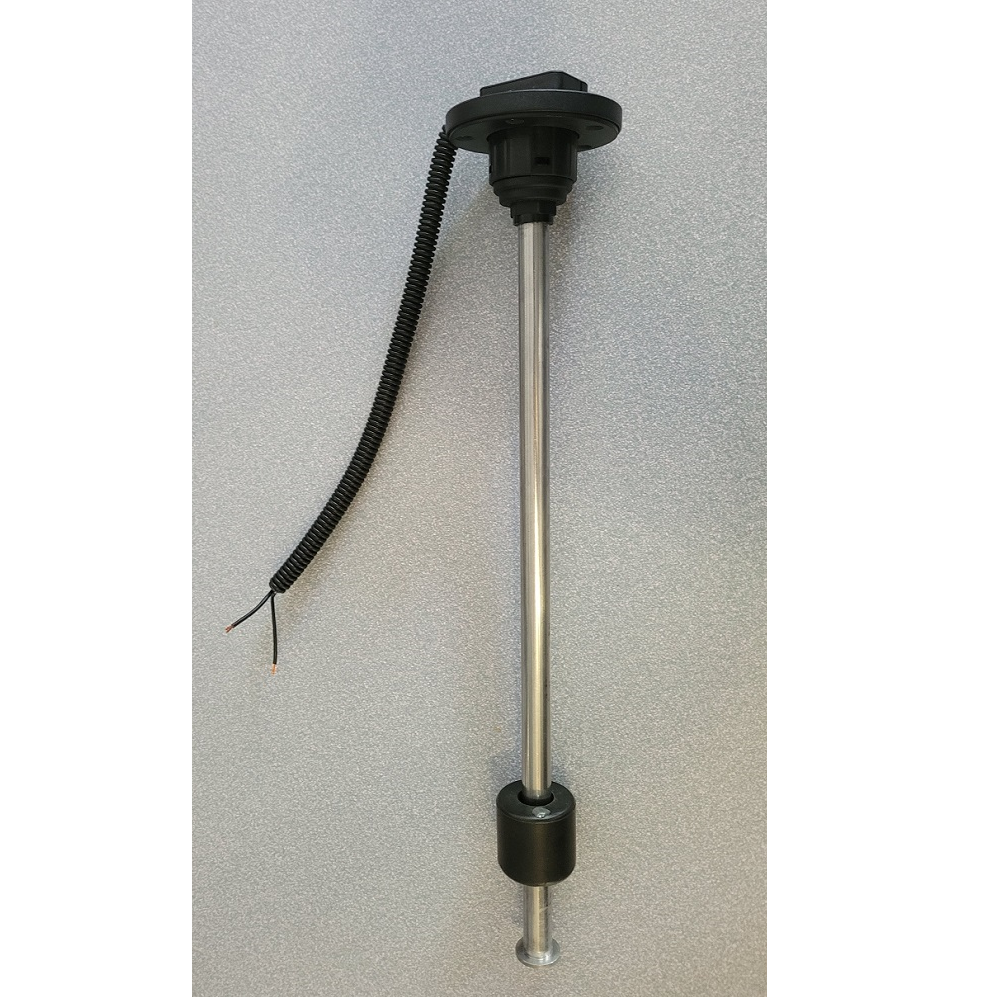

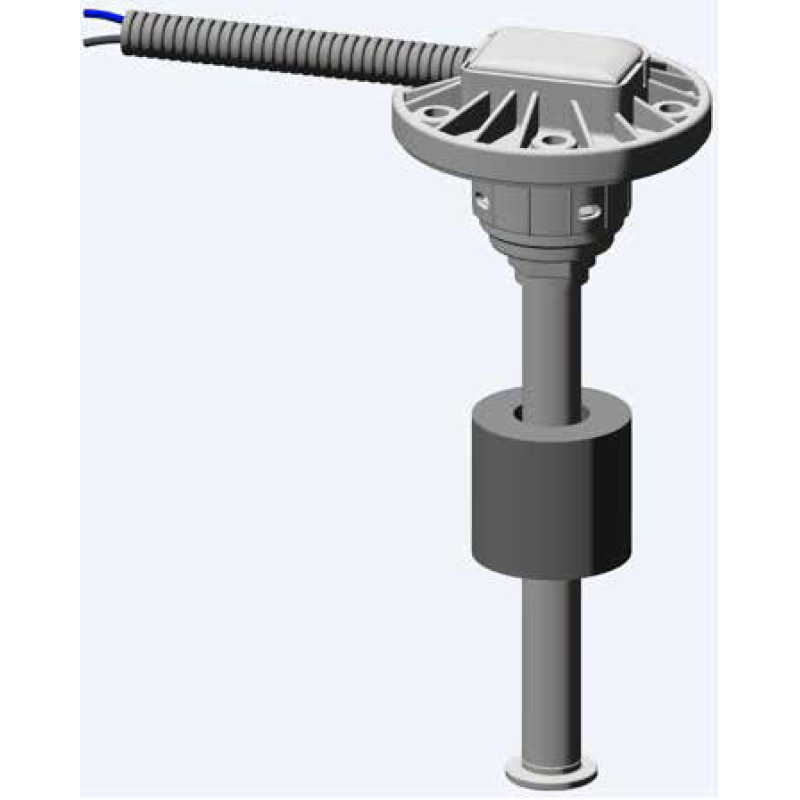

The VDO 250 mm tubular fuel gauge measures the liquid level in the tank and transmits a resistive signal to a compatible gauge. It is mounted using a 5-hole SAE flange on a 54 mm mounting circle.
This reed switch probe outputs 91.0 ? ± 1.0 ? when empty and 1.0 ? ± 1.0 ? when full. Its length is fixed: it must be selected based on the available depth in the tank and the space required beneath the tube.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: 2910002233900
- Type: Tubular Reed Contact Level Sensor
- Tube length: 250 mm ± 2.0 mm
- Tube diameter: 40 mm

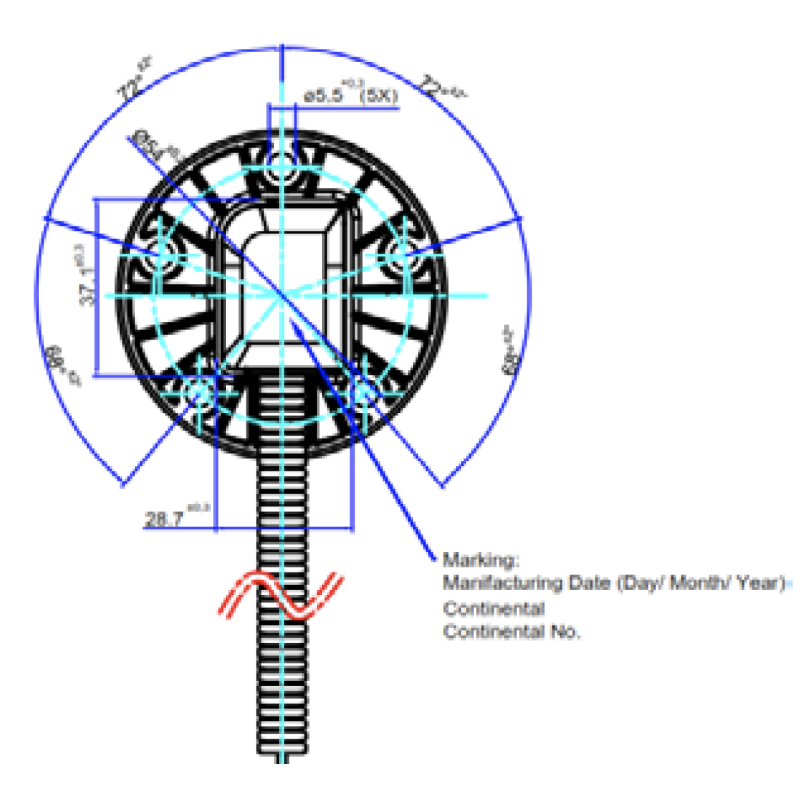

- Mounting: 5-hole SAE flange, 54 mm mounting circle
- Open-circuit resistance: 91.0 ? ± 1.0 ?
- Full-scale resistance: 1.0 ? ± 1.0 ?
- Operating voltage: 6 to 48 V
- Type of ground: Signal isolated from ground
- Alarm contact: None
- Adjustable length: No
- Documented fluids: Fuel and water
- Packaging: 1 sensor
- Minimum mounting depth: 250 mm ± 2.0 mm + 4.0 mm

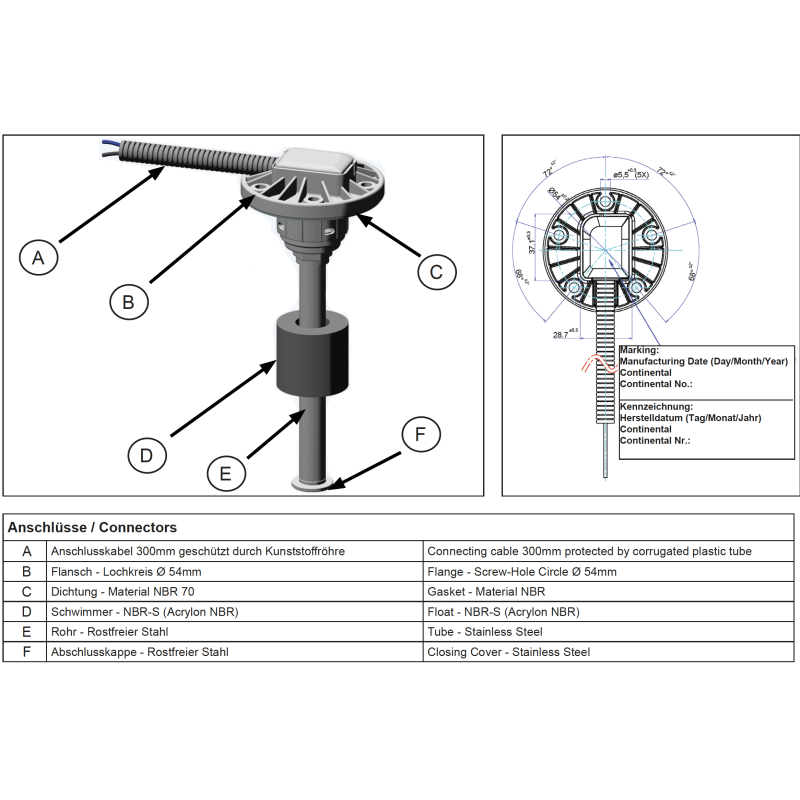

Compatibility and Mounting
Check the tank depth, the flange, and the direction of resistance change for the indicator. The 54-mm mounting circle is separate from the 40-mm tube diameter. Connection hardware must be provided separately.
