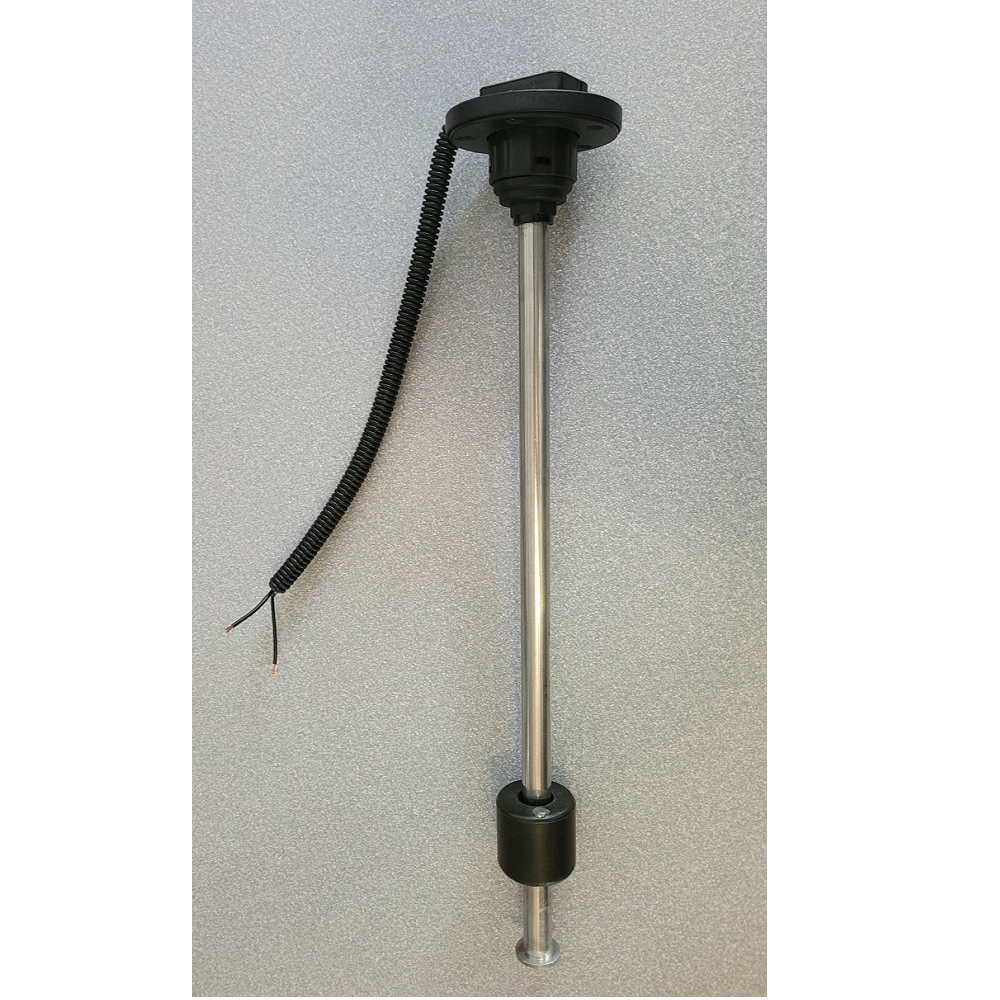

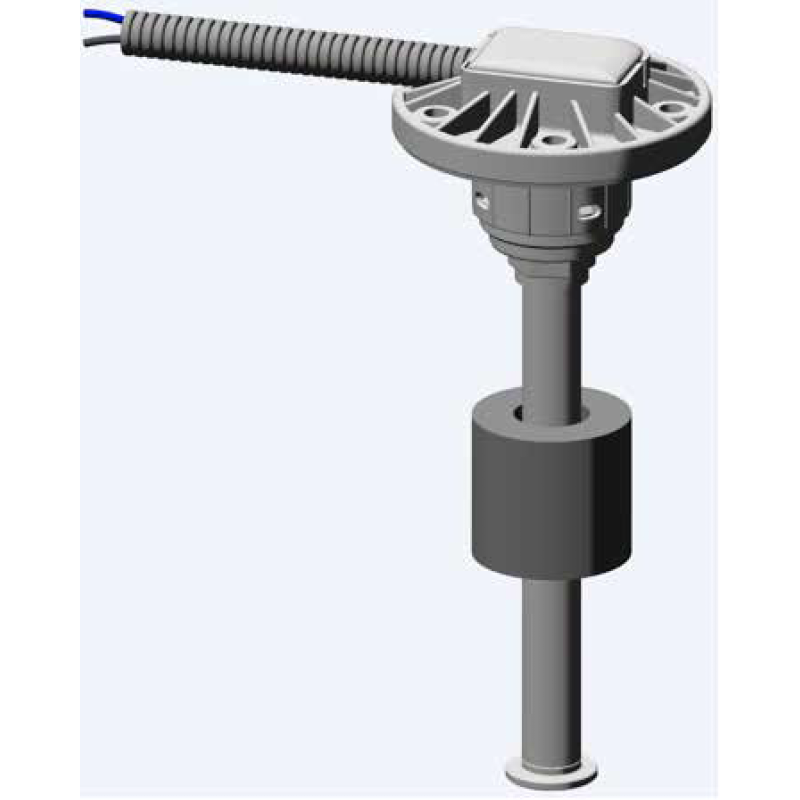

VDO 750 mm Tubular Fuel Dipstick - 54 mm SAE Flange

The 750 mm VDO tubular fuel dipstick measures the liquid level in the tank and transmits a resistive signal to a compatible gauge. It is mounted using a 5-hole SAE flange on a 54 mm mounting circle.

This reed switch probe outputs 91.0 ? ± 1.0 ? when empty and 1.0 ? ± 1.0 ? when full. Its length is fixed: it must be selected based on the available depth in the tank and the space required beneath the tube.

Technical Specifications

• Brand: VDO
• Manufacturer Part Number: 2910002234900
• Type: Tubular Reed Contact Level Sensor
• Tube length: 750 mm ± 2.0 mm
• Tube diameter: 40 mm

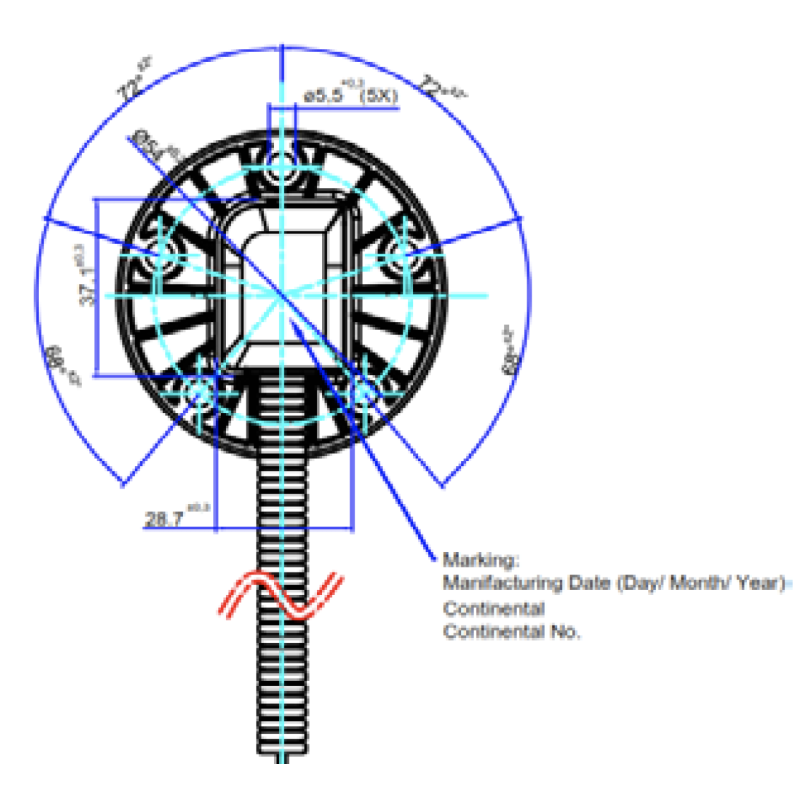

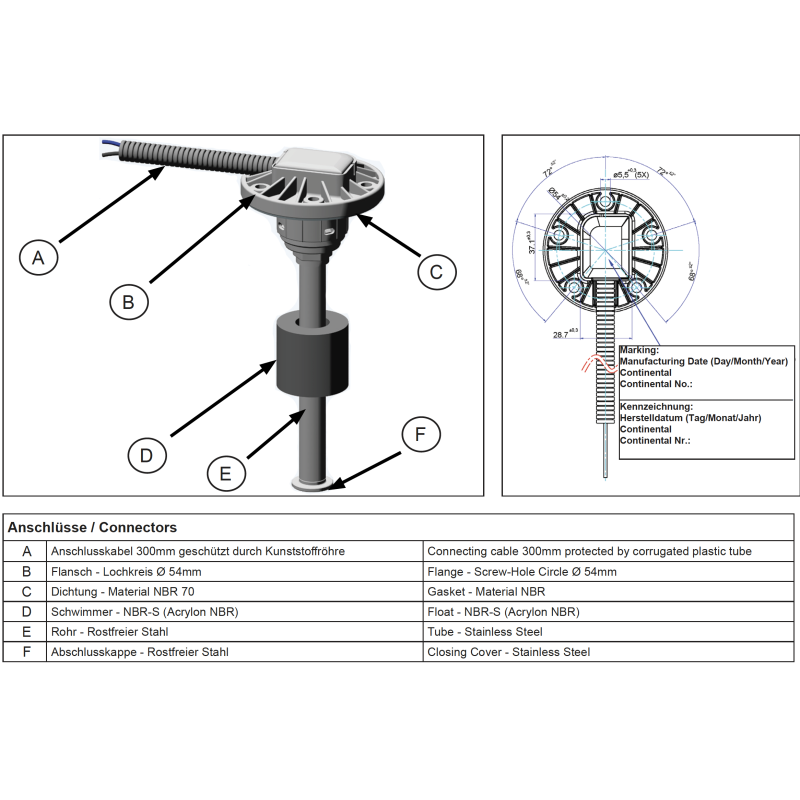

• Mounting: 5-hole SAE flange, 54 mm mounting circle
• Open-circuit resistance: 91.0 ? ± 1.0 ?
• Full-scale resistance: 1.0 ? ± 1.0 ?
• Operating voltage: 6 to 48 V
• Type of ground: Signal isolated from ground
• Alarm contact: None
• Adjustable length: No
• Documented fluids: Fuel and water
• Packaging: 1 probe
• Minimum mounting depth: 750 mm ± 2.0 mm + 4.0 mm

Compatibility and Mounting

Check the tank depth, the flange, and the direction of resistance change for the indicator. The 54 mm mounting circle is separate from the 40 mm tube diameter. Connection hardware must be provided separately.
