VDO Oil Pressure Sensor, 0–5 bar, M10x100, short tapered, with 0.5 bar alert

The VDO 0–5 bar oil pressure sensor transmits oil pressure data to a compatible instrument. Its short, tapered M10x100 connection determines the mechanical mounting on the circuit.

The 10 to 184 ? outlet must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. The 0.50 bar ± 0.15 bar alarm contact provides a function separate from the measurement, for controlling a compatible warning light.

Technical Specifications

• Brand: VDO
• Manufacturer Part Number: 360-081-030-002C
• Type: Oil pressure sensor
• Measurement range: 0 to 5 bar
• Thread: M10x100, short tapered

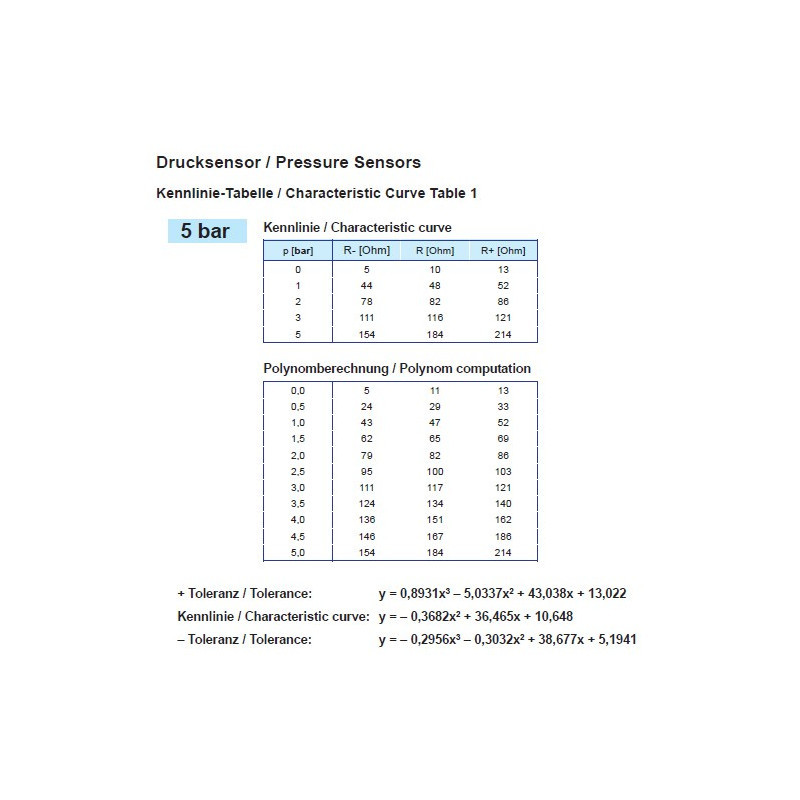

• Resistive signal: 10 to 184 ?
• Operating voltage: 6 to 24 V DC

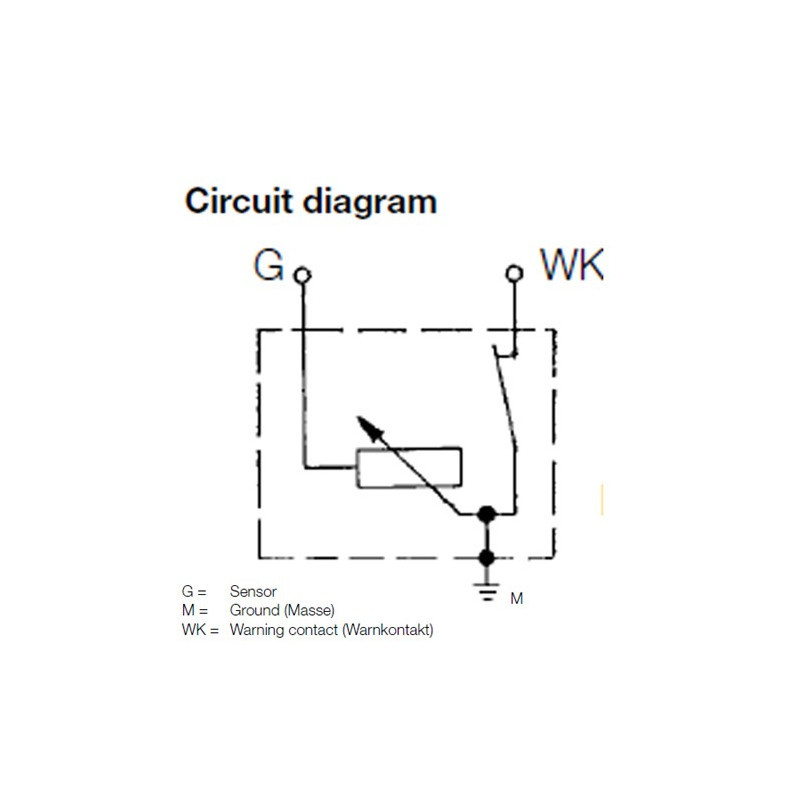

• Contact d’alerte : 0.50 bar ± 0.15 bar
• Type of grounding: Grounded through the sensor body

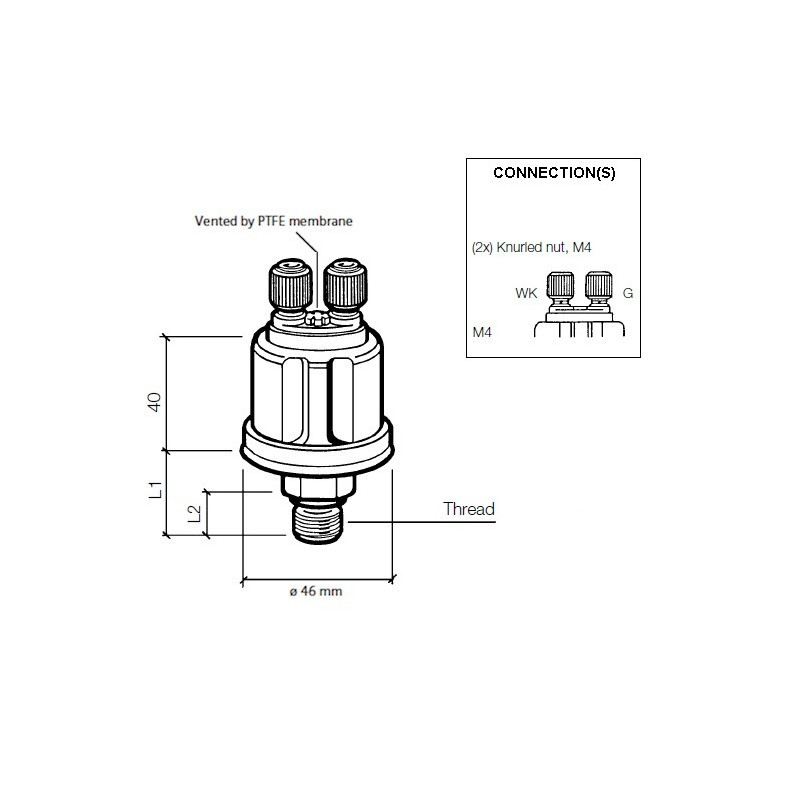

• Measurement connection: M4 plastic knurled nut
• Alarm contact connection: M4 plastic knurled nut
• Threaded length L2: 11 mm
• Thread and hex length L1: 19.5 mm
• Contact operation: Closes when pressure drops

Compatibility and Mounting

Check the short tapered M10x100 thread, the resistance curve, and the connection before mounting. The body must maintain electrical continuity with the circuit ground.
