VDO Cockpit Vision Rev-counter, Ø80 mm, 0 to 7,000 rpm
Reference:
V-CT333-015-001
Supplier Ref.:
333-015-001K

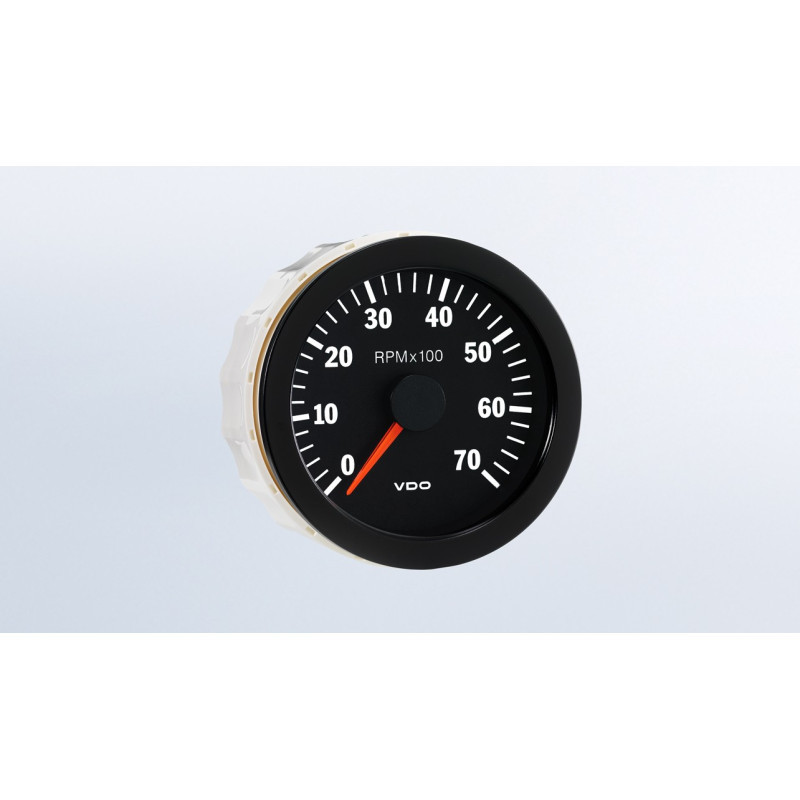

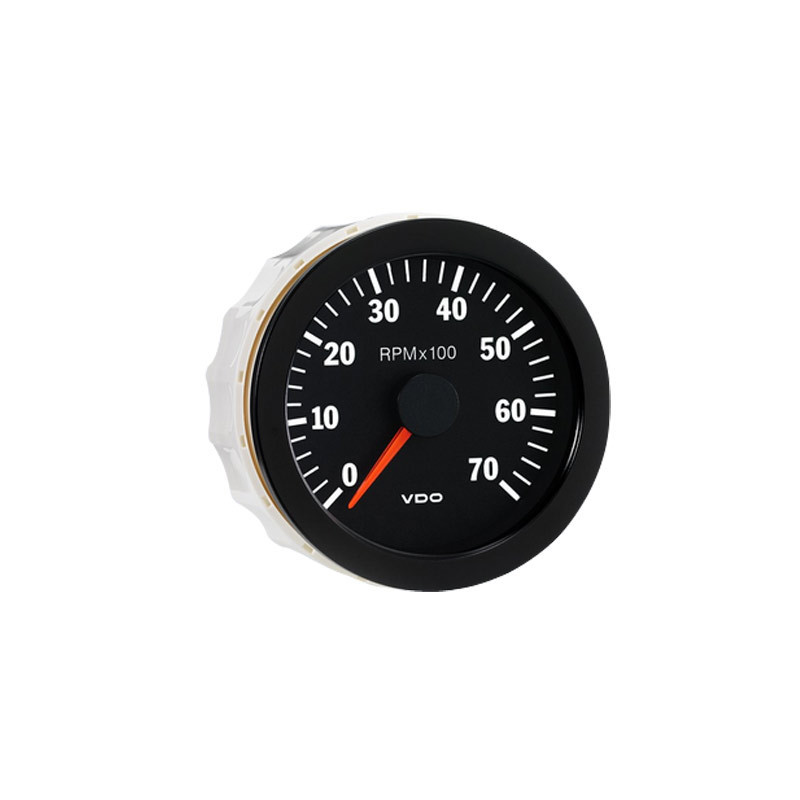

The VDO Cockpit Vision rev-counter displays engine revs on a black dial. Its 80-mm bolt hole diameter allows for integration into the dashboard. The display range is 0 to 7,000 rpm.
The RPM signal can be sourced from the documented generator us dynamo or firing connections. The configuration must match the puise source to ensure accurate readings.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: 333-015-001K
- Type: Rev-counter
- Range: Cockpit Vision
- Bolt hole diameter: 80 mm
- Display range: 0 to 7,000 rpm
- Operating voltage: 11 to 16 V DC
- Dial: Black
- Analog Signal: Tachometer Pulse Signal
- Installation depth: 91 mm
Compatibility and Mounting
Check the bolt hole diameter, the available space behind the dashboard, and the wiring diagram. Compatibility depends on the signal used; it cannot be determined solely based on the VDO brand.
-
Range in rpm0/7000RPM
-
Diameter in mm80
-
Background ColorBlack
