VDO Oil Pressure Sensor, 0–5 bar, M10x100, short tapered, with 0.7 bar alert

Oil pressure measurement with this VDO oil pressure sensor is based on a resistive signal ranging from 10 to 184 ?. This part number covers 0 to 5 bar and uses a short tapered M10x100 fitting.

The 10 to 184 ? outlet must match the electrical characteristics of the gauge or indicator being used. An identical display range is not sufficient to guarantee compatibility. The 0.70 bar ± 0.15 bar warning contact provides a function separate from the measurement, to control a compatible warning light.

Technical Specifications

• Brand: VDO
• Manufacturer Part Number: 360-081-030-004C
• Type: Oil pressure sensor
• Measurement range: 0 to 5 bar
• Thread: M10x100, short tapered

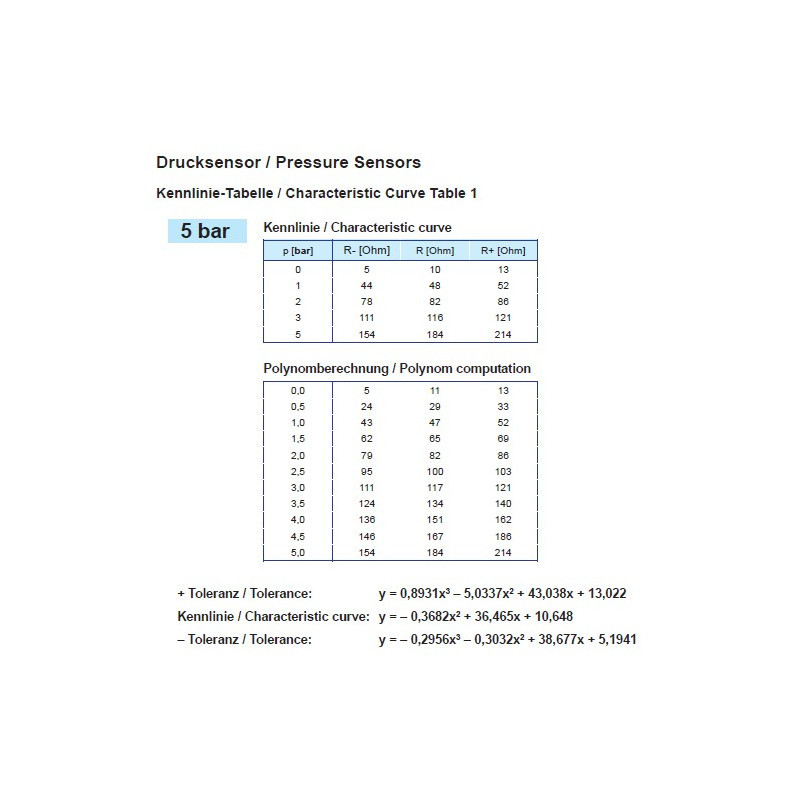

• Resistive signal: 10 to 184 ?
• Operating voltage: 6 to 24 V DC
• Contact d’alerte : 0.70 bar ± 0.15 bar

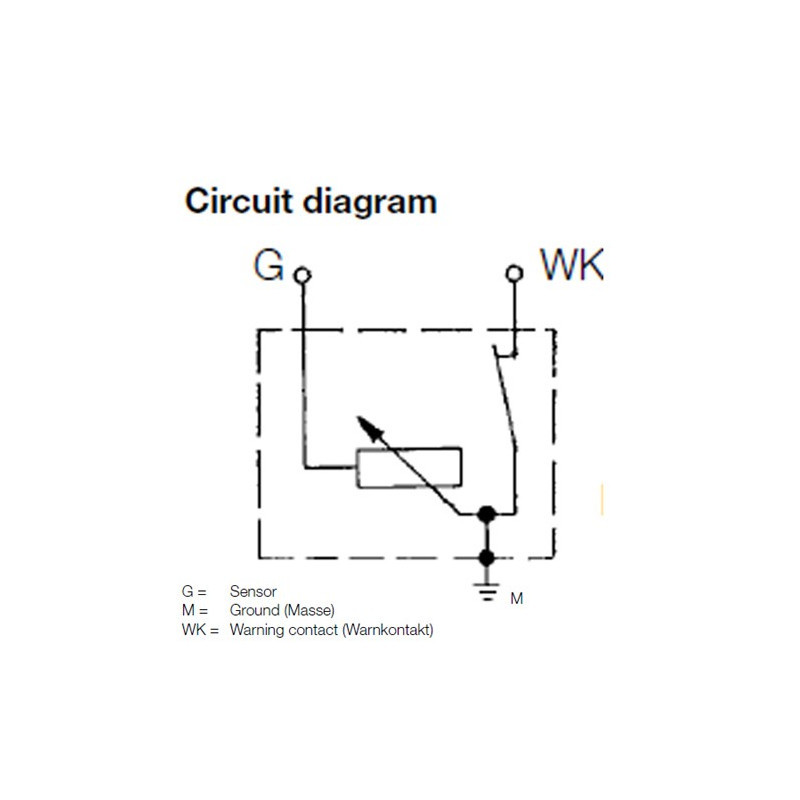

• Type of grounding: Grounded through the sensor body
• Measurement connection: M4 plastic knurled nut
• Alarm contact connection: M4 plastic knurled nut

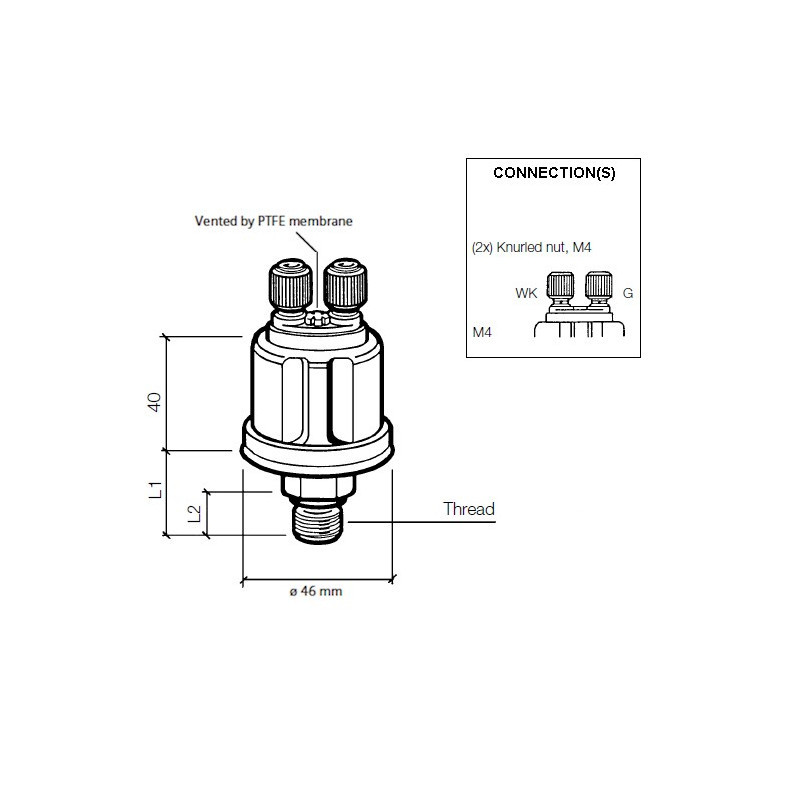

• Threaded length L2: 11 mm
• Thread and hex length L1: 19.5 mm
• Contact operation: Closes when pressure drops

Compatibility and Mounting

Check the short tapered M10x100 thread, the resistance curve, and the connection before mounting. The body must maintain electrical continuity with the circuit ground.
