VDO Oil Pressure Sensor, 0–10 bar, M10x100, 360-081-030-017C - V-030017 - 360-081-030-017C - 3661768217634

VDO Oil Pressure Sensor, 0–10 bar, M10x100, short tapered, with 0.9 bar alert

Reference: V-030017

Supplier Ref.: 360-081-030-017C

Learn more

CHF 63.90 Tax included

CHF 71.00 -10% Discount

Promotion ends in: 04 D 16 H 42 M 10 S

In stock

Unavailable in store (Promasens)

Shipped on 2026-10-12 from our warehouse

CHF 71.00 -10%

CHF 63.90 (tax incl.)

Earn 63 loyalty points

The VDO oil pressure sensor with a short tapered M10x100 connection is used to measure oil pressure. It operates in the range of 0 to 10 bar and outputs a resistive signal intended for a compatible gauge.

The 10 to 184 ? outlet must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. The 0.90 bar ± 0.15 bar warning contact provides a function separate from the measurement, designed to activate a compatible warning light.

Technical Specifications

Brand: VDO
Manufacturer Part Number: 360-081-030-017C
Type: Oil pressure sensor
Measurement range: 0 to 10 bar
Thread: M10x100, short tapered

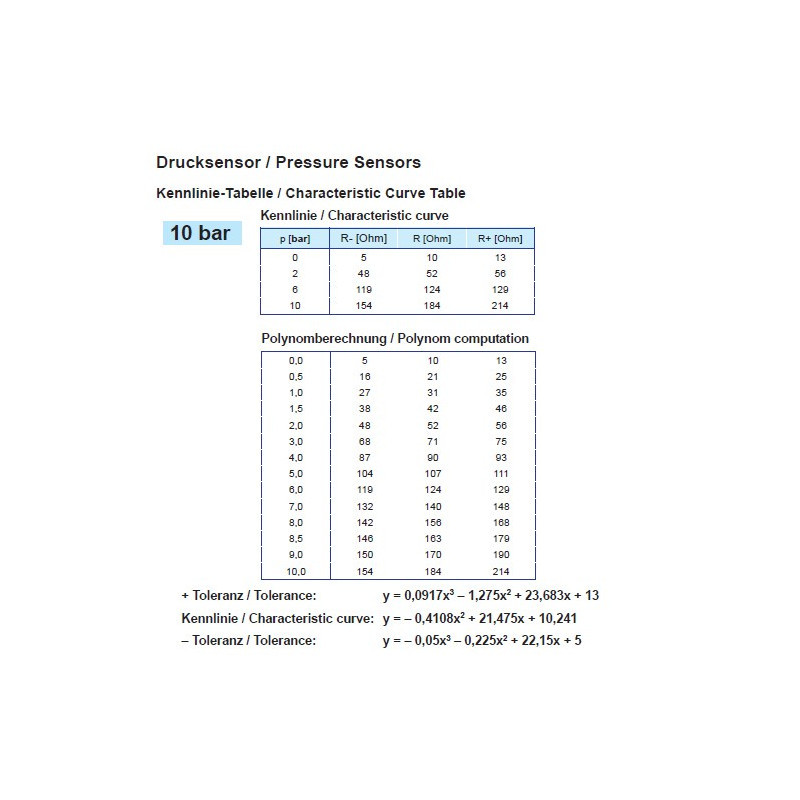

Resistive signal: 10 to 184 ?
Operating voltage: 6 to 24 V DC
Contact d’alerte : 0.90 bar ± 0.15 bar

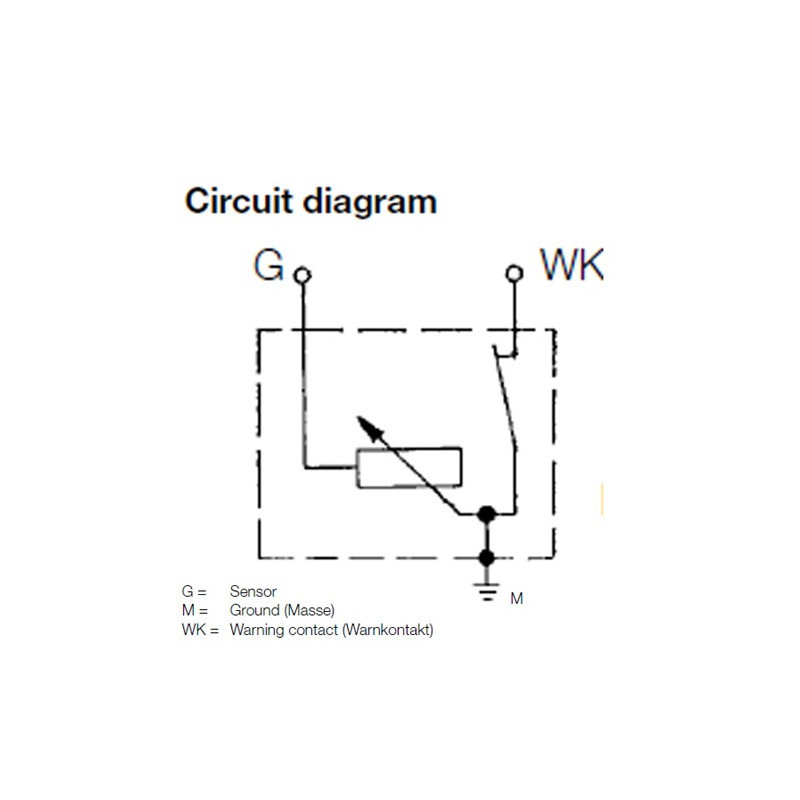

Type of grounding: Grounded through the sensor body
Measurement connection: M4 plastic knurled nut
Alarm contact connection: M4 plastic knurled nut

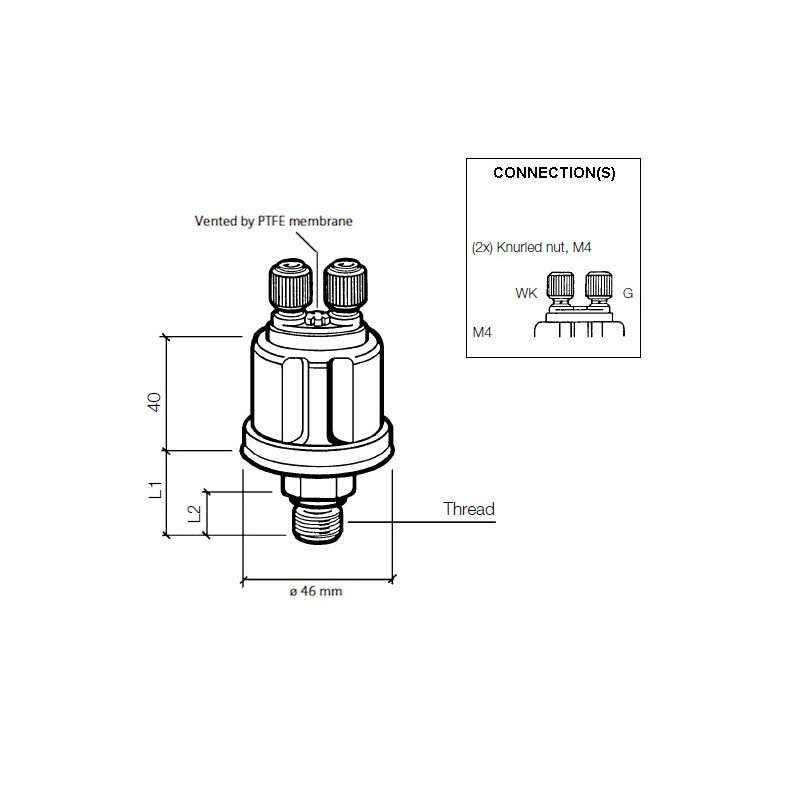

Threaded length L2: 11 mm
Thread and hex length L1: 19.5 mm
Contact operation: Closes when pressure drops

Compatibility and Mounting

Check the short tapered M10x100 thread, the resistance curve, and the connection before mounting. The body must maintain electrical continuity with the circuit ground.
