VDO Oil Pressure Sensor, 0–10 bar, M10x100, short tapered, with 2 bar alert

Reference: V-030041

Supplier Ref.: 360-081-030-041C

Learn more

CHF 108.90 Tax included

CHF 121.00 -10% Discount

Promotion ends in: 04 D 23 H 45 M 46 S

Available to order

Unavailable in store (Promasens)

Within 30 days on average.

CHF 121.00 -10%

CHF 108.90 (tax incl.)

Earn 108 loyalty points

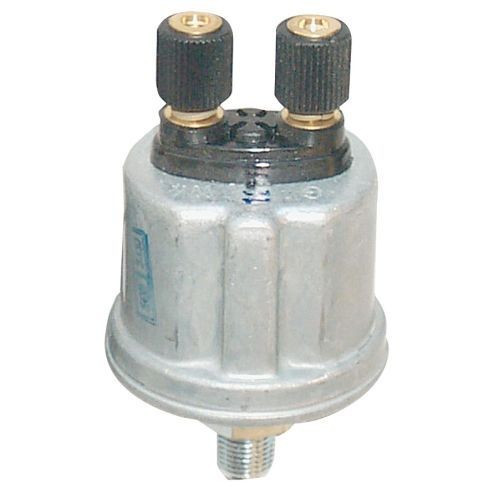

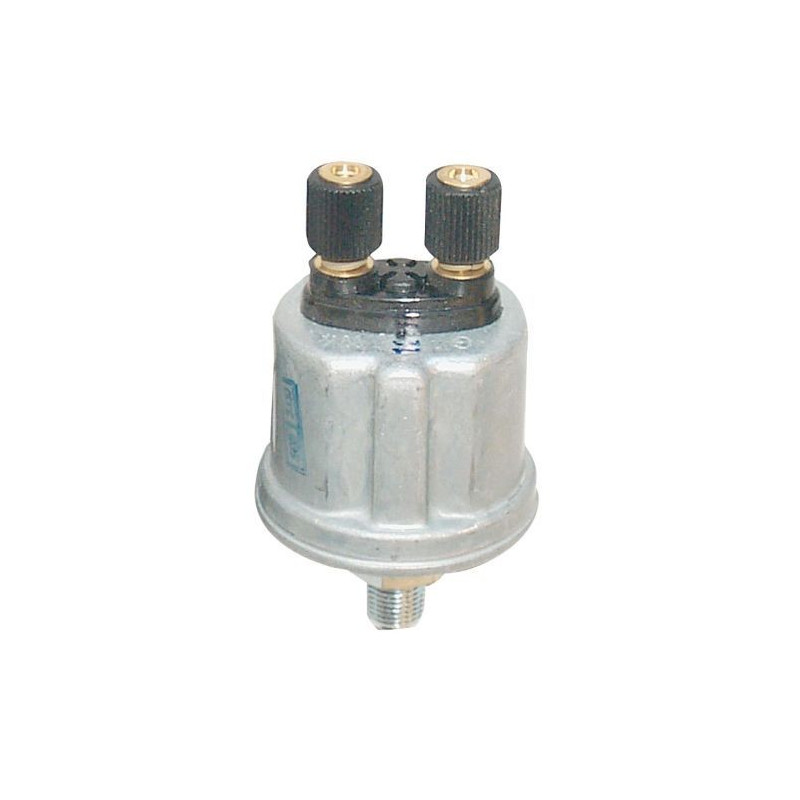

The VDO 0–10 bar oil pressure sensor transmits oil pressure data to a compatible instrument. Its short, tapered M10x100 connection determines the mechanical mounting on the circuit.

The 10 to 184 ? outlet must match the electrical specifications of the gauge or indicator being used. An identical display range is not sufficient to guarantee compatibility. The 2.00 bar ± 0.30 bar alarm contact provides a function separate from the measurement, to control a compatible warning light.

Technical Specifications

Brand: VDO
Manufacturer Part Number: 360-081-030-041C
Type: Oil pressure sensor
Measurement range: 0 to 10 bar
Thread: M10x100, short tapered

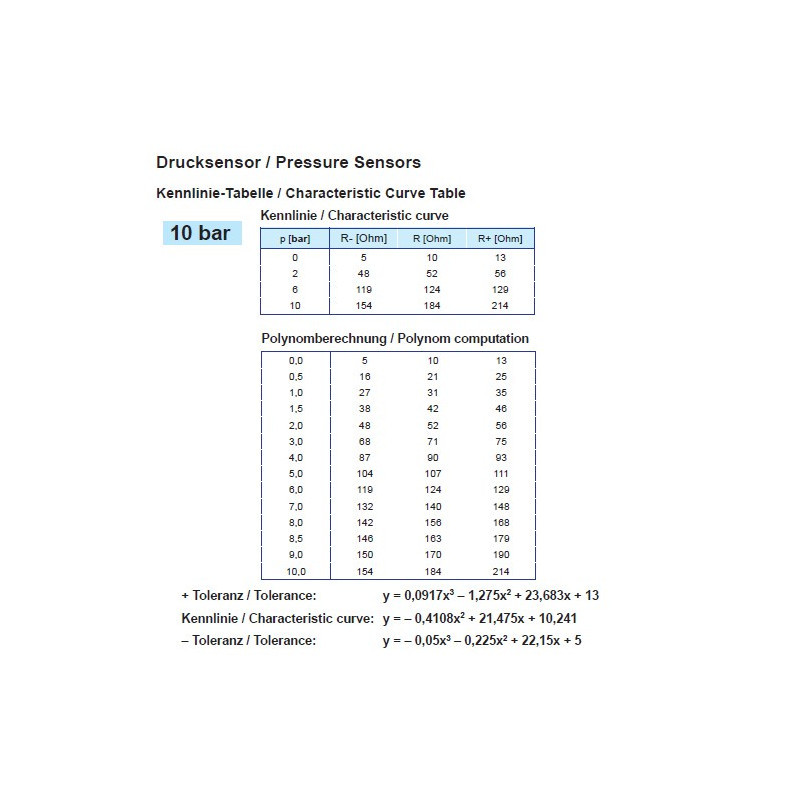

Resistive signal: 10 to 184 ?
Operating voltage: 6 to 24 V DC
Contact d’alerte : 2.00 bar ± 0.30 bar

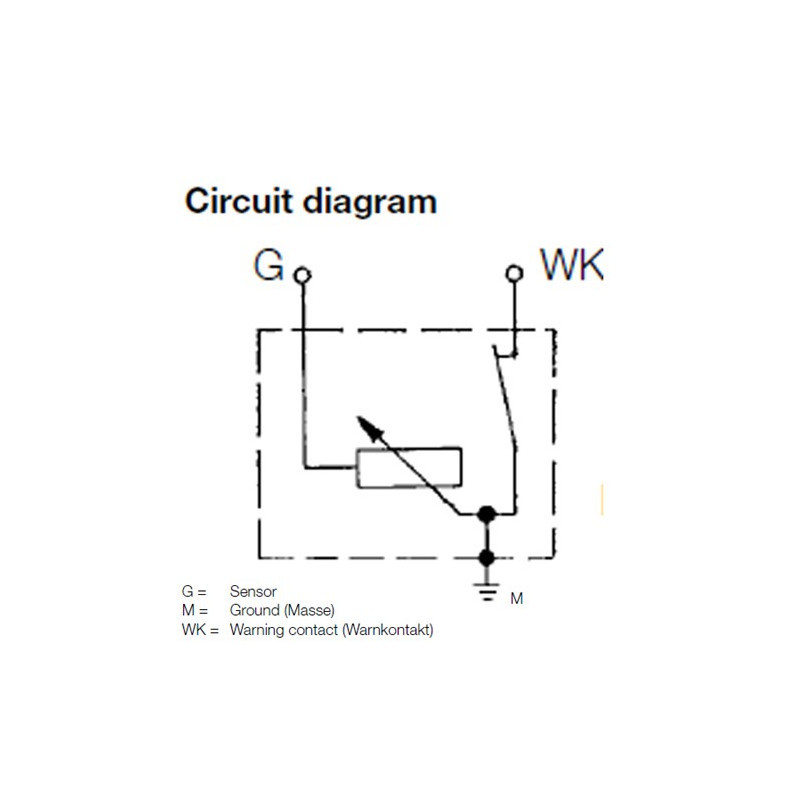

Type of grounding: Grounded through the sensor body
Measurement connection: M4 plastic knurled nut
Alarm contact connection: M4 plastic knurled nut

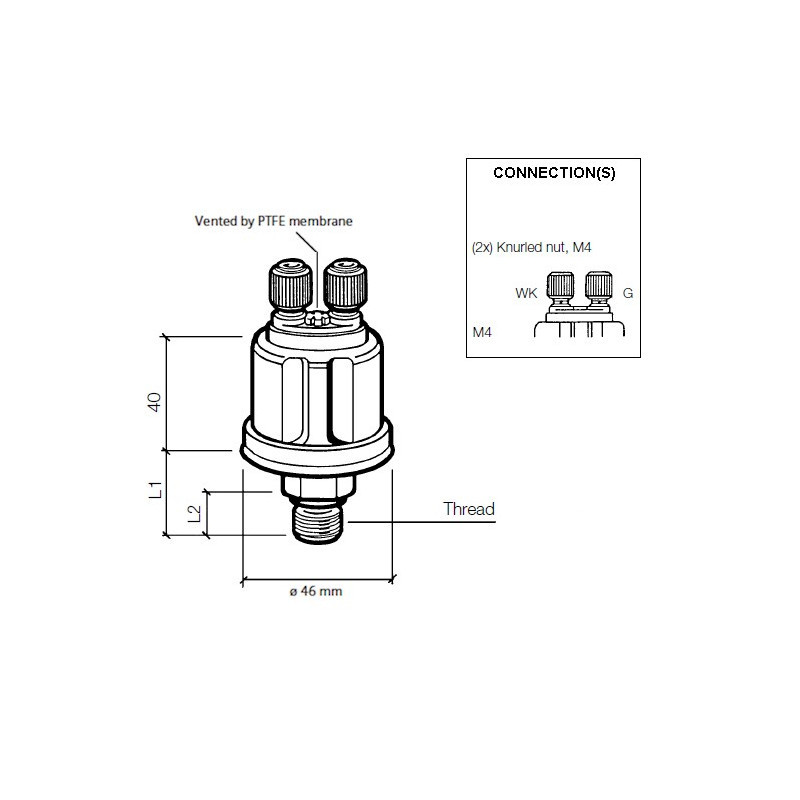

Threaded length L2: 11 mm
Thread and hex length L1: 19.5 mm
Contact operation: Closes when pressure drops

Compatibility and Mounting

Check the short tapered M10x100 thread, the resistance curve, and the connection before mounting. The body must maintain electrical continuity with the circuit ground.
