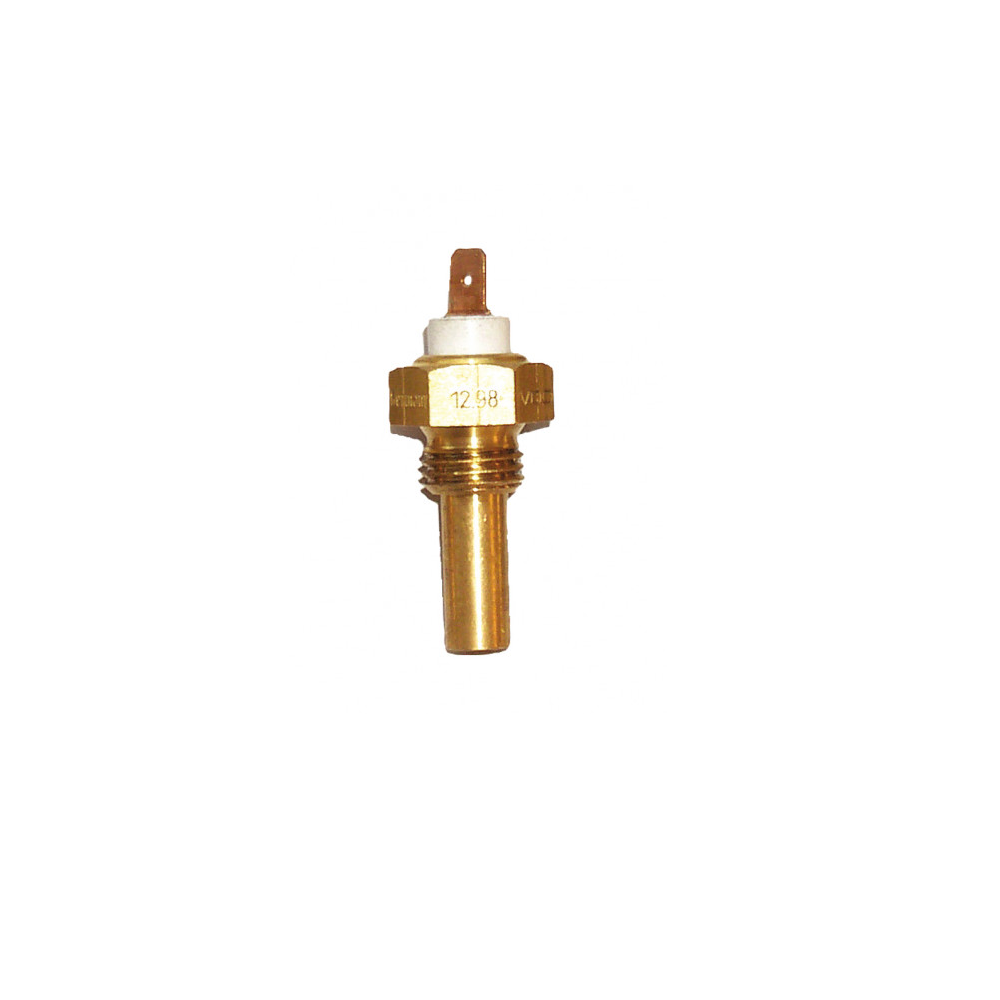

The VDO oil temperature sensor (+50 to 150 °C ) transmits oil temperature data to a compatible instrument. Its M10x100 connection determines the mechanical mounting on the circuit.
The outlet range of 322.8 to 18.6 ? must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. This version does not include an alarm contact.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: A2C1755380001
- Type: Oil temperature sensor
- Measurement range: +50 to 150 °C
- Thread: M10x100
- Resistive signal: 322.8 to 18.6 ?
- Operating voltage: 6 to 24 V DC
- Alarm contact: None
- Type of ground: Ground via the probe body

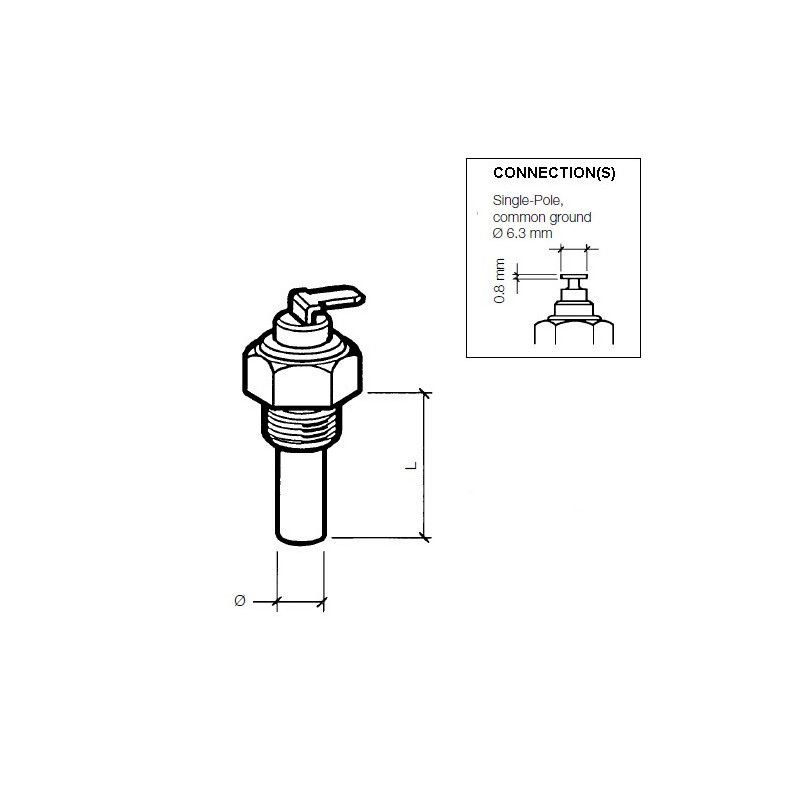

- Measurement connection: T-type flat plug, 6.3 x 0.8 mm
Compatibility and Mounting
Check the M10x100 thread, the resistance curve, and the connection before mounting. The probe body must maintain electrical continuity with the circuit ground.
