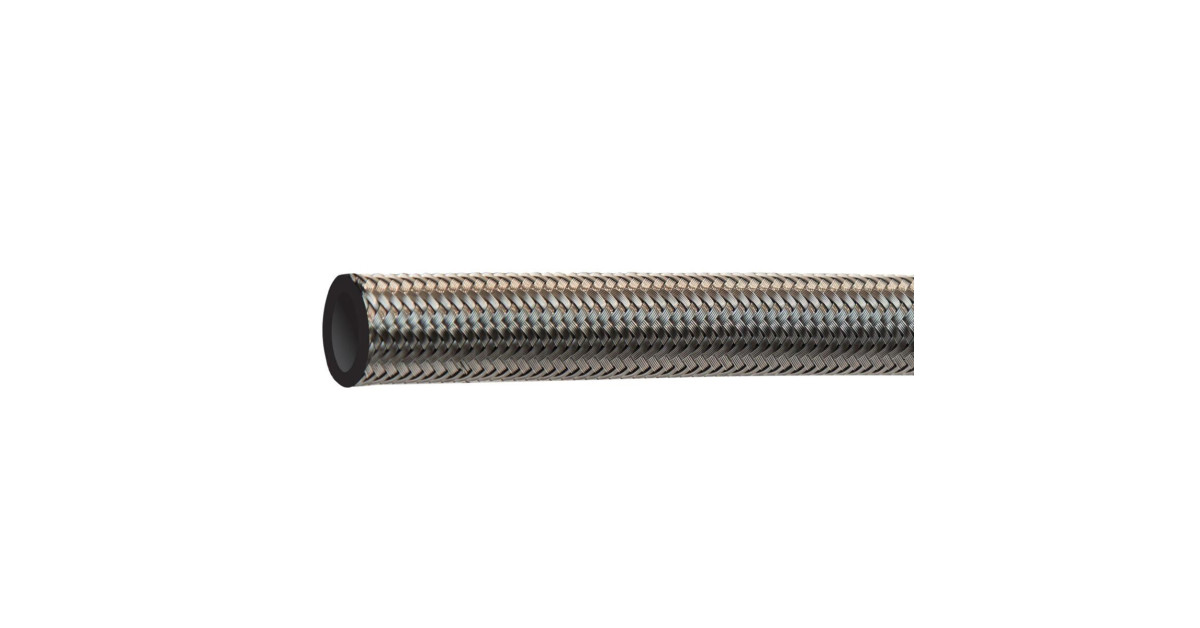

DASH 6 nitrile hose (per m)
The N type hose has many advantages. Indeed, because of a double stainless steel protection, it resists better to pressure, vaccum and external shocks.
The internal nitrile composition allows the use of all types of fuels: gasoline, diesel, ethanol, nitromethane, oil, refrigerants...
Note: The use of ethanol-blended gasoline (E5, E10, E85) causes premature wear of CPE-based hoses. It is recommended that they be replaced every 2 to 3 years and inspected regularly. For extended durability, we recommend the Goodridge 600 series Teflon hose G-600-6 with its specific fittings.
Technical datas:
Operating temperature : -49°C to +150°C
Inside diameter : 8.73 mm
Outside diameter : 13.89 mm
Working pressure (bar) : 69
Minimum burst pressure (bar) : 420
Radius of curvature (mm) : 63.5
Weight (kg/m) : about 0.201
Hose tested in the laboratory in accordance with ISO 1817 and SAE J30
- Compatible with SP98 and SP95-E5
- Proven resistance to pressure and temperature stresses
- Dimensional variation of less than 2%
- Excellent stability after aging in fuel
- Mechanical properties retained after testing
- Tests passed successfully
-
Dash Hoses06
-
Series200 Gasoline / Oil
